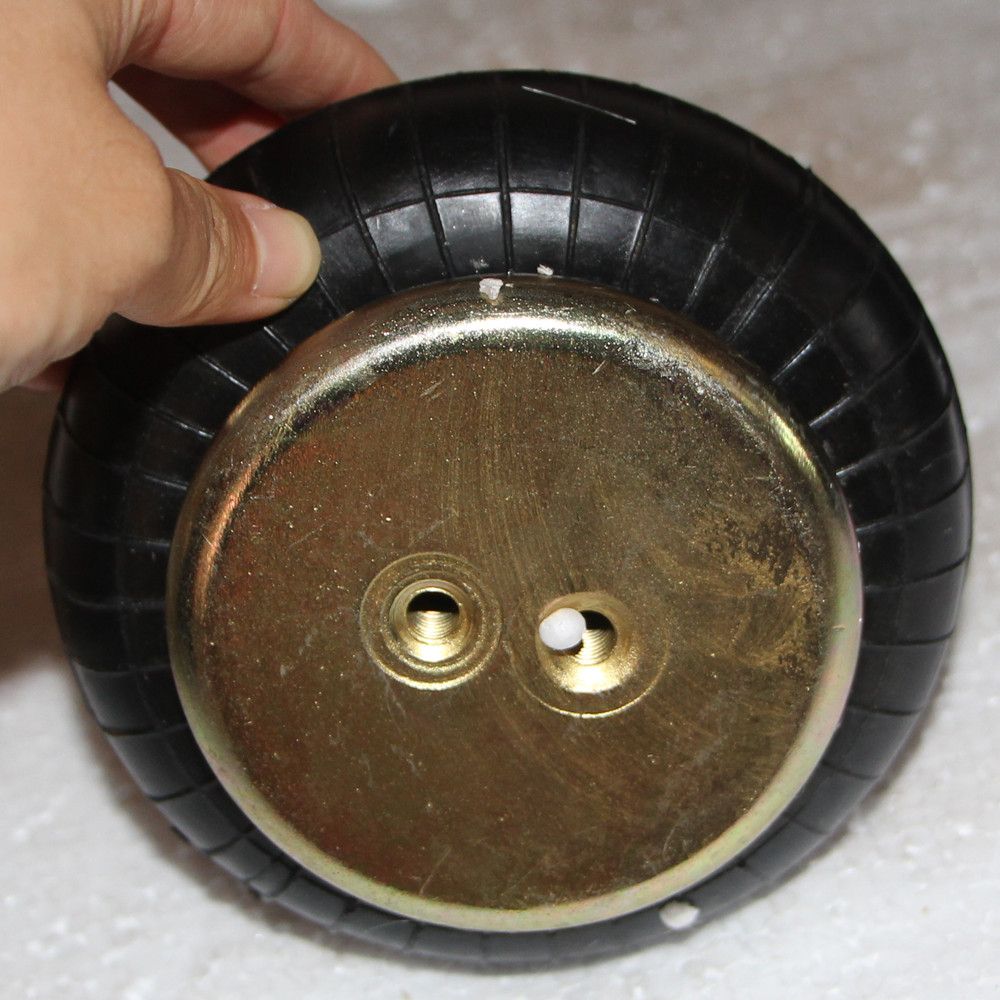

Contitech Fs40-6 Rubber Air Spring Goodyear 1b5-500 Air Suspension Airbag

Contitech Fs40-6 Rubber Air Spring Goodyear 1b5-500 Air Suspension Airbag
Price: US $ 15/Piece
Min Order: 100/Piece
Pay Type: L/C,T/T
Cross       Information
OEM     Information

Technical       data
CONTITECH :FS40-6Industrial machinesWeight :0.95kg
GOODYEAR:1B5-500 Design height :90mm
  Working stroke :50mm

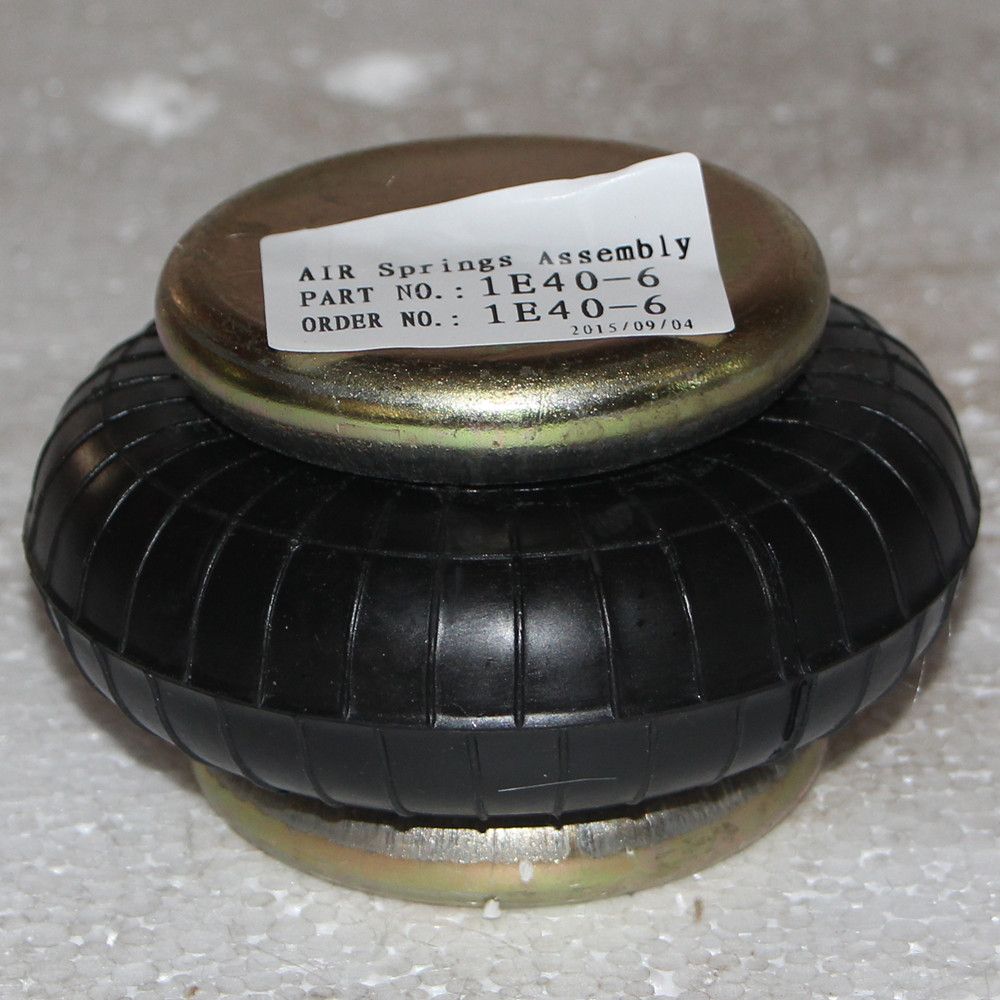

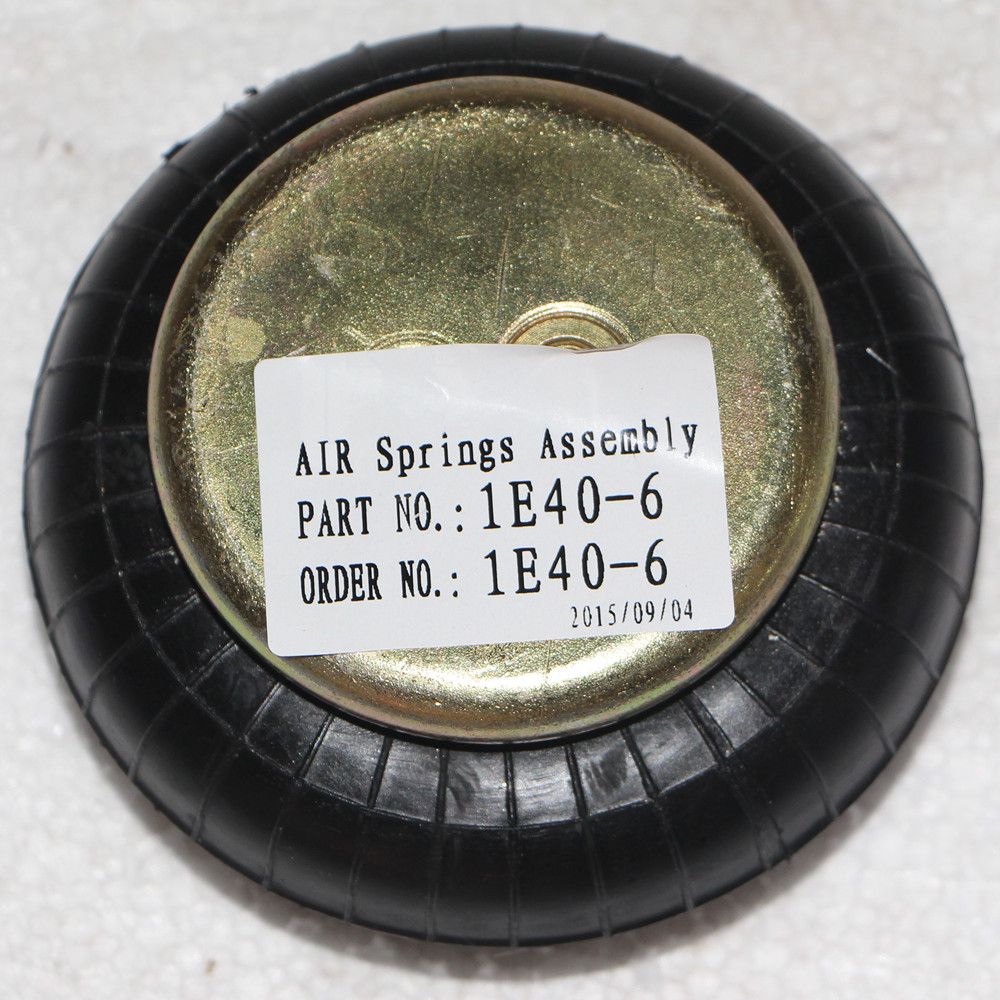

EAA RUBBER AIR SPRING 1E40-6


Deflection (Height min):55mm
Deflection (Height max):105mm
Measurement d max:140mm
Space required:160mm
Loading cap.at 3.1 bar:1.94kn
Loading cap.at 7.0 bar:4.40kn







Prod Model: 1E40-6
Weight: 0.95kg
Design Height: 90mm
Part: Air Spring
Position: Front
Type: Gas-Filled
Spring Type: Air Spring
Spring Material: Rubber
Damping Force Direction: Bidirectional
Brand: Eaa
We are Qingdao EAA Rubber Ind. Co., Ltd., who have great power and experience in supplying and producing all kinds of air spring and Tyre in China, now our product range reaches almost 300 types which are equivalent to Conti, firestone and Goodyear...Fit for bus, truck, trailer and industrial application. Meantime, we have exported all kinds of air spring to America, Europe and Southeast. Asia with premium quality and competitive price for the OEM and aftermarket.

We are always prepared to increase our range of products by particularly requested articles or to produce according to particular samples or drawings in accordance with our customers' requirements.

As a global strategy, we are planning to find more partners in oversea markets, so if any interest, please feel free to contact us.
