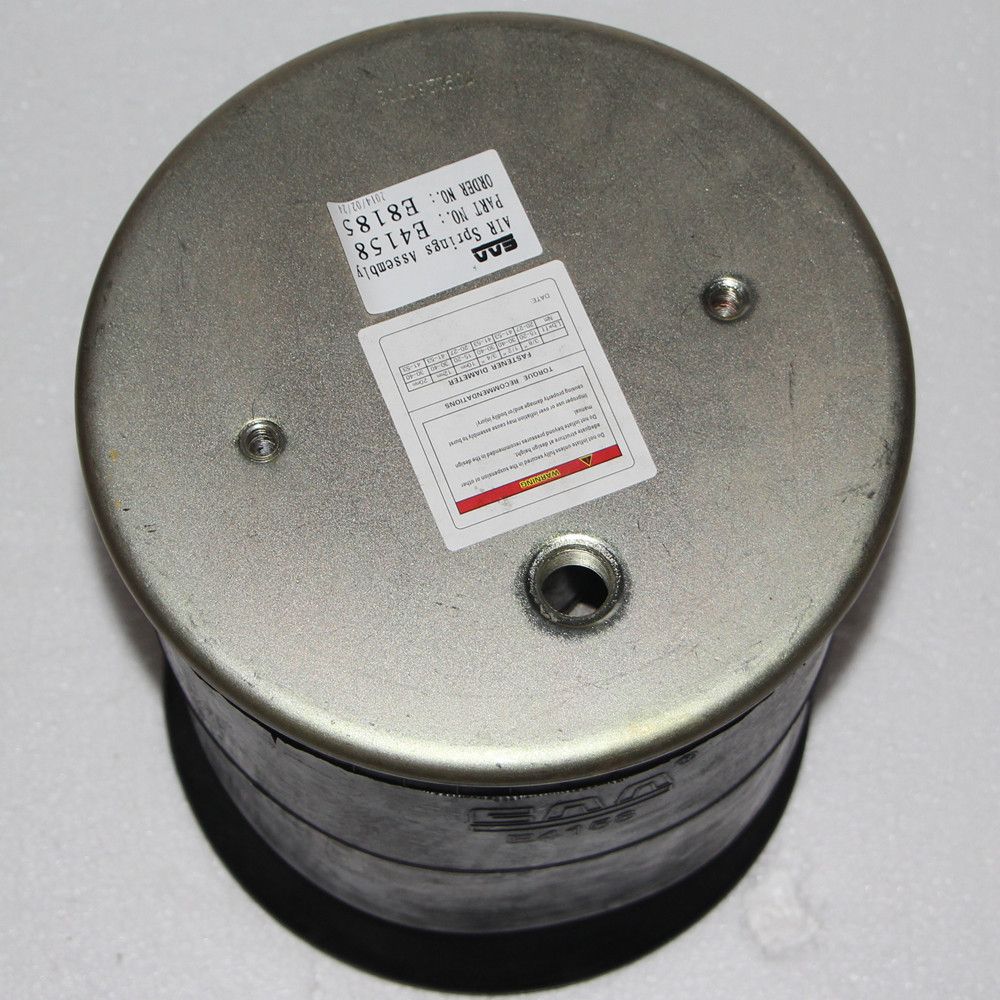

Name: Contitech 4158np03 Firestone W01m588185 Rubber Air Spring Air Suspension for Weweler
Brand: ibuyautoparts.com
SKU: 703440682
Availability: InStock
Rating: 4.8 (146 reviews)

Price:	US $ 38/Piece
Trade Terms:	FOB
Min Order:	50/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	E8185
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Weight:	5.35kg
Warranty:	12 Months
Measurement D Max:	295mm
Space Required:	315mm
Design Height:	400mm
Working Stroke:	385mm
Rubber:	Suspension

Product Description

Cross Information	OEM Information	Technical data
CONTITECH:4158NP03	WEWELER:US 06285F	Weight:5.35kg
FIRESTONE:W01-M58-8185	SCHMITZ TRAILER:750999	Measurement d max:295mm
GOODYEAR:1R12-749		Space required:315mm
		Loading cap .at.5.0bar:20.0KN
		Loading cap .at.7.0bar:28.5KN
		Design height:400mm
		Working stroke:385mm
		Deflection(Hight min):270mm
		Deflection(Hight max):655mm

1.Provide the right products for you in professional suggestion

2.Most considerate service for you

3.Supporting samples to check before order

4.One year warranty

5.Timely delivery

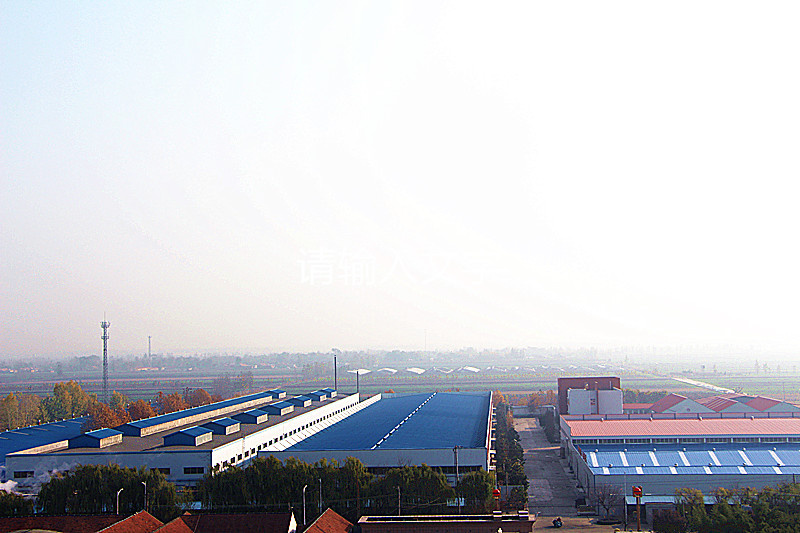

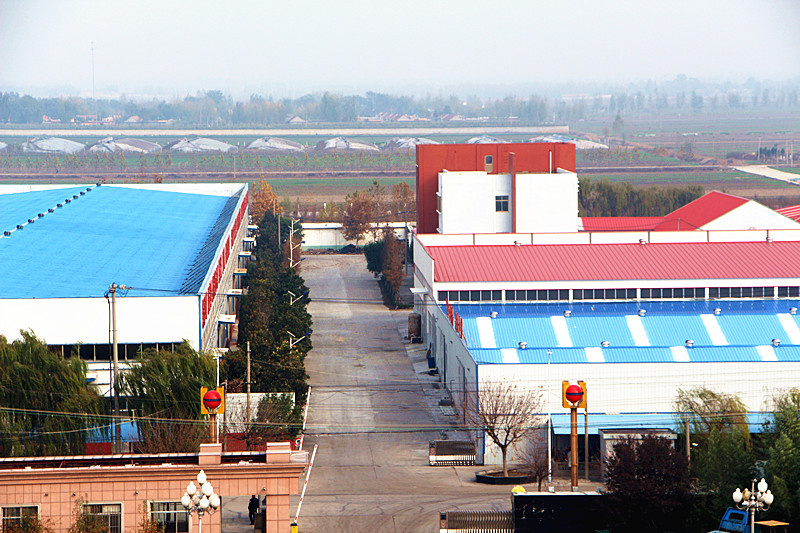

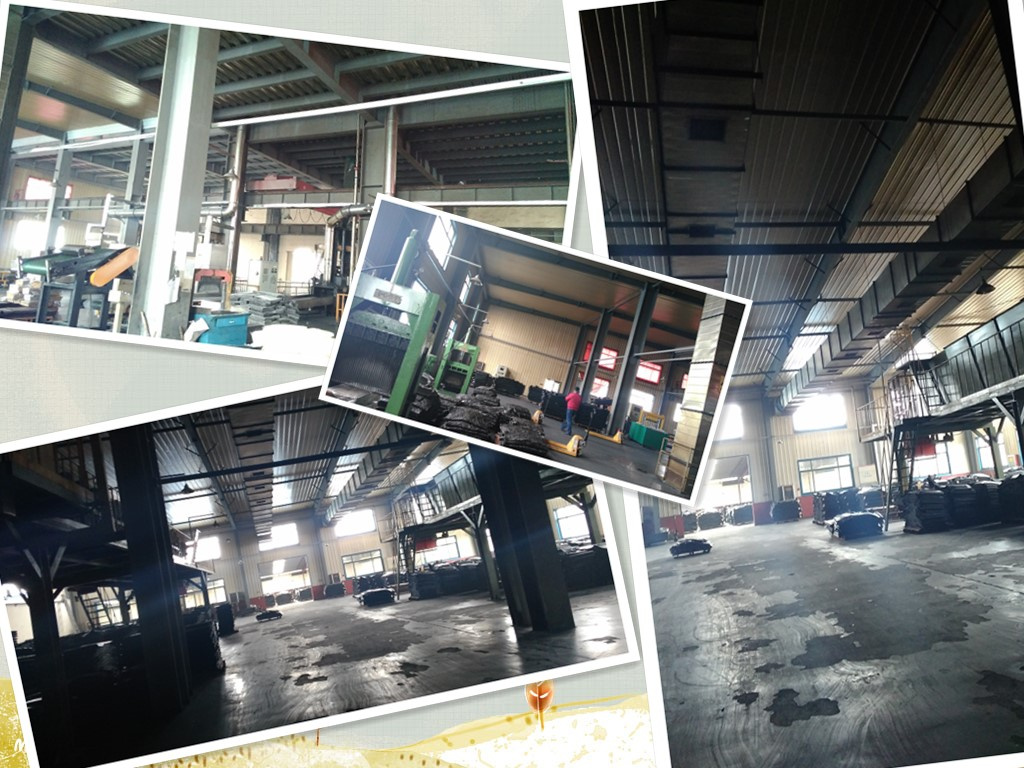

We are Qingdao EAA Rubber Ind. Co., Ltd., who have great power and experience in supplying and producing all kinds of air spring and Tyre in China, now our product range reaches almost 300 types which are equivalent to Conti, firestone and Goodyear...Fit for bus, truck, trailer and industrial application. Meantime, we have exported all kinds of air spring to America, Europe and Southeast. Asia with premium quality and competitive price for the OEM and aftermarket.

We are always prepared to increase our range of products by particularly requested articles or to produce according to particular samples or drawings in accordance with our customers' requirements.

As a global strategy, we are planning to find more partners in oversea markets, so if any interest, please feel free to contact us.
