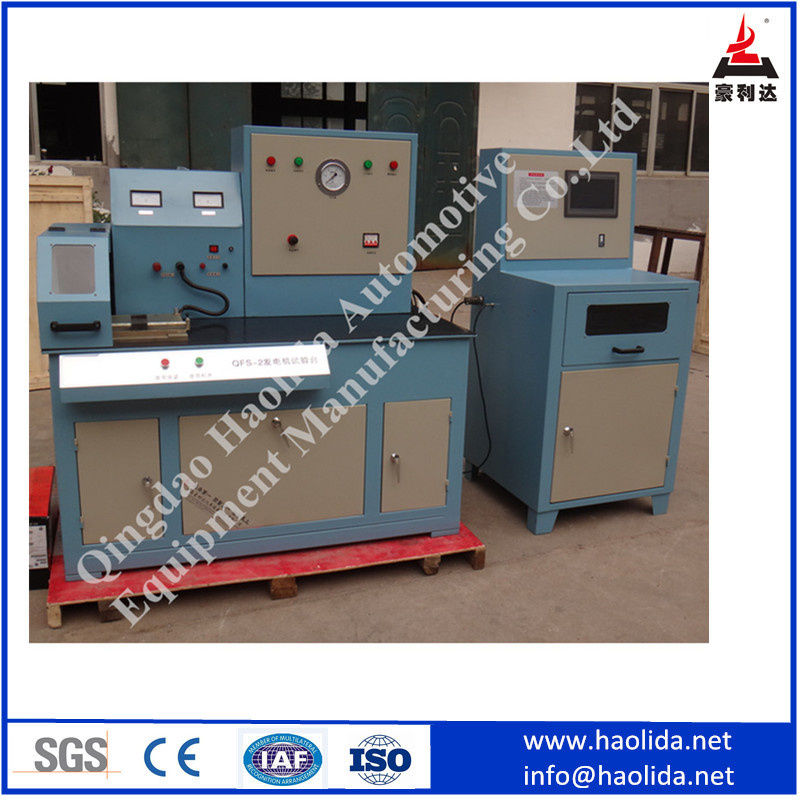

Computer Control Alternator Testing Machine

Computer Control Alternator Testing Machine
Price: US $ 1/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: T/T,Western Union
Prod Model: HLD-QFS-2A
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Name: Computer Control Alternator Testing Machine
Power: 380V 50Hz
Motor Power: 7.5kw
Certification: ISO
Update Method: by Hard Disk

Product Description


                           HLD-QFS-2A model Computer Control Alternator Testing Machine

General introduction

1.It can be used to test Alternators of various large vehicles (Truck, Bus, Tractor, Excavator, trailer,etc);
2.Test Alternator (Generator): 5.5KW, 0-200A, 12V or 24V, 10000RPM
    Test item: Speed, Voltage, Current (Load or no-load)

Advantages:

1.It uses variable frequency speed regulation
2.It displays result by digital instrument, the test result is accurate and can be read directly.
3.It is easy to learn and operate.
4.It is with fuse protection.
5.It is with indicator lamp following each step and warn you the problems.
6.It does not need battery to test alternator, it can excite voltage itself.
7.High quality speed sensor.
8.It possesses high control sensitivity and strong controllability.
9.It is matched with PLC computer to operate, display, save & print test results and curves.

Technical parameter:

Model no
HLD-QFS-2A
LanguageEnglish/Spanish, etc
MaterialMetal plate
PaintingPowder painting, durable and beautiful
ColorBlue
Voltage380V 50 Hz 3P
Motor power7.5KW
Motor speed0-3600Rpm
Frequency converter power11KW
Alternator testing:
Maximum power7.5KW
Maximum current200A
Maximum voltage50V
External batteryNo
Excitation voltage12V/24V
Speed rangeNo load:0-12000Rpmad;  Load:0-10000Rpm
Load modeElectronic module (advanced) DA 0-200A  DC 0-50V
Motor drive styleBelt connect
Clamp stylePneumatic clamp
Type of RPM regulation and load regualtionRotary
Accessories:
Accessory wires, belt, fuses, etc.
Others you may want to know:
MOQ1set
Warranty period12 months
Payment termT/T 50% in advance, the balance should be paid before delivery  (negotiable)
Delivery time30 days after receiving downpayment
HS code90312000.90
Packing sizes1870*1020*1660mm=3.17CBM

Why Choose us:

1.32 years' design,development and produce experience
2.Professional R&D team
3.Strict QC
4.A good pre-sale and after-sale service
5.Can design and make according to customer's requests
Established in 1984, Qingdao Haolida Automotive Equipment Manufacturing Co., Ltd is a professional manufacturer and exporter that is concerned with the design, development and production of automobile maintenance and test equipment. We obtained tens of national patent on some related products. Our main products are automobile test benches, such as electric universal test bench, alternator/generator test bench, starter test bench, engine test bench, turbocharger test bench, air compressor test bench, braking system test bench, steering gear and power pump test bench, AC compressor test bench, clutch test bench, automatic gearbox/transmission test bench, etc, brake shoe riveting and grinding machines, electric/ manual hydraulic presses, auto pit jack/lift, and so on. We can also design and make specially according to customers' request.

We are located in Qingdao city, Shandong province, with convenient transportation access. Our factory is thirty minutes' drive to Qingdao airport, and two hours' drive to the loading port.

All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world. We have passed the ISO9001-2008 international quality system authentication. We gained many honors in automobile maintenance and repair industry, we are a standing member of the China Automobile Maintenance and Repairing Equipment Trade Association, One of the ten most influential company in automobile maintenance and repair industry, we are also a designated factory by General Armament Department of CPLA.

Our well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfaction. Our sales network covers North America, South America, European, South Africa, Russia, Asia, Middle East, etc.

If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are also sincerely looking for steady and long-term cooperative local agents in different areas. We are looking forward to forming successful business relationships with new clients around the world in the near future.
