Common Rail Diesel Injector Test Bench

Name: Common Rail Diesel Injector Test Bench
Brand: ibuyautoparts.com
SKU: 722162192
Availability: InStock
Rating: 4.3 (38 reviews)

Price:	Negotiableset
Min Order:	1set
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Product Show

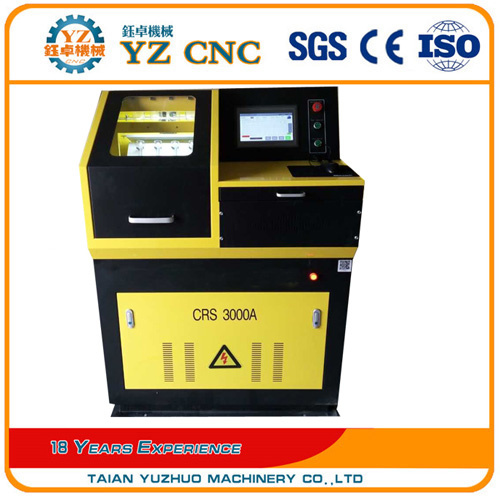

1. Product Pictures of Common rail diesel injector test bench

Common rail injector test bench is the special device to test the performance of high-pressure common rail injector assembly,
it adopts BOSCH original common rail pump to provide 0~2000 bar of rail pressure,
it can test common rail injector of main producers(BOSCH,SIEMENS,DELPHI,DENSO).
CHARACTERISTIC
1. Main motor drive adopts the frequency change to adjust the speed.
2. It is installed BOSCH original common rail pump to provide 0~2000 bar of rail pressure.
3. The drive signal can be adjusted.
4. Protection function of short-circuit.
5. The rail pressure can be tested in real time, it contains the high-pressure protection function.
6. Pulse and frequency of the injector drive signal can be adjusted.
7. The injection time can be setted.
FUNCTION
1. Test the max. oil quantity of high-pressure common rail injector.
2. Test the cranking oil quantity of high-pressure common rail injector.
3. Test the backflow oil quantity of high-pressure common rail injector.
4. Test the average oil quantity of high-pressure common rail injector.
5. Set the high-pressure common rail injector' injection state and oil quantity measurement.
Technical Parameter:
Test frequency of injector 50-3000rpm
Pulse width: 0.1-200ms
Test injection time 1-300s
Rail pressure: 0-200mpa
Graduate: 120ML
Input power: 380V/50HZ/3Phase or 220V/60HZ/3Phase
Fuel temperatue 40°C
Overall dimension: 1200MM×800MM×1600MM
Weight : 280KG

OUR EXHIBITION

OUR COOPERATION CUSTOMERS

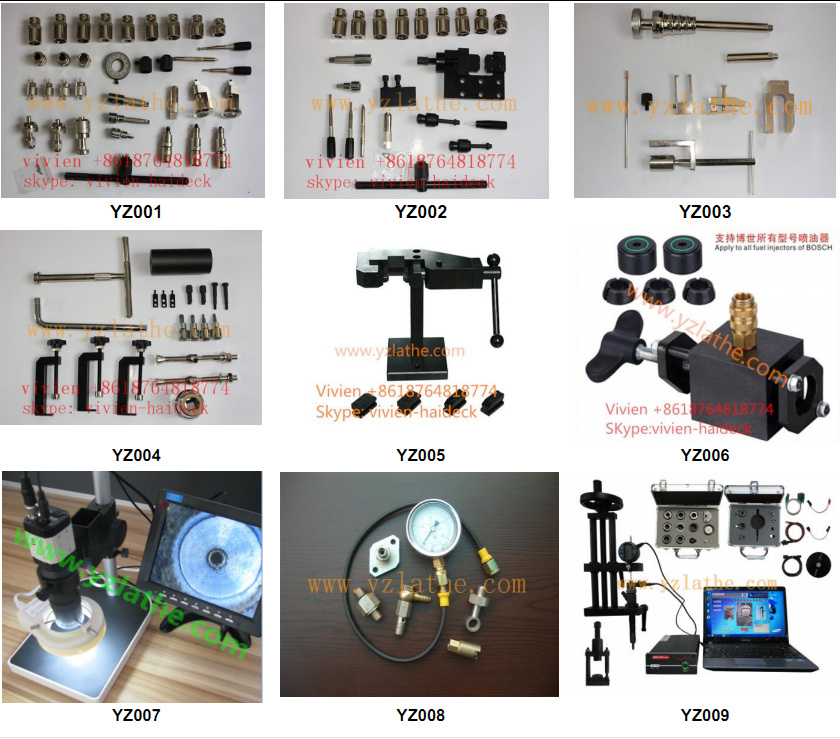

WE ALSO CAN SUPPLY SPARE PARTS AND REPAIR TOOLS

Prod Model:	CRS3000A
Product Name:	Common Rail Diesel Injector Test Bench
Output Power:	4kw
Speed:	0-4000rpm
Tank:	40L
Supply Power:	380V/220V ,3 Phase
Weight:	400kg
Pressure:	1850bar
