Common Rail Diesel Injector Test Bench, High - Precision Flow Meter

Name: Common Rail Diesel Injector Test Bench, High - Precision Flow Meter
Brand: ibuyautoparts.com
SKU: 825828875
Availability: InStock
Rating: 4.3 (75 reviews)

Price:	US $ 8000-18000/Set
Min Order:	1/Set
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Competitive Advantage:
Power: Electronic
Usage: Auto Testing Machine
Color: blue yellow or on request
Cooling method: Water Cooling or Fan Cooling
Temperature range: 30-50ºC

Main functions:
1. Test common rail injectors of CUMMINS, BOSCH, DELPHI, DENSO
2. Check the sealing of CR injectors
3. Check the backflow and the injection volume under full-loaded status
4. Test the injection volume at the emission point
5. Test the flow volume of idling status
6. Test the pre-injected volume of the CR injectors
7. Clean the injectors while testing
8. Testing data could be saved and printed
9. Standard parameters settable

Technical Specification:

1. Power	4KW
2. Variable frequency motor speed range	1000rpm
3. Pressure control range	10-2200bar
4. Pressure control accuracy	±1bar
5. Injection frequency setting range	100-1000 Times/min
6. Metering range	20ml
7. Fuel tank capacity	25L
8. Filter accuracy	5µm
9. Environment Temperature range	25-26ºC

Technology Specifications:

1) Usage:
after sale common rail injector and pump inspection repair and re manufacture.

2)Test content :

Injector test performance is similar with IFT205;Pump test performance is as following:

BOSCH CP1,CP2,CP3,CB18,CB28;

DENSOHP0,HP3,HP4;

DELPHI DFP1.1/1.2;

CAT320D;

Chongqing oil pump factory CB2B916A.

3) Application: CR injector test for Cummins and other brands

4) KPI:
Test period: 5min
Test accuracy on injection flow of full load: ±0.5%
Max. rail pressure: 220Mpa
Rail pressure regulation: ±1Mpa
Volume: L*W*H=950*780*1320mm
Weight: 250KG

5) Characteristics:
International imported flowmeter
Leading constant temp.&pressure system to ensure data precised
Cummins specified test specification

Services provided from Wabtec for customer

1)The latest version of the control software and drivers

2)Equipment instructions and all kinds of injector maintenance manual

3)One year free warranty, efficient after-sales service.

4)Provide professional training in factory.

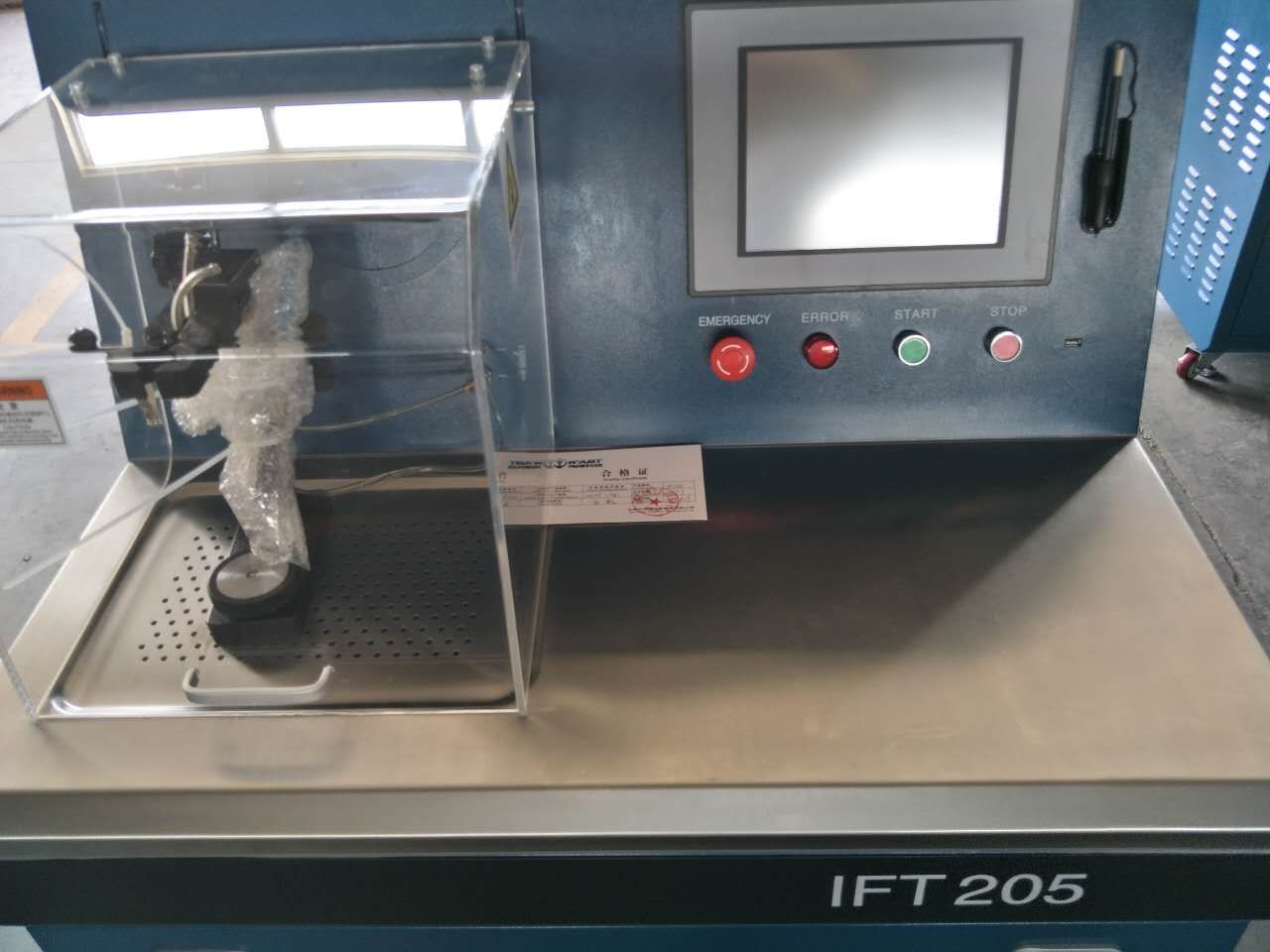

Prod Model:	IFT-205
Application:	for Injector Testing
Range:	After Service Market
Main Voltage:	3phase/380V
Certification:	ISO
Update Method:	by Internet
Testing Equipment Type:	Common Rail Pump&Injector Test Bench

WABT is committed to provide advanced technical solutions for electronic fuel injection and after treatment system.

WABT has two main business scopes:

1. Intelligent Equipment: Proffessional testing bench and manufacturing equipment for diesel common rail fuel injection system and after-treatment system.

2. Engineering service: Engine&Vehicle consulting and calibration service, precise maintenance intergration solution for after-sales.

WABT is recognized ad a leading enterprise in this area of China.

WABT firmly believe: Accurate testing → Lean production→ Precise matching → Efficient maintenance is a key chain needed for fuel injection manufacturers, engine and vehicle manufacturers, maintenance service station, car owners and even the energy saving and environment-friendly society.
