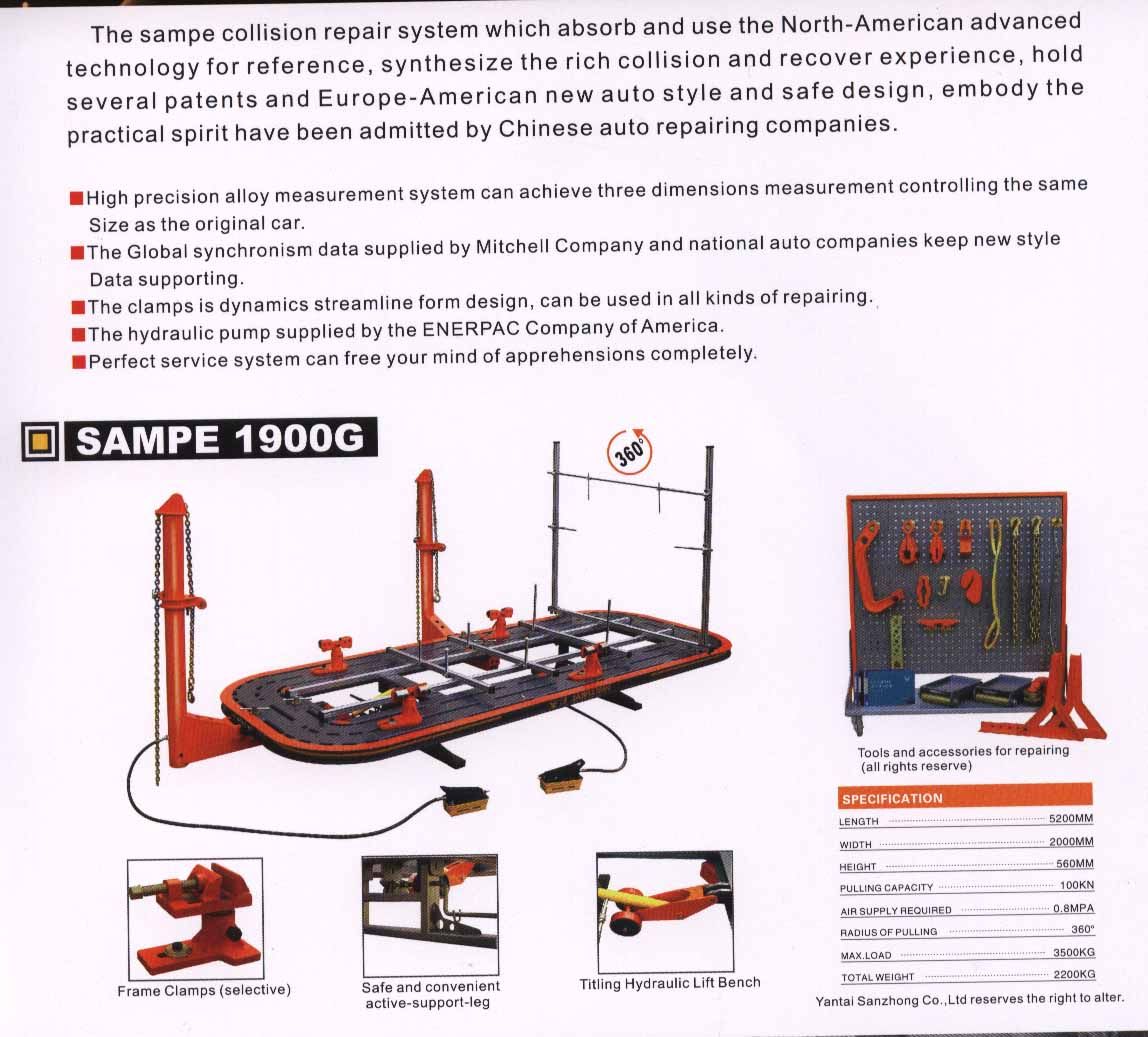

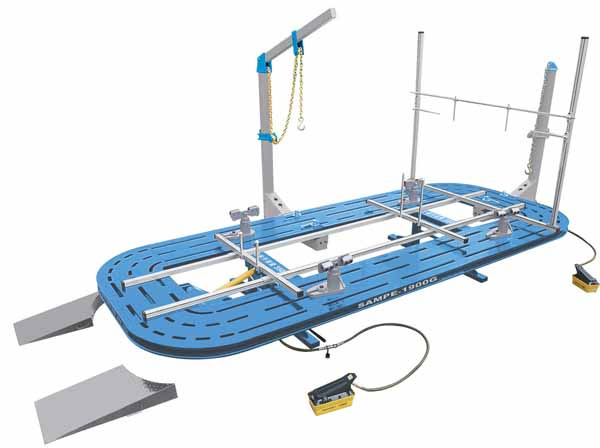

Model: Sampe1900g
Product features
1. Towers move 360 degrees around the frame bed;
2. Tubular steel construction for maximum strength;
3. Adjustable collar on tower performs both straight and angle pulls;
4. Tilting platform for easier loading and unloading;
5. Deck length: 5200mm, deck width: 2100mm, deck height: 520mm;
6. Lifting capacity: 3500kg;
7. 10 tons of pulling tower;
8. Comes with 2 pneumatic pumps, loading ramps and clamping system.
Specifications
Length: 5200mm
Width: 2100mm
Height: 520mm
Pulling capacity: 100kn
Air supplied required: 0.8mpa
Radius of pulling: 360°
Max. Load: 3500kg
Total weight: 2200kg
Model: Sampe 2200
Product features
1. GB no. 14 flange beam;
2. Towers move 360 degrees around the frame bed;
3. Adjustable collar on tower performs both straight and angle pulls;
4. Vertical lift;
5. Deck length: 5200mm, deck width: 2000mm, deck height: 360mm to 600mm;
6. Lifting capacity: 3500kg;
7. 10 tons of pulling tower;
8. Comes with 2 pneumatic pumps, loading ramps and clamping system;
9. Equipped with 2ND lift.
Specifications
Length: 5500mm
Width: 2100mm
Height: 360-600mm
Pulling capacity: 100kn
Air supplied required: 0.8mpa
Radius of pulling: 360°
Max. Load: 3500kg
Total weight: 2600kg
Model: Sampe 3000
Product features
1. Unique deck design for downpulls wherever you need them;
2. Towers move 360 degrees around the frame bed;
3. Adjustable collar on tower performs both straight and angle pulls;
4. Vertical lift;
5. Deck length: 5500mm, deck width: 2100mm, deck height: 360mm to 560mm;
6. Lifting capacity: 3500kg;
7. 10 tons of pulling tower;
8. Comes with 2 pneumatic pumps, loading ramps and clamping system.
Specifications
Length: 5500mm
Width: 2100mm
Sidewise incline height: 360-600mm
Pulling capacity: 100kn
Air supply required: 0.8mpa
Radius of pulling: 360°
Max. Load: 3500kg
Total weight: 2700kg
Model: Sampe 3600
Product features
1. Unique deck design for downpulls wherever you need them;
2. Towers move 360 degrees around the frame bed;
3. Adjustable collar on tower performs both straight and angle pulls;
4. Safe and easy locking mechanism on each tower to easily adjust in locking positions;
5. Front and rear removable cross members allow access for working under vehicle;
6. Disassembly cross member add fixed points;
7. Deck length: 6000mm, deck width: 2235mm, deck height: 300mm to1020mm;
8. Available with overhead beam, American style clamp and electric pump.
Specifications
Length: 6000mm
Width: 2235mm
Height: 300-1020mm
Electric pump required: 28mpa
Pneumatic pump required: 70mpa
Supply voltage: 220v/380v
Electric current: 5a
Pulling capacity: 100kn
Air supplied required: 0.8mpa
Radius of pulling: 360°
Max. Load: 3000kg
Total weight: 3200kg
Model: Sampe 4000
Product features
1. Unique deck design for downpulls wherever you need them;
2. Towers move 360 degrees around the frame bed;
3. Adjustable collar on tower performs both straight and angle pulls;
4. Safe and easy locking mechanism on each tower to easily adjust in locking positions;
5. Front and rear removable cross members allow access for working under vehicle;
6. Disassembly cross member add fixed points;
7. Deck length: 6000mm, deck width: 2235mm, deck height: 300mm to 1020mm;
8. Available with overhead beam;
9. Equipped with American style clamp;
10. Central oil supplying.
Specifications
Length: 6000mm
Width: 2235mm
Lift height: 300-1020mm
Sidewise incline height: 130mm
Electric pump required: 28mpa
Pneumatic pump required: 70mpa
Supply voltage: 220v/380v
Electric current: 5a
Pulling capacity: 100kn
Air supplied required: 0.8mpa
Radius of pulling: 360°
Max. Load: 3000kg
Total weight: 3200kg
