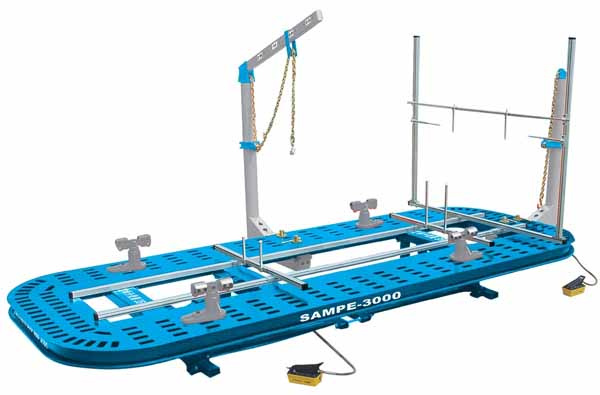

Collision Repair System (SAMPLE 3000)

Name: Collision Repair System (SAMPLE 3000)
Brand: ibuyautoparts.com
SKU: 621848462
Availability: InStock
Rating: 4.3 (100 reviews)

Price:	Negotiable
Min Order:	1

Contact Supplier

Showroom Product Company Profile

Model: SAMPE 3000
Product Features
1. Unique deck design for downpulls wherever you need them;
2. Towers move 360 degrees around the frame bed;
3. Adjustable collar on tower performs both straight and angle pulls;
4. Vertical lift;
5. Deck length: 5500mm, Deck width: 2100mm, Deck height: 360mm to 560mm;
6. Lifting capacity: 3500Kg;
7. 10 tons of pulling tower;
8. Comes with 2 pneumatic pumps, loading ramps and clamping system.

Specifications
LENGTH^^^^^^^^^^^^^^^^^^^^^5500MM
WIDTH^^^^^^^^^^^^^^^^^^^^^^2100MM
SIDEWISE INCLINE HEIGHT^^^^^^^^^^^...360-600MM
PULLING CAPACITY^^^^^^^^^^^^^^^. 100KN
AIR SUPPLY REQUIRED^^^^^^^^^^^^^...0.8MPA
RADIUS OF PULLING^^^^^^^^^^^^^^^360°
MAX. LOAD^^^^^^^^^^^^^^^^^^^...3500KG
TOTAL WEIGHT^^^^^^^^^^^^^^^^^...2700KG

We mainly export automobile maintenance and repair equipments and engine rebuilding machines, such as following:

I. GARAGE EQUIPMNETS
1. Tire changer/ wheel balancer;
2. Nitrogen producing& inflator for tires
3. Car lifts
4. Spray booth/ infrared varnish-baking light series
5. Fuel injection pump test bench
6. Universal collision repair system
7. Four-wheel alignment
8. Auto air-conditioner service machnes
9. Spot welding machine /CO2 protection welding machine
10. Auto parts cleaners series
11. Other equiments

II. ENGINE REBUILDING MACHINES
1. Brake lathe or brake drum/disc cutting machines
2. Valve seats boring machine
3. Cylinder block grinding & milling machine
4. Cylinder fine boring machines
5. Cylinder line boring machines
6. Cylinder body bush boring machine
7. Vertical cylinder honing machine
8. Con-rod boring and grinding machine
9. Crankshaft grinding machines
10. Flywheel & Clutch Plate Grinding Machine
11. Valve grinding machines
12. Brake shoe riveting machines

III. OTHER MACHINES
1. Hydraulic press brake
2. Shearing machines
3. Lathe machines

Welcome to your inquiries, and we're expecting to work with you
