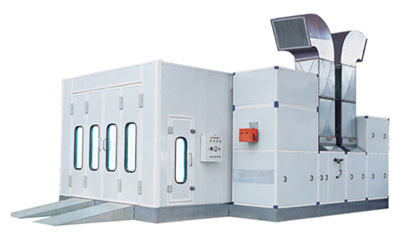

Coating Room

Name: Coating Room
Brand: ibuyautoparts.com
SKU: 676636465
Availability: InStock
Rating: 4.6 (95 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

-Professional ventilation system, professional European-style blower, big-circulation exchange between spraying and coating.
-Three-throttle structure can respectively adjust volume of the air supply and the exhaust.
-Imported filter cotton and diesel oil burner originally imported from Italy.
-Heat exchanger is made of 1Gr18Ni9Ti heat-resisting stainless steel plate and has long service life.
-Fire-retardant rock wool or polystyrene heat-preservation wall board, complete floor-grid and steel-platform structure, two rows of 45° Upper-row light and two rows of lower-row light inside the room.
-Totally imported electric control cabinet has phase, overtemperature, overload and short circuit protection. Differential manometer is configured to view the difference between internal pressure and external pressure at any time, guarantee safety of the operator, and to remind the user to maintain the filter system at proper time.
-Configured with activated carbon exhaust treatment device to guarantee the exhaust drainage consists with national standard.
-Configured with one 11KW European-style professional coating room blower to supply the air and one 11KW European-style blower to drain the air. The coating room works under slight positive pressure.

Model	GL4000-AA
External size	7.6×5.6×3.5m
Internal size	7.5×4.0×2.7m
Entrance Width	3.0m
Entrance Height	2.7m
Fan capacity	25000 M 3 /S
Air velocity	0.3-0.5 m/s
Air ventilation	332 times/h
Max Drying Temperature	60-80
Oil consumption	8-9 kg/piece
Power	25.5 kw
Suitable Automobile Type	Automobile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

SJMC Corporation, founded in 1997, is a national foreign-trade company combined with production and technology which is wellknown in supplying the service of Overall Mechanical processing solution in the filed.

SJMC' products are widely used in automotive, manufacturing, aerospace and defense, construction and farming equipments, oil and energy field, mold and die industries, etc. From the beginning, our company made it as our mission to provide machines of good quality at competitive price to all customers. Rely on good relationships with many famous manufactories and final assembly these inputed products in our house to realize our concept of reducing the cost.

SJMC Machines involve all kinds of machine tools and motor maintenance equipments, e. G. Vertical and horizontal machining centers, lathe, milling machine, drilling machine, boring machine, grinder, measuring equipments etc. Which offer users high throughput, high quality, reliable solution and cost effective to production machining operations.

SJMC has developed successfully of its own corporate philosophy of High quality, Cost effective, first-rate service and has underpinned the development of world's manufacturing by offering machine tools that satisfy manufacturing makers. These years, SJMC has set up close business co-operation with many companies in the world through good services and mutual trust.

Choosing SJMC as your machining partner, you are free to imagine a more productive, cost effective solution and we assure you that we can together to make your dream come true.
