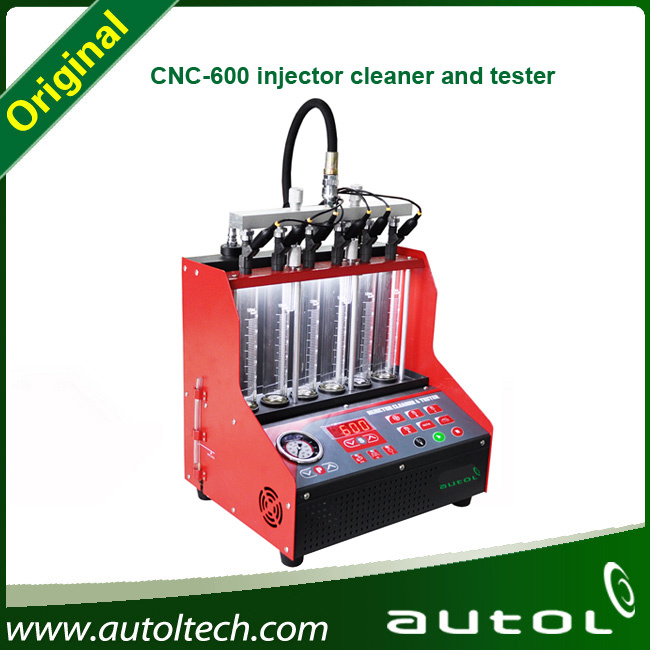

Injector Cleaner & Tester CNC-600
CNC600 injector cleaner and tester 110V and 220V the same function as Launch CNC602A
CNC-600 is an advanced electromechanical product, which can clean and test injectors by simulating engine working conditions. It can also perform cleaning on the injectors and fuel supply system on vehicle.
1 Ultrasonic cleaning: To perform simultaneous cleaning on several injectors and to remove the carbon deposits on the injector completely.
2 Uniformity/Sprayability test: To test the uniformity of injecting amount of each injector, and to monitor the spraying status of each injector with the help of backlight. This test is also for reverse flush.
3 Leakage test: To test the sealing and dribbling conditions of injectors under system pressure.
4 Injecting flow test: To check the injecting amount of the injector in 15 seconds of constant injection.
5 Auto. test: To test injectors by simulating different working conditions.
6 On-vehicle cleaning: The unit is equipped with various adaptors and couplers that facilitate cleaning on the injectors on vehicle.
CNC Series
Injector Cleaner & Tester
Injector cleaning
Injector testing
On-vehicle cleaning (optional)
Functions
Direct flush
Reverse flush
Ultrasonic cleaning
On-vehicle cleaning (optional adapters)
Spray ability test
Uniformity test
Leakage test
Injecting flow test
Electronic drain
Specifications
Power supply: AC220V~50/60Hz
Input power of main unit: 200W
Ultrasonic cleaner power: 60W
Pressure: 0~7bar
Accuracy of tube: ±2%
RPM range: 0~9999rpm, step: 10 rpm
PW range: 0.1~30ms, step: 0.1ms
Timing: 1~30min
LED display
LED background light
Membrane keypad
Top-supply fuel distributor
Features
Optimization structure design
LED backlight

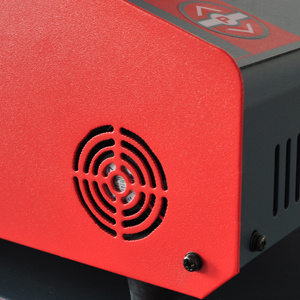

Be equipped with cooling fan
Special material seals
Friendly interface
Remark: Standard Package Of CNC600 Is Not With any liquid ( Testing and cleaning liquid )due to the regulation of Chinese Customs,Please note.
|
Specifications |
|
Power supply: AC220V~50/60Hz |
|
Input power of main unit: 200W |
|
Ultrasonic cleaner power: 60W |
|
Pressure: 0~7bar |
|
Accuracy of tube: ±2% |
|
RPM range: 0~9999rpm, step: 10 rpm |
|
PW range: 0.1~30ms, step: 0.1ms |
|
Timing: 1~30min |
|
LED display |
|
LED background light |
|
Membrane keypad |
Top-supply fuel distributor
|
