CNC Machine Diamond Cut Auto Alloy Wheels Repair Equipment Awr28h

Name: CNC Machine Diamond Cut Auto Alloy Wheels Repair Equipment Awr28h
Brand: ibuyautoparts.com
SKU: 709053562
Availability: InStock
Rating: 4.9 (86 reviews)

Price:	US $ 18000/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

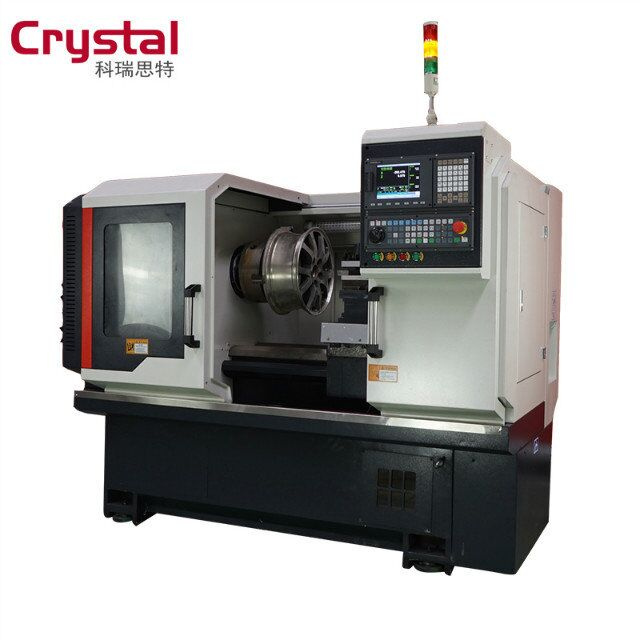

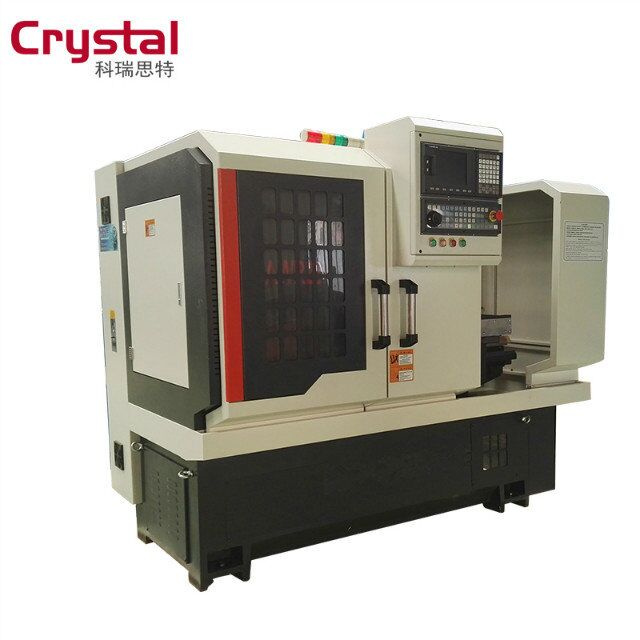

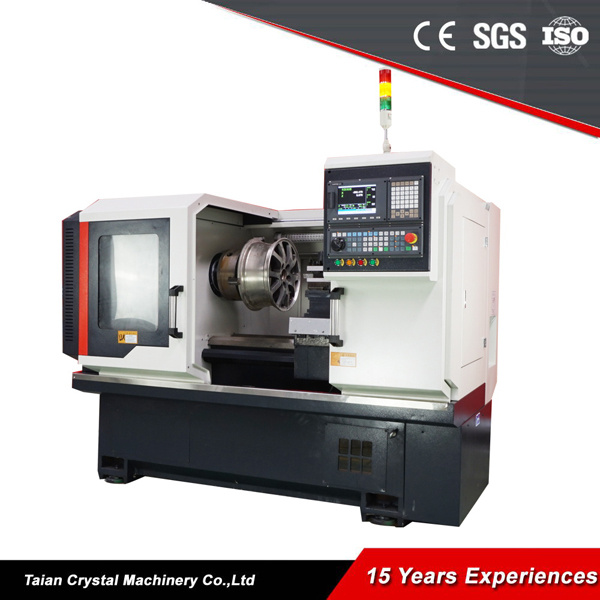

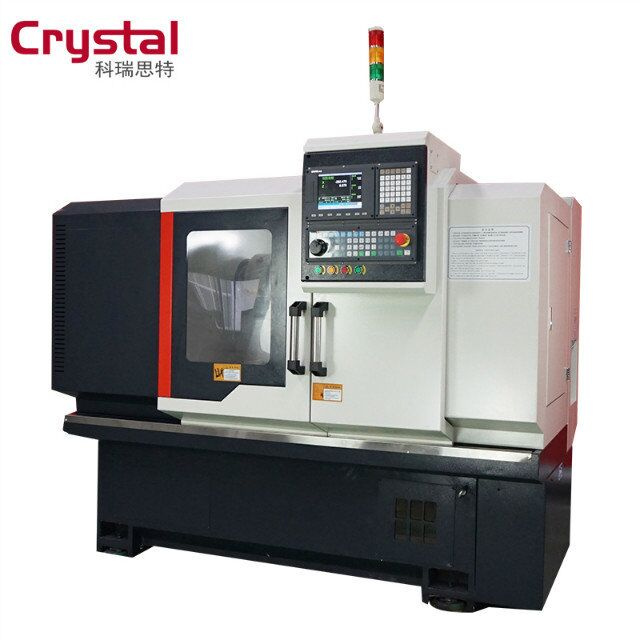

CNC Alloy Wheel Repair Lathe Machine AWR28H

Specification:

lSupply repairing Alloy wheel up to Max 28'
lAutomated self plotting Digitization by Probe System
lEasy Operate
lCE Certification
lFree Training video
l7x12 hours email or telephone technology supply

Standard Configuration:

lSYNTEC CNC control system
lPioneer Sensing Probe
l3-Jaws Chuck(With Special Soft Jaws)
lDiamond Cutter 1 set
lAutomatic electronic pump lubrication
lSpecific Digital Optimization Software
lManual Quick Change Toolpost,Four-station

ITEMS	Specifications
Max. swing over bed	Φ770 (30')
Max. Size of alloy wheel	Φ720 (28')
Adjustable stroke of carrier in X direction	100mm
Cross slide travel (mm)	390
Width of the machine	300
Length of the rail	1300
Size of three-jaw chuck	12'
Range of spindle speed	50-2000rpm
Spindle speed control	Automatic
Spindle bore	Φ82mm
Taper of spindle bore	1:20(Φ90)
Stations of tool carrier	4 Station
Max. size of tool post	25×25mm
Min. setting unit of motor	(Z) long 0.001mm, (X) cross 0.001mm
Moving speed of post	(Z) long 8 m/min, (X) cross 6 m/min
Machine base	Whole cast iron base
Motor power	7.5KW
Machine Size	2140 ×1600×1860
Packing size(length ×width ×height)	2300×1750×2100
Net weight	2600kg
Mark	Stock

Make you satisfied is our business!
The First Batch in china suppliers to join the alibaba Trade Assurance,you could get Zero-risk purchase service.
Over 300 clients from more than 40 countries could tell you we are your realiable parter.
We are professional cnc machine factory,our price could beat any competitors in china market .
We supply professional solution to you based on your own process one by one.
We accept custom configuration such as auto feed system,the 3rd axis,hydraulic chuck and tailstock and so on.
We supply one years Warranty for whole machine and 3 years warranty for cnc system and servo motor.
7*24 hours Email or phone service.

Prod Model:	AWR28H
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Place Of Origin:	China
Machine Type:	Wheel Repair Machine
Processing Type:	Alloy Wheel
Precision:	High Precision
Power Supply:	Three Phase 380V/50Hz
Warranty:	One Year
