FRICWEL AUTOMOTIVE LIMITED >> Clutch Disc for Volvo Truck (1861 996 137)

Clutch Disc for Volvo Truck (1861 996 137)

Clutch Disc for Volvo Truck (1861 996 137)
Price: US $ 0.1/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 100/Piece
Pay Type: L/C,T/T,D/P,Paypal

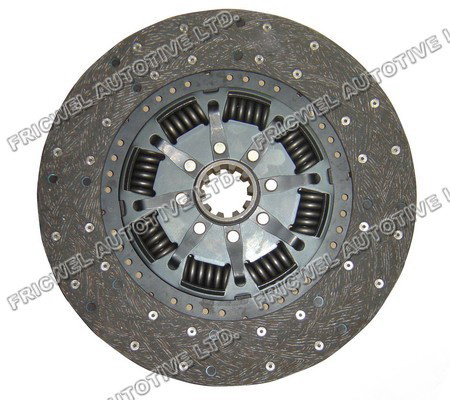

Volvo Clutch Disc 1861 996 137

Dimension: 380*250mm-10*50.8mm
We have developed over 700 models clutch disc assembly, diameter range from 160mm to 430mm, application covering all kinds of passenger cars, commercial cars, trucks and buses, our main products including Volvo truck, Benz truck, Scania, Man, HOWO and all kinds of Japanese vehicles We have invested advanced toolings technology from abroad, with CAD and CAM technology, our yearly production ability can be two million sets, and we are considered one important clutch disc manufacturer in China.

For commercial vehicles clutch plate, we had developed all kinds of products for auto type: Volvo truck, Mercedes Benz truck, Scania, Man, Renault, FIAT, Skoda, Iveco, HOWO, and all kinds of Korean and Japanese vehicles like Hyundai, Daewoo, Mitsubishi, Hino, Isuzu. Oil tank trucks, refrigerator truck, transport mixer, towing truck, dumper, self-dumping truck, fire fighting truck, heavy duty trucks, light trucks. The commercial vehicle clutch plate OD. Range from 275mm to 440mm.

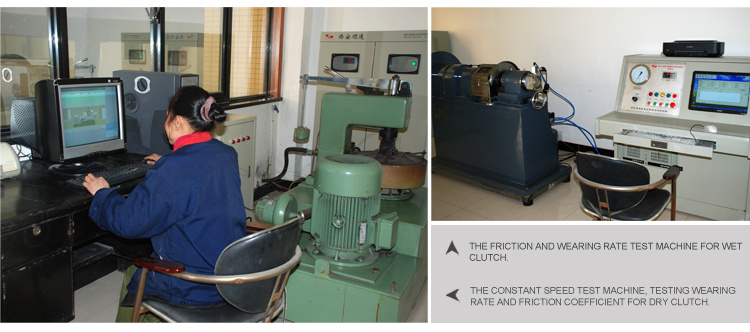

According to the Automobile Dry Clutch Disc Assembly Bench Test Technique and Automobile Dry Clutch Disc Assembly Technology Qualification, our clutch disc products were tested and the results showed as follows:
1, Overspeed test: Continuously accelerating clutch disc rotation speed to 8000 RPM at 250 Centi degree, and keep speed for 5 Mins, no crack and damage on the clutch plate.
2, Fatigue test: The clutch plate maximum torque not less than 75% of primary data, after a 3.5X 106 recycle, friction damp torque not less than 60% of primary data;
3, Temperature increase test: Start the clutch plate 10 times, the average temperature less than 10 Centi degree.
4, Dynamic friction torque test: After clutch disc mating with the work surface, when contact surface over 80% at 1500 RPM, force friction disc slip to friction surface to 250Centi degree, the clutch disc unit dynamic friction torque not less than 0.3NM/CM2. The dynamic friction torque at 250Centi degree, not lower than 70% of value at room temperature.
5, Friction facing wearing rate test: After clutch disc assembly mating with the work surface, when contact surface over 80% at 1500 RPM, running the clutch plate 1X104 times, the friction surface wear rate not over 0.65mm, no crack, no bubble and no rivets exposed.
Prod Model: 1861 996 137
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Part: Clutch Disc
Certification: ISO/TS16949:2002
Stroke: 2 Stroke
Usage: Heavy Duty Trucks
Working State: No linkage
Material: Fiber

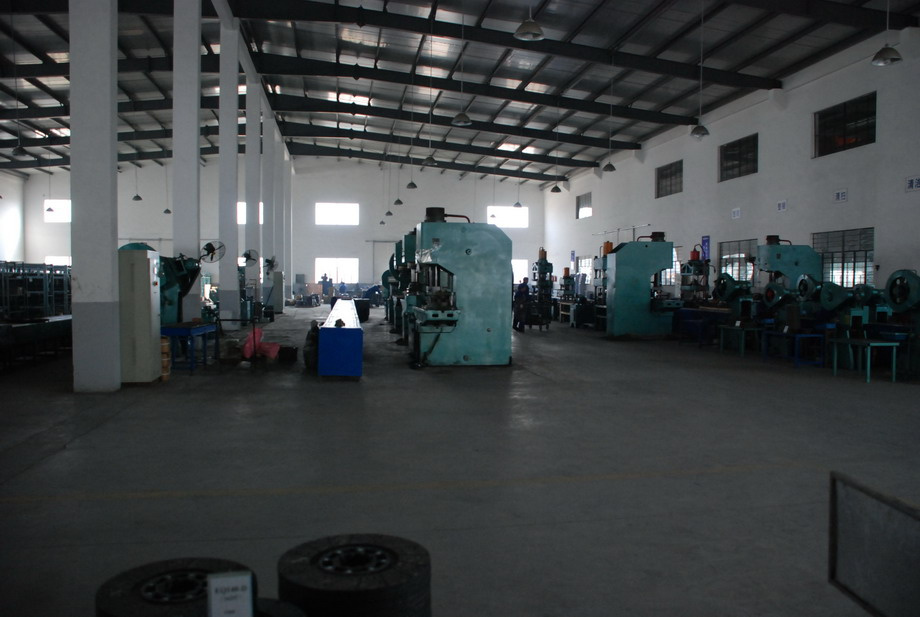

Founded in the year 1992, our factory is one of the oldest friction material manufacturer in China, our primary business starts from 1000 square meters workshop, the products were mainly clutch buttons and clutch facing products.

In 1999, we moved to the new 4, 000 square meters workshop, with the quick development of our clutch facing business, we were certified the quality authentication of ISO9001 in year 2000, and in 2008, our new 24, 000 square meters workshop was finished, we became one professional manufacturer of clutch facing and clutch button in China. Our current friction products production is around 100 tons per month, products includes all kinds of products like clutch facings, clutch button, friction disc, clutch disc, brake pads.

The Fricwel brand was created with the purpose to combine all our friction materials lines. We welcome our customers to visit our factory for friction materials business. To learn more about our products linesl, please visit the online brochure or E-mail us for the latest catalouge.
