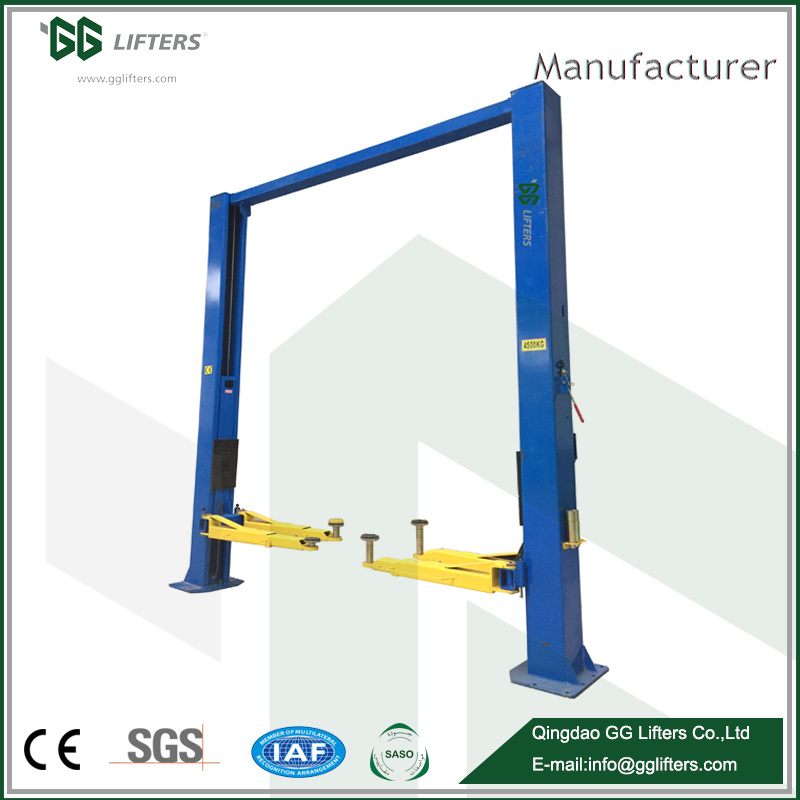

Clear Floor Vehicle Lift Ltc50/1960-3j

Name: Clear Floor Vehicle Lift Ltc50/1960-3j
Brand: ibuyautoparts.com
SKU: 731477582
Availability: InStock
Rating: 4.8 (76 reviews)

Price:	US $ 1000-2000/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Features:

1.Two post, Dual-cylinder drive , steel rope-balancing system
2.Extra width between two posts without floor plate
3.Automatic safety locks , manual or electric lock release system
4.Limiting displacement bar with limit switch to automatically stop in the highest position
3.5T to 5T lifting capacity
5.Lifting carriages to minimize pressure on the posts
6.Self-lubricating high polymer polyethylene sliding blocks
7.Adjustable height, binodal posts if needed , Large load quantity
8.Asymmetrical design of the arms,30 degrees rotated posts
9.Polished and powder coated posts.

Parameters:

Model NO.	LTC42/1850-2J	LTC45/1960-3J	LTC50/1960-3J
Lifting Capacity	4200kgs	4500kgs	5000kgs
Max Lifting Height	1850mm	1960mm	1960mm
Total Height:	3672mm	3672mm	3860mm
Arm Type:	2 Stages	3 Stages	3 Stages
Arm Type:	Arm lock(semi-circle)	Arm lock(semi-circle)	Arm lock(semi-circle)
Safety Lock	MANUAL UNLOCK	MANUAL UNLOCK	MANUAL UNLOCK
Limit Switch	2	2	2
Limit Switch	Sliding table and top beam	Sliding table and top beam	Sliding table and top beam
Others	Spare parts and install tools box(free)	Spare parts and install tools box(free)	Spare parts and install tools box(free)
ANOTHER SAFETY LOCK	ELETRIC UNLOCK WILL ALSO BE AVAILABLE.
DOCUMENTS	INSTALLATION MANUAL BOOK, USER BOOK, WARRNING SHEETS
TEST BEFORE SHIPPMENT, AND SHOW THE VIDEO TO CUSTOMER WITH SHIPPING LIST
Warranty	2 years for electric parts, 5years for steel frame structure
Rise/Drop Time	90s/60s
Power Supply/Motor Capacity	220v/380v/2.2kw OR according to customer request

Pictures:

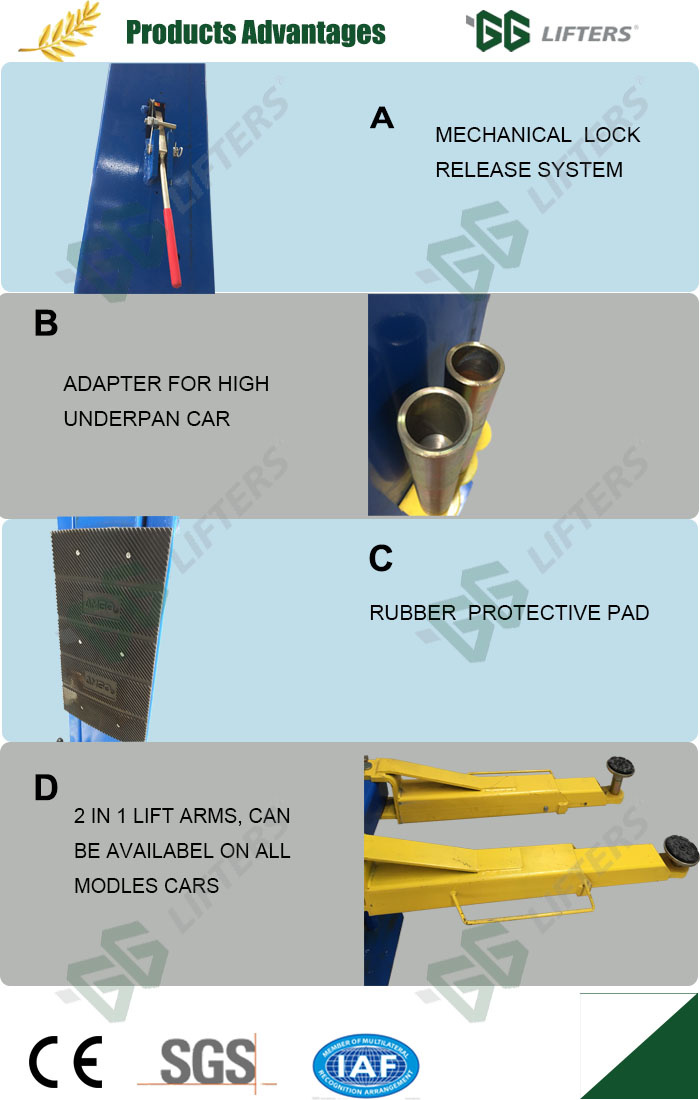

Details:

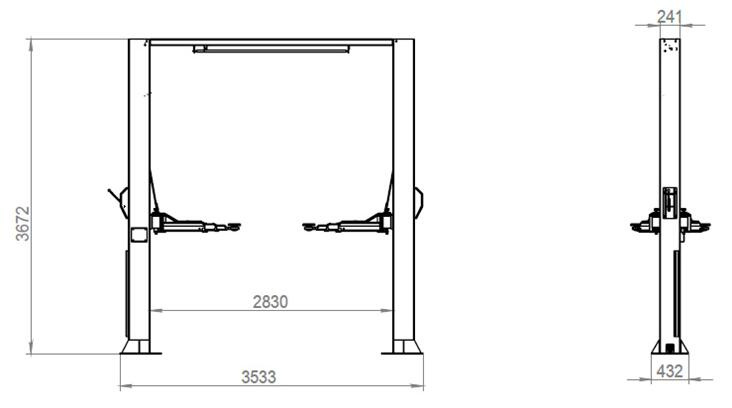

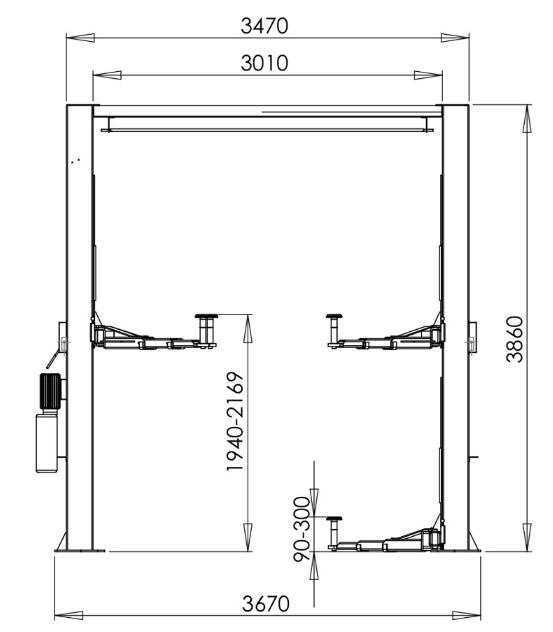

Drawing:

Prod Model:	LTC50/1960-3j
Type:	Double Cylinder Hydraulic Lift
Certification:	CCC
Design:	Two Post
Lifting Capacity:	3.5t 4.2t 4.5t 5t
Brand:	Gg Lifters

Qingdao GG Lifters Co., Ltd, an established Factory in Qingdao, China, with state of the art facility to design, manufacture and install world-class solutions for automated and mechanical car parking and car service lifts offered to our customers worldwide.

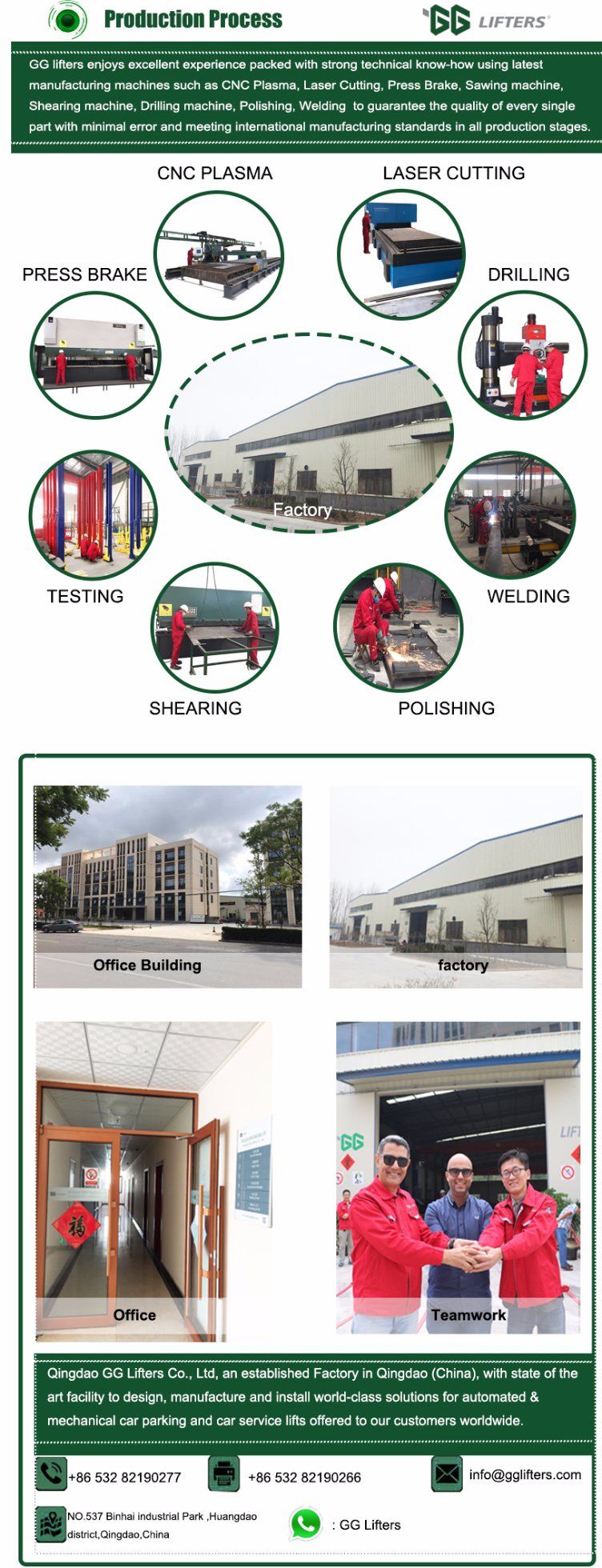

Our competent team in multi languages (English, Chinese, Italian, Arabic, Japanese, etc) is well prepared to anticipate, identify and exceed our customers' expectations. GG Lifters enjoys excellent experience packed with strong technical know-how using latest manufacturing machines such as CNC Plasma, Press Brake, Cutting and Welding to guarantee the quality of every single part with minimal error and meeting international manufacturing standards in all production stages.

GG Lifters through its Research and Development team is committed to provide unmatched quality yet maintaining efficient & ergonomic operation to insure producing durable and competitive parking lifts, service lifts for commercial and residential solutions.
