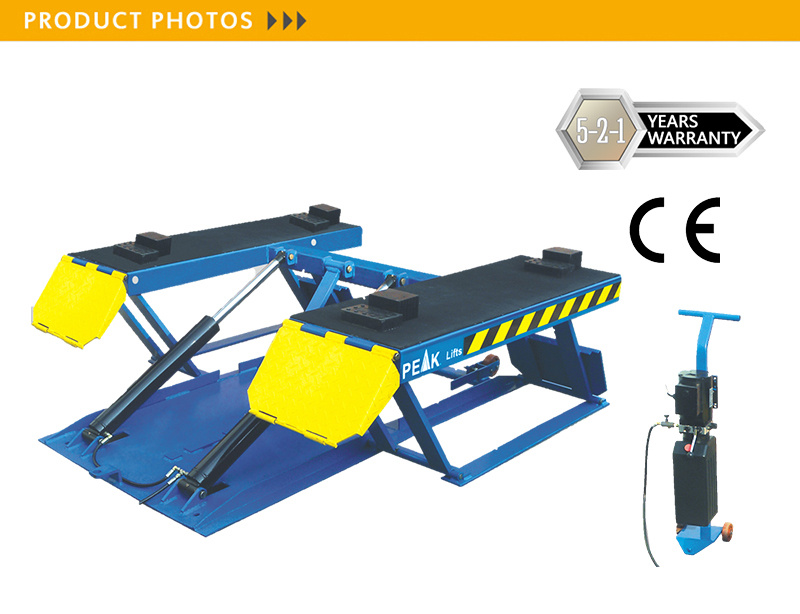

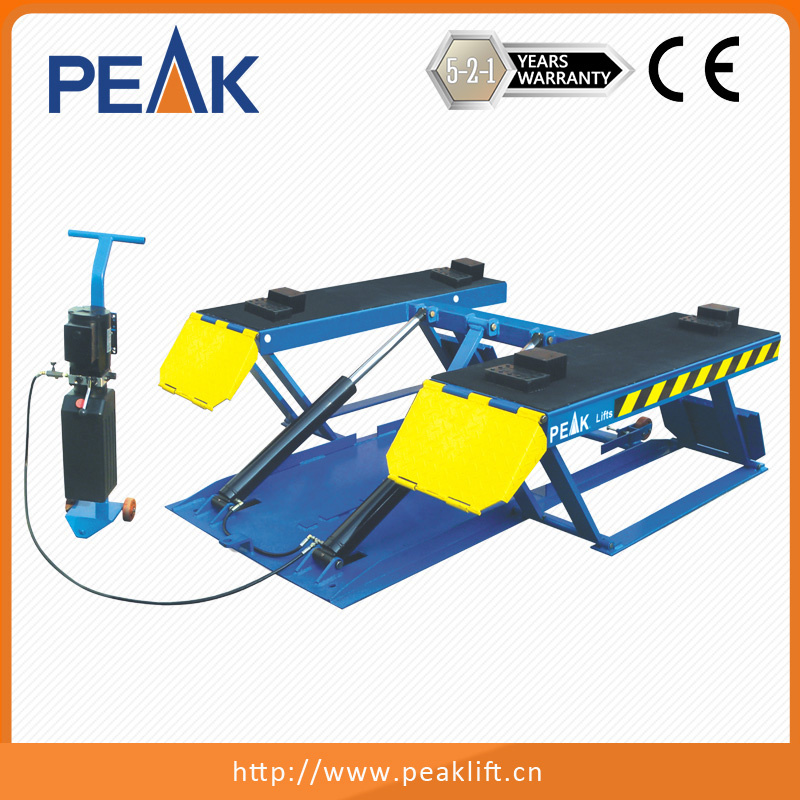

LR10 China Supplier Low-Rise Auto Lifter

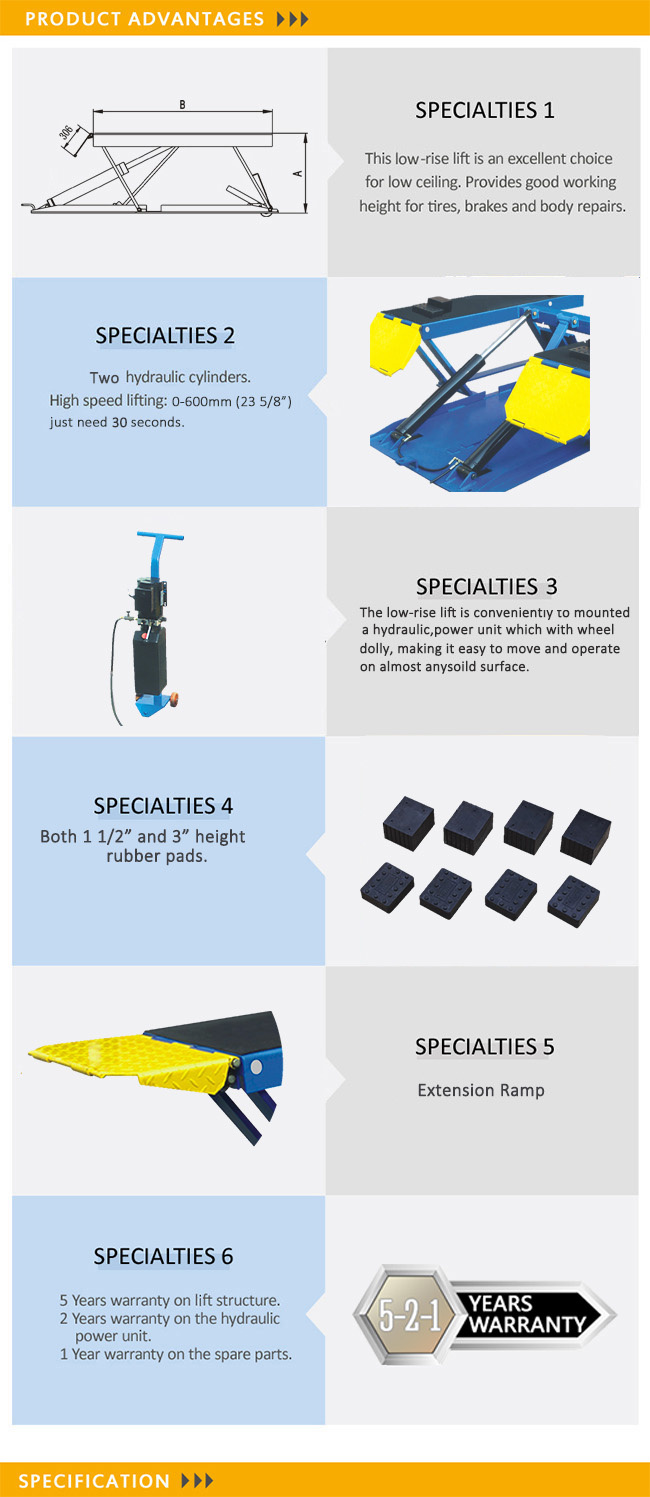

Feature
• 10,000 Lbs Capacity
• Automatic multiful safety locks.
• Mechanical safety lock release.
• Portable unit is easy to move with the power unit stand.
• High speed: from 0-600mm(23 5/8") just need 30 seconds.
• Standard rubber pads included.
• Long warranty:
5 Years warranty on lift structure(including Columns, Carriage, Lifting Arms, Top Beam, Floor Cover, Platform, Cross Beam, Car Drive-in Ramp, Scissor, Baseframe etc.);
2 Years warranty on the hydraulic parts (including cylinders, oil seal, oil hose, fitting etc.);
1 Year warranty on the spare parts, electrical components, power unit (not including consumption parts such as rubber pad).

LR10 China Supplier Low-Rise Auto Lifter

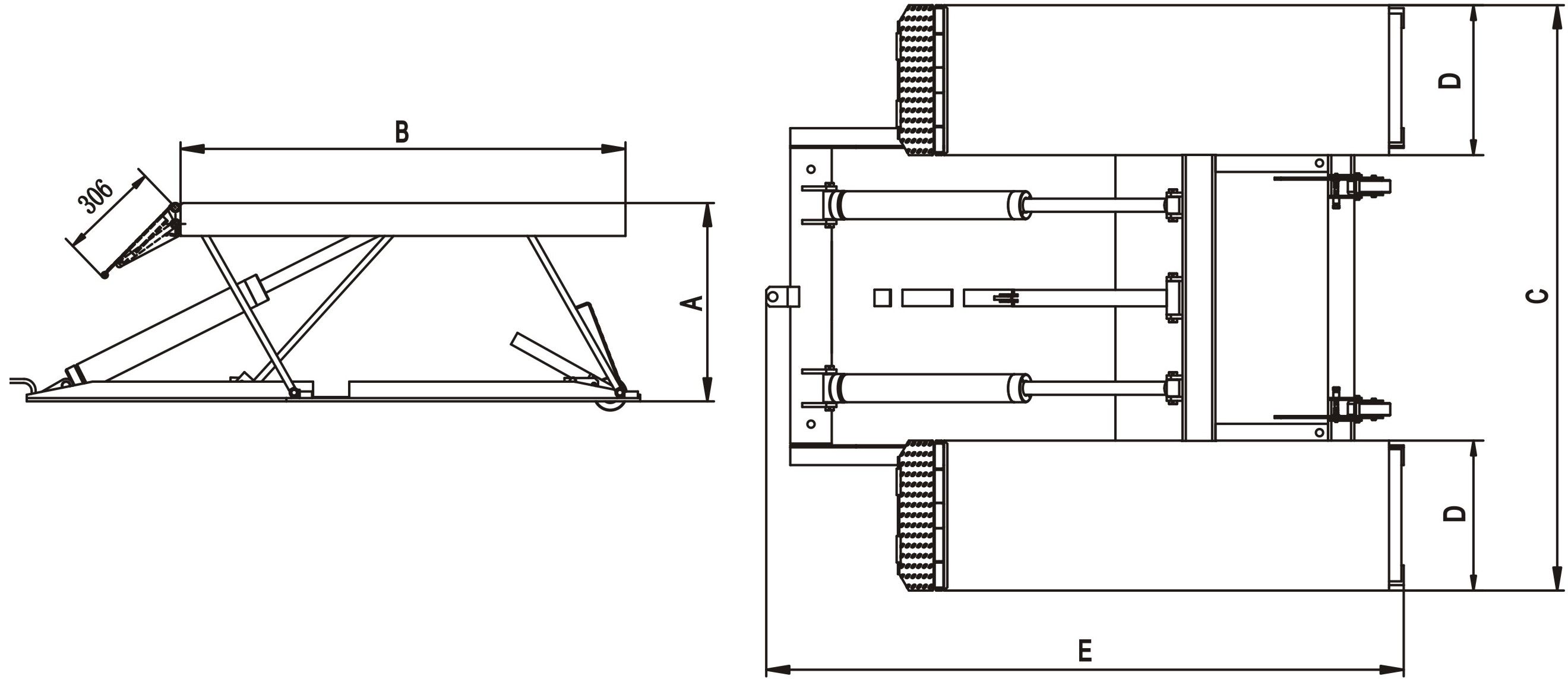

Model		LR10
Style		Scissors Lift
Lifting Capacity		4.5T (10,000lbs)
Lifting Time		30 Seconds
A	Lifting Height	600mm (23 5/8")
	Minimum Height	105mm (4 1/8")
B	Runway Length	1352mm(53 1/4")
C	Overall Width	1780mm(70")
D	Runway Width	456mm(18")
E	Overall Length	1938mm(76 1/4")
Gross Weight		441kg(972lbs)
Motor		2.0/3.0HP
Packing Dimension		1800 X 2000 X 200 mm
QTY of Container		24 Units/20'GP

EVERY PEAK LIFT IS FOR THE CUSTOMERS WHO NEED GOOD QUALITY PRODUCTS AT COMPETITIVE PRICE!

Prod Model:	LR10
Lifting Time:	30 Seconds
Lifting Height:	600mm(23 5/8")
Motor:	2.0/3.0HP
Gross Weight:	441kg(972lbs)
Color:	Blue
Surface Treatment:	Spray-Paint
Type:	Double Cylinder Hydraulic Lift
Certification:	CE
Design:	Scissor
Lifting Capacity:	2.8t
Brand:	Peak

PEAK corporation is located in Foshan ( near Guangzhou, China) has over 18 years experience in the design, manufacture and global distribution of an extensive line of qualified automotive lifts including 2-post, 4-post, scissors and portable lifts. We are one of the few companies in China which our lifts are passed the CE certification, Australian Safety certification and ETL/ALI certificates.

PEAK designs its products to include features for the market demand today. Some of the technical in no vations include our Super-symmetric® , single-point safety release systems (two locks, one release), 2-dual synchronous cylinders, hydraulic lock scissors lift and many more.

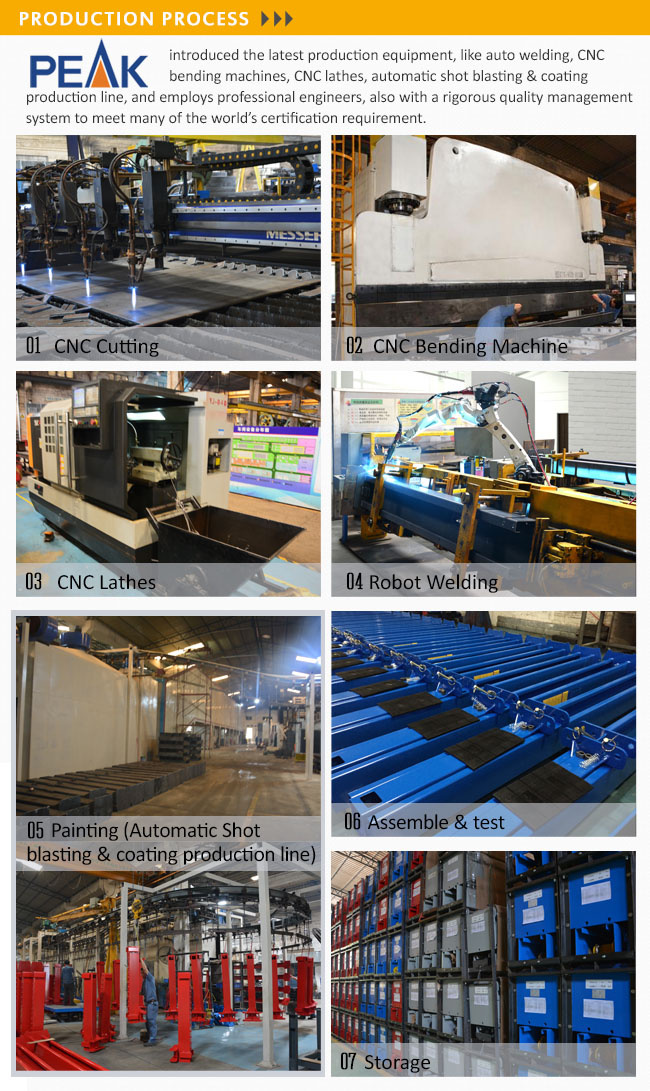

PEAK has many advanced equipment such as imported NC cutting machine, automatic welding machine and CNC machining center etc. In 2014 PEAK establish new Hydraulic Department to research and produce the hydraulic parts ourselves.

At PEAK we pay strict attention to product design, manufacturing, testing and after sales support. The parts we choose and produce are on the principle of the best, such as high quality Cylinders designed and manufactured on ANSI standard, Self-lubricated sliders and Bronze bush, Aero-cables, Powder coating and strictly heat treatment technology, and so on.

PEAK employs certified welders and professional engineers to follow a strict quality control process to meet many of the world's certification requirements.

Each PEAK lift is designed for customers who seek the world-class products!
