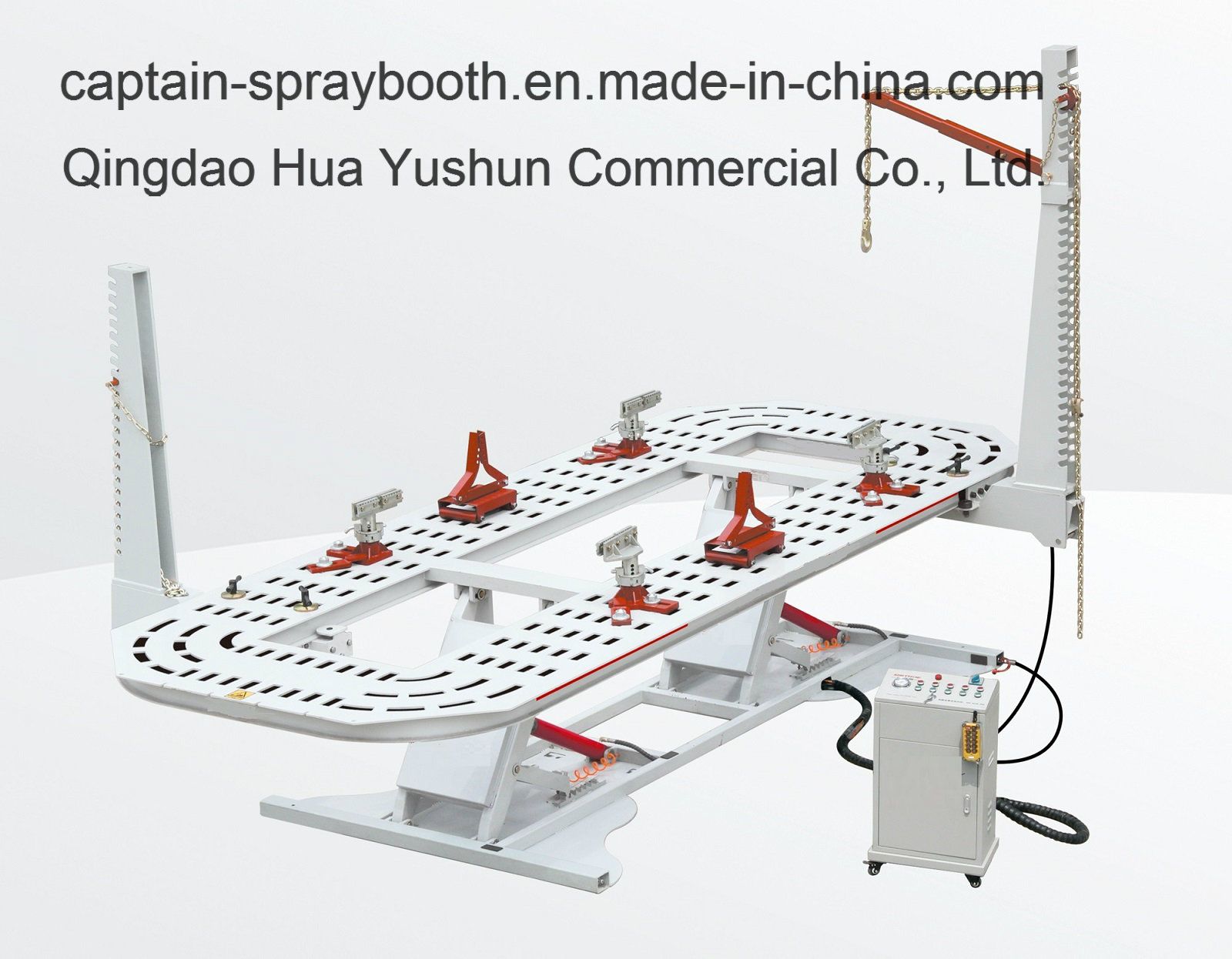

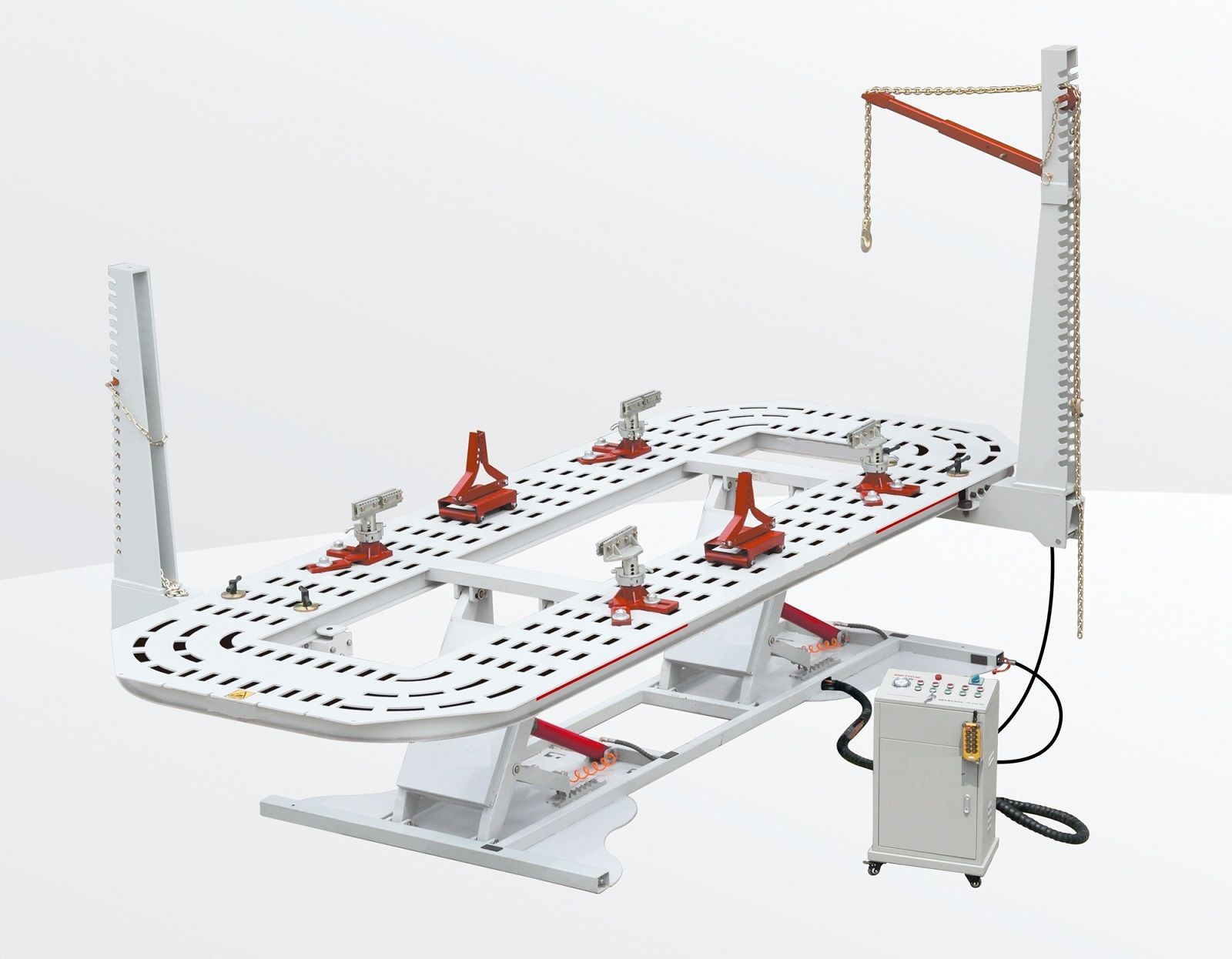

Specifications | Platform length | 6000mm |
| | Platform width | 2300mm |
| | Platform height | 120mm-320mm-1200mm |
| | Post Max.tension | 95KN |
| | Voltage | 3-380V±5% |
| | Post working range | 360° |
| | Max.lifting weight | 3500Kg |
Function |
Four outputs oil system makes lifting, unlocking, dropping and locking possible through a key. Full automation, technological innovation, humanized design, practical working philosophy. Remote control: A key in hand, manipulate freely.
Double cylinder self-locking hydraulic parallel lifting platform,with tilt lifting function,convenient for car to drive on and off. The height is adjustable among 120mm-320-mm-1200mm according to the repairing need.The lifting device with double safety of hydraulic and mechanical self locking,more secure.
Control box's four oil lines are connected with oil cylinder of the basement and two oil lines of the platform respectively,it makes the two pulling towers pull and hydraulic lock separately, no influence each other, instead of the traditional tower bolt locking.A gas pipe is connect with the air cylinder of the safety lock teeth, ensuring the security of the platform up and down operation.
The three pulling towers can work along the track for 360° rotation, operated more convenient. The pulling towers pull strong each other and highly active.
The universal patented design main clamps.It can rapidly clamp various auto models which with auto-skirt and pick-up,SUV etc.
Retractable wheelbase PTP measuring system of the world's most advanced, seamless breakpoint, convenient operation.The scale is carved by laser,durable |
Shipping and payment:
1. Loading Port: Qingdao, Shandong
2. Payment Term: T/T
3. Total Cubic Measure: 6.5CBM
4. Delivery Time: Within 10 days after deposit
5. Quantity: 4 sets/20'GP
Remark: The length and pulling towers' quantity, we can manufacture according to client advice and the vehicle type you repair.
