Sic-based Diesel Particulate Filter is a high-tech product. It is mainly used to produce new generation of diesel clean & emission system to fulfill the carbon particulate cleaning target of the EUIII, EUIV standards
Working principle for Sic-based Diesel Particulate Filter: It can reduce 96.5% carbon particulates emission by holding up the carbon particulates in tail gas of diesel at first, then clear up carbon particulates by means of electric heat, fuel burner etc., finally to meet carbon particulate emission standards.

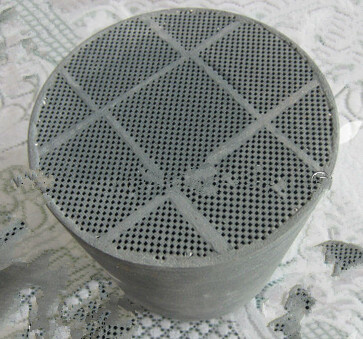

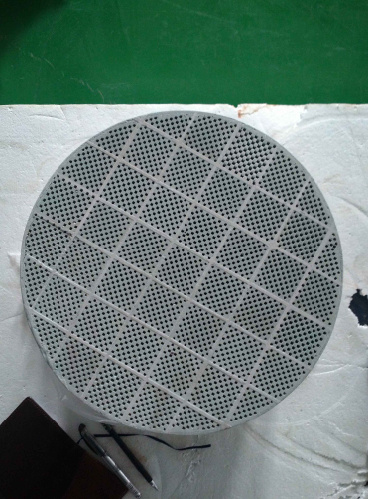

Diesel Particulate Filter adopts structure of honeycomb. It sets up independent opening and
Blocking up passages in both ends and the waste gas enters from one open end, then goes
Through the porous beehive wall, and finally discharges from adjoining passage. The carbon
Particulates are left over on passage wall because they are too big to pass through wall hole
And won't be discharged to air.
SpecificationsGood thermal shock
High Porosity
Less backpressure
Long service span
Customization available
| Size(Diameter × length) | Filter volume(Liter) | Cell density | Shape |
| mm | Inches |
| Φ70×152 | Dia.2.76×6 | 0.58 | 100/200CPSI | Rotundity |
| Φ144×152 | Dia.5.66×6 | 2.48 | 100/200CPSI | Rotundity |
| Φ144×205 | Dia.5.66×8 | 3.34 | 100/200CPSI | Rotundity |
| Φ144×254 | Dia.5.66×10 | 4.13 | 100/200CPSI | Rotundity |
| Φ144×305 | Dia.5.66×12 | 4.96 | 100/200CPSI | Rotundity |
| Φ170×254 | Dia.6.69×10 | 5.76 | 100/200CPSI | Rotundity |
| Φ190×200 | Dia.7.48×7.87 | 5.67 | 100/200CPSI | Rotundity |
| Φ228×152 | Dia.8.97×6 | 6.20 | 100/200CPSI | Rotundity |
| Φ228×254 | Dia.8.97×10 | 10.37 | 100/200CPSI | Rotundity |
| Φ228×305 | Dia.8.97×12 | 12.45 | 100/200CPSI | Rotundity |
| Φ240×240 | Dia.9.45×9.45 | 10.85 | 100/200CPSI | Rotundity |
| Φ240×254 | Dia.9.45×10 | 11.48 | 100/200CPSI | Rotundity |
| Φ240×305 | Dia.9.45×12 | 13.79 | 100/200CPSI | Rotundity |
| Φ260×305 | Dia.10.23×12 | 16.19 | 100/200CPSI | Rotundity |
| Φ270×305 | Dia.10.63×12 | 17.45 | 100/200CPSI | Rotundity |
| Φ286×305 | Dia.11.26×12 | 19.58 | 100/200CPSI | Rotundity |
| (98×195)×154 | (3.8×7.7)×6 | 2.60 | 100/200CPSI | Race track |
| (98×195)×205 | (3.8×7.7)×8 | 3.50 | 100/200CPSI | Race track |
| (98×195)×254 | (3.8×7.7)×10 | 4.30 | 100/200CPSI | Race track |
| (98×195)×305 | (3.8×7.7)×12 | 5.20 | 100/200CPSI | Race track |
Beihai Xiaoming International Imp&Exp Co., Ltd Established in 2008, which is a Private High-tech company located in Beihai city, China that is famous for its Silver Beach. We are a professional manufacturer and exporter of producing and exporting SiC/Al2O3/Zirconia Ceramic Foam Filter, Honeycomb Ceramic Heater for RTO, Infrared Cramic Plate, Cordierite/SiC Diesel Particulate Filter, Ceramic/Metal Honeycomb Substrate etc chemical products.
Beihai Xiaoming International Imp&Exp Co., Ltd is in the production, sales as a whole, and in cooperation with a number of large Group companies of major export commodities operated enterprises with a good reputation. For many years, with exports to Europe, and many countries in Southeast Asia, and received high praise.
We have a number of domestic and international famous academia senior adviser, own an innovation R & D team and sales elite. We have an excellent team of R & D\Production\Management and Sales, with passionate and responsibility. Currently, we have applied more than 30 patents for products developed and got certificates issued by international authorities such as TUV, IEC, UL, CE.
With the spirit of innovation during R&D, we were, we are and we will always be perfecting our products with the philosophy of " science, precision, accuracy and high efficiency". We hereby make our commitment: We offer our clients with the most effective and satisfying service, and this is our every person in our company to constantly pursuit.
