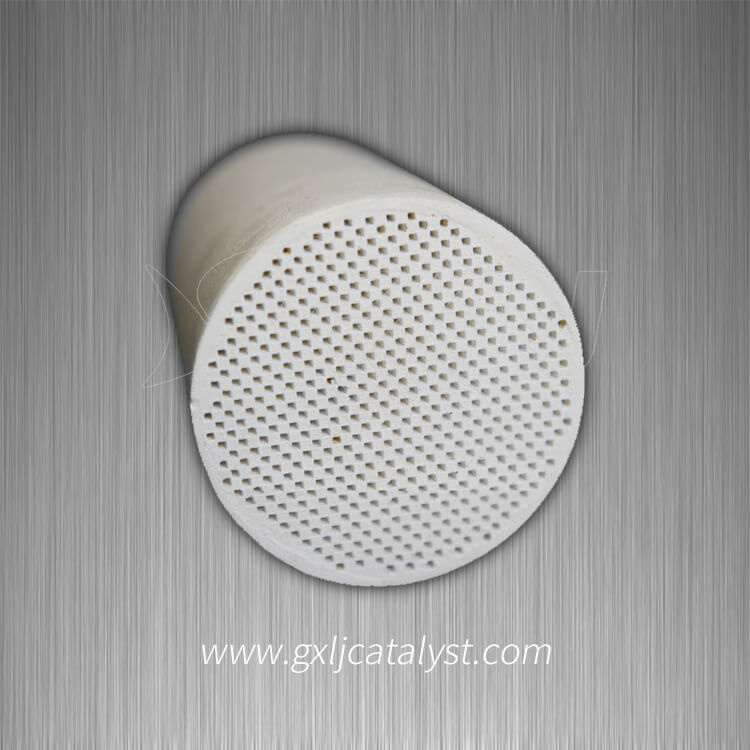

Ceramic Honeycomb for Fit VW Volkswagen Beetle 2.0L Catalytic Converter Direct Fit Filter

Ceramic Honeycomb for Fit VW Volkswagen Beetle 2.0L Catalytic Converter Direct Fit Filter
Price: US $ 20-30/Piece
Min Order: 2/Piece
Pay Type: L/C,T/T
Diesel Particulate Filter (DPF) , also called wall flow filter,is suitable for exhaust gas purification of various kinds of diesel vehicles and ships. We can produce different materials of DPF: cordierite particulate filter and silicon carbide diesel particulate filter .We also supply Catalytic Converter, Catalytic muffler, Motorcycle catalytic converter, DOC Catalyst, SCR catalyst ,Ceramic honeycomb monolith , Metal honeycomb carrier, ect. Our management system has been certified the ISO9001 and TS16949 by SGS company.


Materials: cordierite or silicon carbide
Function:
Wall-flow diesel particulate filters usually remove 95% or more of the soot, and under certain conditions can attain soot removal efficiencies approaching 100%

Working Principle
By forcing the exhaust gases through the walls between the channels of the DPF,the particulate matter is deposited on the walls ,so reducing the amount of air pollution.


Silicon Carbide Diesel Particulate Filter

The second most popular filter material is silicon carbide is a ceramic compound of silicon and carbon , also called SiC. It has a higher melting point (1500ºC) than cordierite.

SiC cores are usually more expensive than cordierite cores, however they are manufactured in similar sizes, and one can often be used to replace the other.

    Tested to ensure backpressure and performance match OEImproved thermal stability and efficiencyBacked by a lifetime, unlimited mileage warrantyStringently tested for durability and OEM functionalityApproved for horizontal, vertical and dual installations Nationwide technical /installation support Complies with emissions requirements for 2007 and newer model years

Parameter of Sic DPF
ItemTechinical Index
Sic Content≥90%
Cell Density200 cpsi
Wall Thickness0.35-0.41mm
Cell Lenght1.2-1.45mm
Apparent Porosity42-60%
Median Pore Size12-20μm
Transverse Compression Strength>2.3Mpa
Coefficient of thermal expansion (40-800ºC)4.3-4.4 (10-6/ºC)
Thermal Conductivity(500ºC)14-22(W/mK)
Capture Rate>95%
Bulk Density0.8 Kg/L
Filter Area0.75m2/L
Softening Temperature>1500 ºC

Cylinder Silicon Carbide Diesel Particulate Filter (DPF)
Regular Diameter Size Regular Height Size
Φ101.6mm(4 inch )4 inch,5 inch,6 inch, 7.5 inch
Φ144mm(5.67 inch )5.9 inch, 6 inch, 7.5 inch, 8 inch,8.5 inch, 9 inch, 9.45 inch,9.5 inch,10 inch, 10.24 inch, 10.5 inch
Φ152.4mm(6 inch )4 inch,5 inch,6 inch, 7.5 inch,8 inch,8.5 inch, 9 inch, 9.45 inch,9.5 inch,10 inch, 10.24 inch, 10.5 inch
Φ190.5mm(7.5 inch )4 inch,5 inch,6 inch, 7.5 inch,8 inch,8.5 inch, 9 inch, 9.45 inch,9.5 inch,10 inch, 10.24 inch, 10.5 inch ,11 inch, 11.25 inch,11.5 inch,12 inch, 12.5 inch, 13 inch, 13.5 inch, 14 inch
Φ203.2mm(8 inch )6 inch, 7.5 inch,8 inch,8.5 inch, 9 inch, 9.45 inch,9.5 inch,10 inch, 10.24 inch, 10.5 inch ,11 inch, 11.25 inch,11.5 inch,12 inch, 12.5 inch, 13 inch, 13.5 inch, 14 inch
Φ215.9mm(8.5 inch )6 inch, 7.5 inch,8 inch,8.5 inch, 9 inch, 9.45 inch,9.5 inch,10 inch, 10.24 inch, 10.5 inch ,11 inch, 11.25 inch,11.5 inch,12 inch, 12.5 inch, 13 inch, 13.5 inch, 14 inch
Φ228.6mm(9 inch )6 inch, 7.5 inch,8 inch,8.5 inch, 9 inch, 9.45 inch,9.5 inch,10 inch, 10.24 inch, 10.5 inch ,11 inch, 11.25 inch,11.5 inch,12 inch, 12.5 inch, 13 inch, 13.5 inch, 14 inch
Φ240mm(9.45 inch )6 inch, 7.5 inch,8 inch,8.5 inch, 9 inch, 9.45 inch,9.5 inch,10 inch, 10.24 inch, 10.5 inch ,11 inch, 11.25 inch,11.5 inch,12 inch, 12.5 inch, 13 inch, 13.5 inch, 14 inch
Φ241.3mm(9.5 inch )6 inch, 7.5 inch,8 inch,8.5 inch, 9 inch, 9.45 inch,9.5 inch,10 inch, 10.24 inch, 10.5 inch ,11 inch, 11.25 inch,11.5 inch,12 inch, 12.5 inch, 13 inch, 13.5 inch, 14 inch
Φ254mm(10 inch )6 inch, 7.5 inch,8 inch,8.5 inch, 9 inch, 9.45 inch,9.5 inch,10 inch, 10.24 inch, 10.5 inch ,11 inch, 11.25 inch,11.5 inch,12 inch, 12.5 inch, 13 inch, 13.5 inch, 14 inch
Φ260mm(10.24 inch )6 inch, 7.5 inch,8 inch,8.5 inch, 9 inch, 9.45 inch,9.5 inch,10 inch, 10.24 inch, 10.5 inch ,11 inch, 11.25 inch,11.5 inch,12 inch, 12.5 inch, 13 inch, 13.5 inch, 14 inch
Φ266.7mm(10.5 inch )6 inch, 7.5 inch,8 inch,8.5 inch, 9 inch, 9.45 inch,9.5 inch,10 inch, 10.24 inch, 10.5 inch ,11 inch, 11.25 inch,11.5 inch,12 inch, 12.5 inch, 13 inch, 13.5 inch, 14 inch
Φ279.4mm(11 inch )6 inch, 7.5 inch,8 inch,8.5 inch, 9 inch, 9.45 inch,9.5 inch,10 inch, 10.24 inch, 10.5 inch ,11 inch, 11.25 inch,11.5 inch,12 inch, 12.5 inch, 13 inch, 13.5 inch, 14 inch
Φ285.75mm(11.25 inch )6 inch, 7.5 inch,8 inch,8.5 inch, 9 inch, 9.45 inch,9.5 inch,10 inch, 10.24 inch, 10.5 inch ,11 inch, 11.25 inch,11.5 inch,12 inch, 12.5 inch, 13 inch, 13.5 inch, 14 inch
Φ304.5mm(12 inch )6 inch, 7.5 inch,8 inch,8.5 inch, 9 inch, 9.45 inch,9.5 inch,10 inch, 10.24 inch, 10.5 inch ,11 inch, 11.25 inch,11.5 inch,12 inch, 12.5 inch, 13 inch, 13.5 inch, 14 inch
Φ317.5mm(12.5 inch )6 inch, 7.5 inch,8 inch,8.5 inch, 9 inch, 9.45 inch,9.5 inch,10 inch, 10.24 inch, 10.5 inch ,11 inch, 11.25 inch,11.5 inch,12 inch, 12.5 inch, 13 inch, 13.5 inch, 14 inch
Φ322mm(12.68 inch )6 inch, 7.5 inch,8 inch,8.5 inch, 9 inch, 9.45 inch,9.5 inch,10 inch, 10.24 inch, 10.5 inch ,11 inch, 11.25 inch,11.5 inch,12 inch, 12.5 inch, 13 inch, 13.5 inch, 14 inch

Remark: customized specification can be allowed .
Add us to your favorite sellers list & Recommend our  store to your friends and  family!
Don't forget to regularly pass-by as we are constantly adding new products, special offers and unbeatable deals to our listings!


Prod Model: LJDZ000
Fitment: Fit for Diesel Engine, Customized
Emission Standard: Universal Fit, Without Coating Catalyst
Core Shape: Cylinder, Oval
Core Material: Cordierite, Silicon Carbide
Size: Customized According to Customers' Requirements
Cell Density: 100 Cpsi or 200 Cpsi (Cells/In2)
Wall Thickness: 20mil
Soften Temperature: ≥1300ºC
Thermal Shock Resistance 800: Water Cool ≥3
Filter Efficiency: >=95%
Discharge Standard: Euro V
Certification: CCC
Component: Core of Catalytic Converter
Body Material: Silicon Carbide ( Sic)
Type: Diesel Particulate Filter
General Description

Our cost-effective solutions to tighter emissions standards, Guangxi Huihuang Langjie environmental &Tech. Co., Ltd, specializing in the development and manufacture of exhaust emissions catalytic converter/catalyst solutions for all applications.

Since 2001, GXLJ has integrated complete product design, testing and manufacturing. Today, GXLJ is a premier supplier and manufacturer of high performance catalytic converters and substrates for diesel and gas fueled engines, with shorter lead times, greater quality control and superior service - all at greatly reduced cost.

GXLJ Catalytic Converter

Advantage

Our integrated approach and superior product quality allows us to provide highly customized solutions to manufacturers around the world. At GXLJ, we are dedicated to meeting and exceeding customer needs and requirements. Our staff is continually trained to stay current with cutting-edge developments in the field, for ongoing product improvement.

By controlling the design and manufacturing process, GXLJ is able to ensure strict quality control, by adhering to our TS16949 certification. Share your goals and business challenges with us. We will ask questions, listen, and respond to create solutions that fit like they were made for you - because they are.

GXLJ Catalyst for Exhaust emissions

Advantage

GXLJ specializes in the manufacture of high performance catalytic converters and metal/ceramic substrates. The cores offer a significant advantage, being more economical and less restrictive, while maintaining high durability.

With our cores you'll also experience additional advantages:

1. They are more cost effective in larger diameters

2. They have a quicker "light off"

3. The metallic cores experience 15%-30% less pressure drop than a ceramic of the same size and cell density

4. They provide more cost effective canning methods

5. Reduction of overall size of packaging

6. Can be produced to weld directly in exhaust system

7. They have higher thermal shock resistance

Welcome to consult us!
