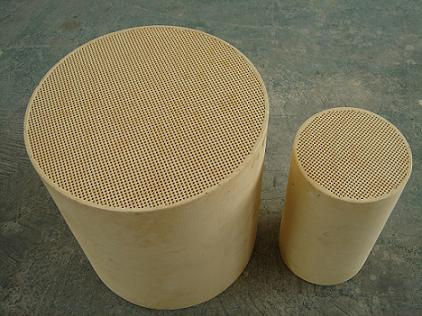

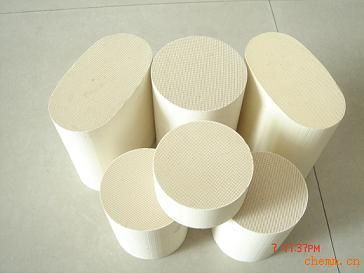

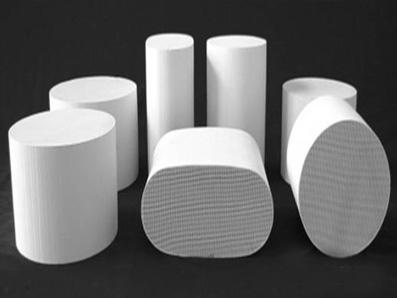

Honeycomb Ceramic Substrate for car/vehicle/motorcycle Description:
Honeycomb ceramic is new developed ceramic part. Because of it's features of corrosion resistances, large specific surface area, small heat resistance, good thermal conductivity and excellent thermal-shock resistance, fast heat exchanging and energy saving. Ceramic substrate 20/40 process bauxite with high content finely and make it into small and round grains with different grain diameters like 0.45mm-0.90mm, 0.09mm-0.224mm with chemical agents and transformation agents. Finally fire them under high temperature. In this way, high strength fracturing propping agent is finished. It has high strength, low breaking rate, good sphericity, etc. under closing pressure. It is the best product for stratum fracturing transformation of oil and gas field at present.
Used as catalytic converters of gasoline engines, the honeycomb ceramic catalyst substrates are coated by catalyst. At the same time , we improve the specific surface areas and cut down the heat capacity to increase the catalytic function. When the noxious emissions pass through, HC, CO and NOX will be converted into harmless components. Automobile exhaust gases are conventionally purified with a catalyst supported on a ceramic substrate body able to withstand high temperatures.
Honeycomb Ceramic Specifications
1. High working temperature.
2. Large specifc surface area.
3.Good thermal conductivity.
4. All shapes avalible.
We can provide high quality honeycomb ceramic parts.
Channel density
|
Shape
|
Dimensin (mm) |
Litre |
|
0 sells per square inch |
Round shape |
φ150*100 |
1.767 |
|
φ144*152.4 |
2.482 |
|
φ118*152.4 |
1.667 |
|
φ115.4*152.4 |
1.594 |
|
φ106*100.4 |
0.886 |
|
φ103*100 |
0.833 |
|
φ101.6*152.4 |
1.236 |
|
φ100*100 |
0.786 |
|
φ93*152.4 |
1.035 |
|
φ83*152.4 |
0.825 |
|
φ80*100 |
0.503 |
|
φ76*50 |
0.227 |
|
φ41*25 |
0.033 |
|
Racetrack ellipse |
P169*80.8*115 |
1.41 |
|
P148*84*152.4 |
1.66 |
|
P144.8*81.3*127 |
1.32 |
|
P127*63.5*152.4 |
1.10 |
|
P93*61*91 |
0.44 |
|
P120.6*80*152.4 |
1.26 |
|
P143*98*152.4 |
1.82 |
|
P147*95*152.4 |
1.83 |
|
P177.8*114.3*170 |
2.98 |
|
abnormity |
T144*84*75 |
0.713 |
|
T114*105*75 |
1.081 |
|
T120.2*108.2*75 |
0.766 |
|
T112.2*92*115 |
0.932 |
|
T119.5*99.5*115 |
1.074 |
|
T122.3*104.4*80 |
0.802 |
|
|
|
|
|
|
|
(mm)section size |
(mm)max length |
Litre |
300 sells per square inch |
Round shape |
144.0000 |
200.0000 |
3.258 |
150.0000 |
200.0000 |
3.535 |
190.0000 |
200.0000 |
5.671 |
220.0000 |
200.0000 |
7.604 |
240.0000 |
200.0000 |
9.049 |
600 cells per square inch |
93.0000 |
152.4000 |
1.035 |
101.6000 |
152.4000 |
1.236 |
118.0000 |
152.4000 |
1.667 |
