Ce Proved Scissor Lift for Wheel Aligner

Name: Ce Proved Scissor Lift for Wheel Aligner
Brand: ibuyautoparts.com
SKU: 785348585
Availability: InStock
Rating: 4.8 (49 reviews)

Price:	US $ 2500-4000/Set
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Set
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	JZJ-35D
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Double Cylinder Hydraulic Lift
Lifting Capacity:	3.5T
Certification:	ISO
Design:	Scissor
Brand:	Jingzhongjing/Jzj

Product Description

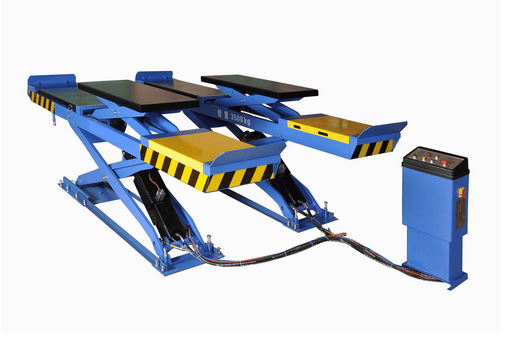

Automobile Scissor Lift
Model: JZJ-35D

Product Picture

Production Description
Scissor car lift with second jack for wheel alignment.
Capacity: 3500kgs
Lifting height: 1600mm/420mm
Voltage: 380V/3pH/2.2kW
Size: 4000mmx550mmx340mm auto level locking position for wheel alignment
Smoothly lifting-driven by hydraulic cylinders, running smoothly and safely.

Product Specification
(1). This lift is designed for vehicle less than 3500kgs to test and adjust when do wheel alignment and repair for other parts
(2). This lift is made of mechanical scissor arm, rise and descend vertically, to avoid any move to front or rear
(3). The lift is rise and descend derived by cylinders which inside platform, the hydraulic controller is separate
(4). The control box is made up of motor, oil tank and electrical controller

Technical Data

Max lift capacity	3500kg
Main scissor lift height	1850mm
Second scissor lift height	475mm
Lowest height when descend	340mm
Adaptive vehicle wheelbase	2380-3000mm
Safety device	electrical controlling mechanical lock/pneumatic unlock device
Power	380V/50Hz/3Ph, 1.5kW
Air supply	4-6kg/cm2
Hydraulic oil	20L 46# hydraulic oil, dirty oil is prohibited
Weight	2000kg

Jiangsu Jingzhongjing Industrial Paint Equipment Co., Ltd, is located in the Yangtze River Delta Economic Zone, China Industrial Painting Base, Yancheng city, Jiangsu Province. We have the plant area of 99000m2, garden-style industrial zone. We have the staff of 260, including 20 engineers with 15years designing experience. Our annual production capacity can achieve 2, 500 sets paint booth.

We adhere to the "heritage of big business style, classic gaming counterparts, - creating the world brand" core values. Pursuit high goals, has won wide recognition and praise from the government and the market.

Our products are JZJ Brand spray booth, sandblasting booth, shot blasting machines etc. Our products have passed the ISO9001, EU CE, the products have been shipped in the domestic 34 provinces and more than 50 countries like Germany, Japan, Russia etc.

Our products are well-known in the industrial of the automobile, aviation, military, wind power, nuclear power, engineering machinery, machine tool manufacturing, and other industries.

Welcome the customers from China and all over the world to join us!
