Changzhou Xinder-Tech Electronics Co., Ltd. >> CE Fully Electric Wheelchair Lift for Van with Split Platform (WL-D-880S-1150)

CE Fully Electric Wheelchair Lift for Van with Split Platform (WL-D-880S-1150)

CE Fully Electric Wheelchair Lift for Van with Split Platform (WL-D-880S-1150)
Price: Negotiable/Set
Trade Terms: FOB,CIF,EXW
Min Order: 1/Set
Pay Type: T/T,Paypal,Western Union

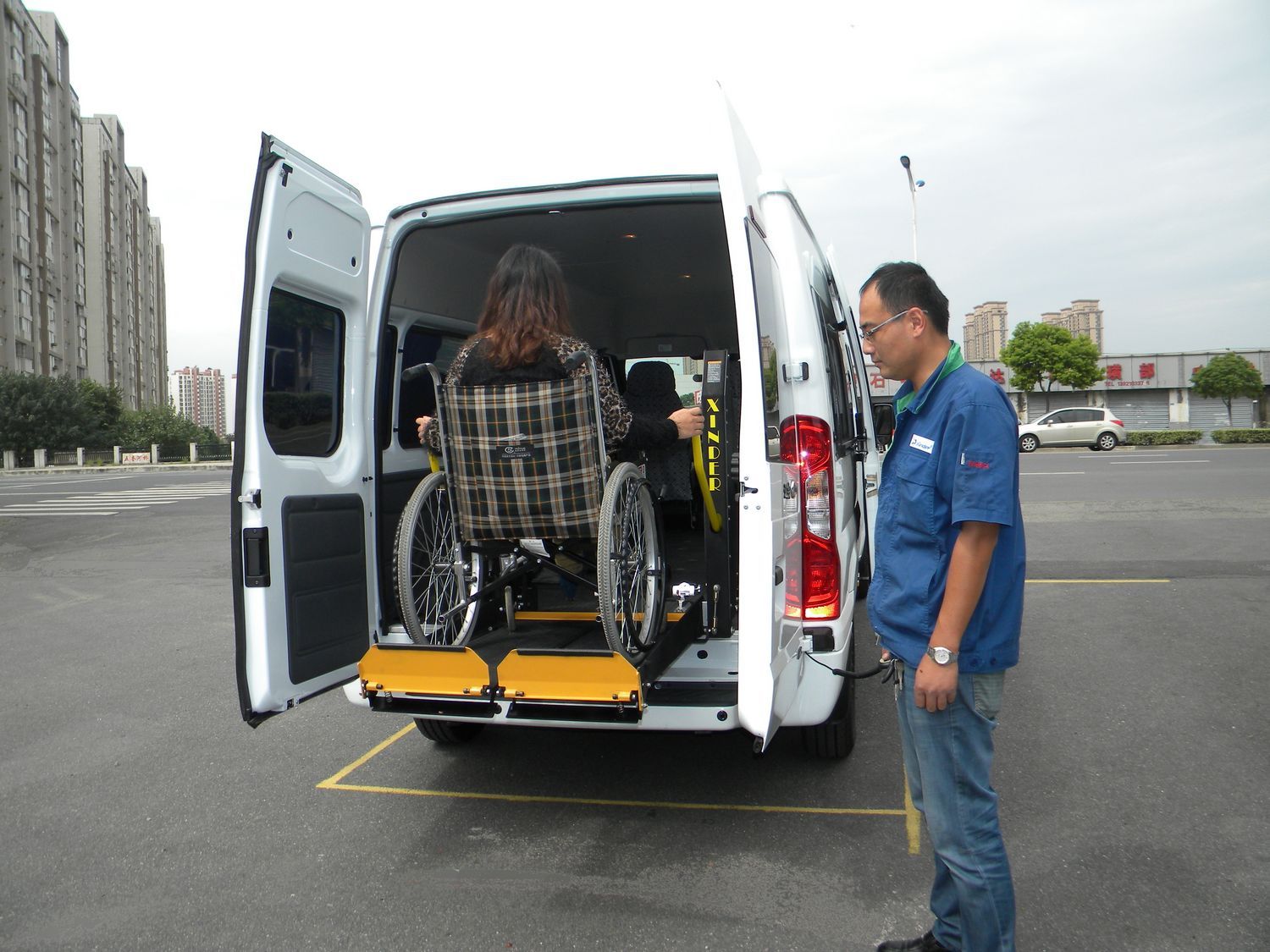

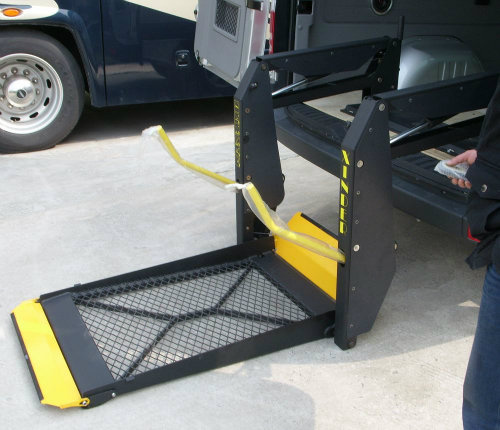

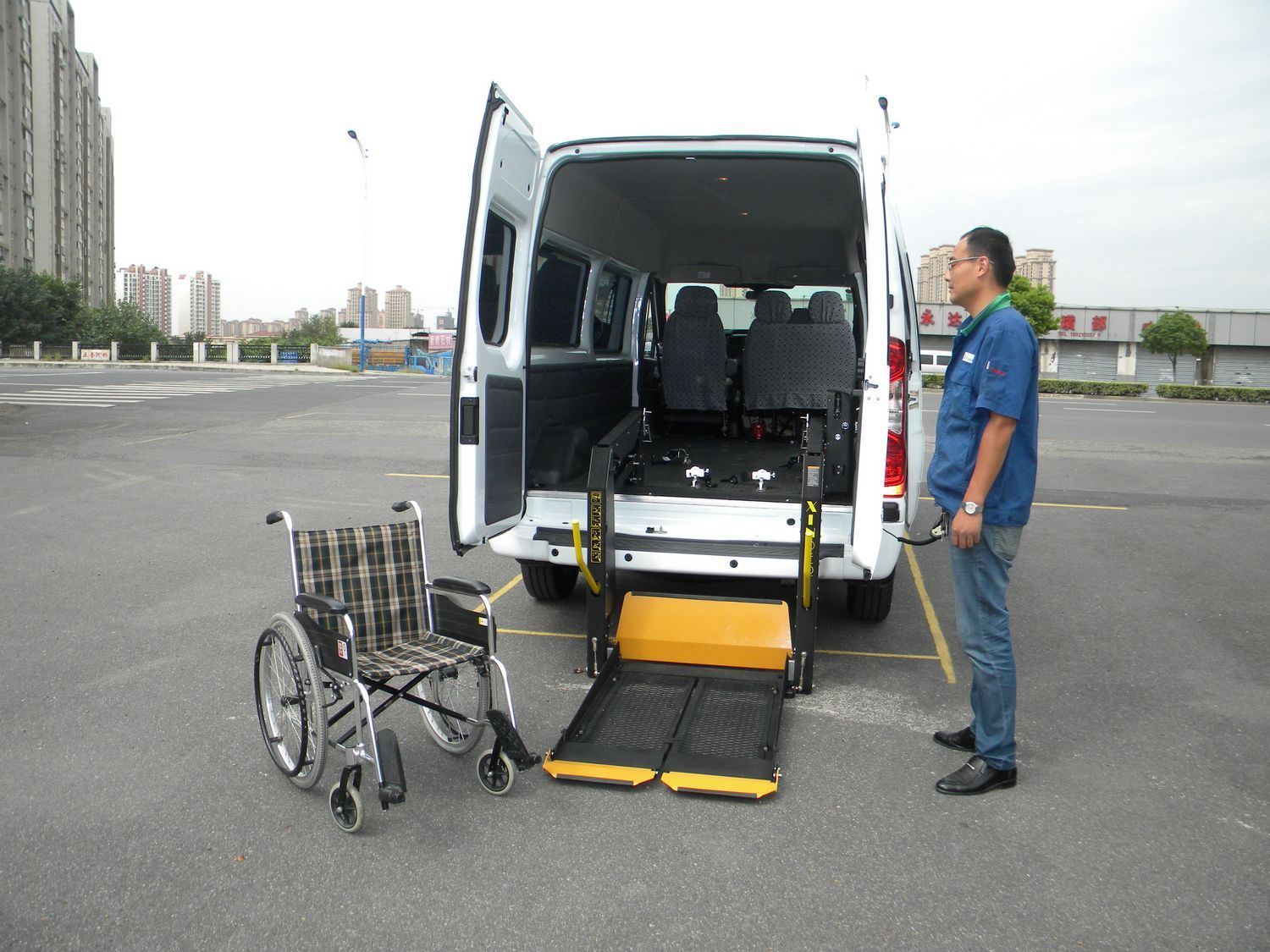

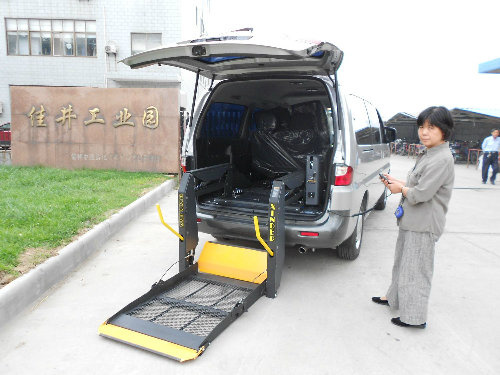

WL-D-880s wheelchair lift
This wheelchair lift gives new meaning to the term accessibility. The fully automatic split platform folds up and out of the way at the push of a button, leaving the doorway clear. The steel frame and powerful hydraulic pump ensure a fast, secure means of entry and exit. You will find the convenient and easy to operate.

Advantages:
. Exclusive split-platform design allows clear access to the vehicle's interior
. Powerful hydraulic pump ensure smooth, stable operation for heavy wheelchairs and scooters
. All-steel frame features convenient handrails for increased comfort and security
. Stable, non-skid platform with automatic inboard and outboard rollstops accommodates most wheelchairs and scooters
. Pre-lubricated bearings at all major pivot points offer long-term durability
. High gloss, polyester powder coat finish resists corrosion
. Built in manual backup system

Details are as follows:
Loading capacity: 350 kg
Own weight: 134 kg
Electric system: 12-24 Volts
Max working pressure: 14 Map
Platform dimension: 1150*720mm
Max floor height: 880 mm
Auxiliary emergency hand pump

WL-D-880 wheelchair lift
The outomatic wheelchair lift offers you dependable accessibility while its trim, compact design maximizes valuable interior space. The lift aslo features a strong durable steel frame built to give you years of dependable service.
There are so many advantages of this product, such as automatic inboard and outboard rollstops, quietand smooth operation, welded all-steel frameare, built-in manual backup system, permanent no-lube bearings at all major pivot points, easy to maintain and so on.


WL-D-880U wheelchair lift
This wheelchair life, with a unique "fold-in-half" design, provides an unobstructed view for the driver, helps to eliminate hazardous blind spots, allows a clear view for the passengers, and is virtually unseen from outside. Moreover, because the flatform folds when stowed, no raised-roof modification for your personal vehicle is required-even when a long platform is necessary for larger wheelchairs and power scooters. The lift is quiet and easy to maitain. There are so mang other advantages:
added safety benefit of minimized blind spots,
unique folding platform accommodating longer platform scooters and wheelchair without requiring raised roof or door,
automatic inboard/outboard rollstops,
stable and compact when stowed,
powerfulhydraulic pump,
built-in manual back-up system

Model WL-D-880-1150 WL-D-880S-1150WL-D-880U-1150 WL-D-880-1250 WL-D-880S-1250 WL-D-880U-1250
 Platform size  1150*720 1150*720 1150*720   1250*8201250*820 1250*820
 overall width 11351135 1135 1235 1235 1235
 overall height 12251225 1130 1225 1225  1130
 overall length 440440 500 440 440 500
 max lifting height 880880 880 880 880 880
 Volt 12-24V  12-24V12-24V12-24V 12-24V  12-24V
 max working pressure 14Mpa14Mpa  14Mpa  14Mpa  14Mpa  14Mpa
 loading capacity 350KG 350KG   350KG   350KG   350KG  350KG
 own weight 134KG134KG  134KG   150kg 150kg 150kg

Packing Conditions: wooden case
Application: van, minivan, minibus. such as Transit, Jinbei, JAC, Benz...
Prod Model: WL-D-880S-1150
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Platform: 1150*720mm
Cetificate: CE
Loading: 350kg
Volt: 12-24V
Max Lifting Height: 880mm
Own Weight: 134kg
Packing Size: Wooden Case, 1.2*0.6*1.4m
Operation: Fully Automatic
Working Temperature: -20~+50
Installation Size Required: 1200*1200mm
Bumper Position: Rear Bumper
Material: Steel
Type: Passenger Wheelchair Lift
Located in Changzhou New North District, Xinder-Tech Electronics (original Xinder Electronics) specializes in designing, manufacturing and selling wheelchair ramps, wheelchair lifts, electric step, manual step, wheelchair restraint system, seat fixing system, manual driving system, electronic accelerator pedal and other disabled products.

Xinder-Tech is the leader company of this line in China, and our products have taken up 90% of inner market. Meanwhile, our products has been exported to may countries, such as France, Italy, New Zealand, Finland, Brazil, Poland, Costa Rica, Korea, Australia, Malaysia, Bulgaria, Turkey, Israel, Philippines, Iran, India, South Africa and so on. Service includes R&D of product, manufacture, system debugging, on-site field visit to customer. Main engineers occupy 40% of staffs, with good experience, and they have been professionally and systemically trained in America, Italy, Malaysia and Brazil.

There are over 3000 ramps used for the Beijing Olympics, over 700 ramps exported to Korea. 100 PCS of WL-UVL wheelchair lift, about 500 PCS of electric wheelchair ramp and more than 1000 sets of wheelchair tie down system to Guangzhou Asia Game.

Our goal is to provide the best solutions for customer's requirements.

Xinder-Tech is an ISO 9001: 2016 compliant company. Our WL-D series wheelchair lift, WL-UVL series wheelchair lift, WL-T series wheelchair lift and ES Series electric step have got CE certificate, and EWR series wheelchair ramp has passed the EMC test, wheelchair tie down system has passed test of ISO 10542-2.

XINDER works in many fields:

1 Electric & Manual Wheelchair Ramp

2 Wheelchair Lift

3 ES Series Electric Step

4 Manual Step

5 Wheelchair Restraint System

6 Manual Control System

7 Electronic Accelerator Pedal

8 Handicapped Electric car

9 Seat Fixing System
