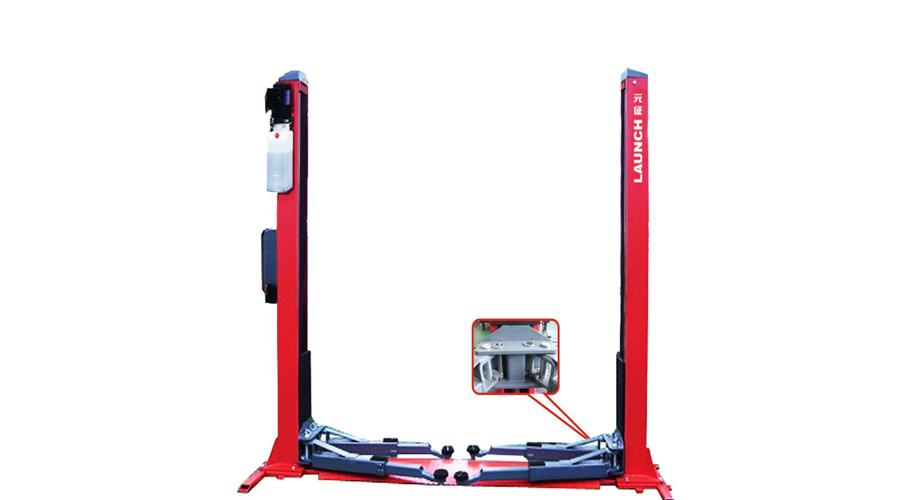

CE certificated Original Launch TLT235SBA(E) 3.5t auto lift 3000 hydraulic car lift

Product Description

This machine is applicable for the lifting of various small and medium-sized vehicles with total weight below 3.5t/4.0t in garage and workshop.

Basic parameters of the equipment:

TLT235SBA(E) Features

Fully automatic unlocking safety device is adopted for operating only with UP/DOWN button.
Wide floor plate design.
Sunken arm design, with minimum lifting height of 110mm.
The cable and oil pipe are fully concealed; with decent and elegant appearance.
Cover plates for cylinder and steel cable are attached in order to protect operator's safety.
Double hydraulic cylinder and high strength chain drive makes stable and smooth lifting and lowering.
Wire rope equalization system forces synchronous movement of two carriages and effectively prevents vehicle from tilting.
24V low voltage control box(IP54 level)ensures operator's safety.
Cylinder travel limit switch effectively protects cylinder and extends its lifespan.
Emergency lowering valve can be manually operated to make lift lower safely in case power is off.
Anti-explosion valve is deployed to make lift slower or stop lowering for the case of oil pipe explosion ,thus protects operator's safety and vehicle not being damaged.
CE-STOP function with safety alarm beep would automatically warn operators to keep safe distance from lift when it lowers to about 250mm high from ground.
Door rubber pad protects car door from being damaged in collision.
More lifting pads with different height meets the requirements for light lorries and SUVs.
Passed 115% dynamic loading test and 150% static loading test
CE certificated.

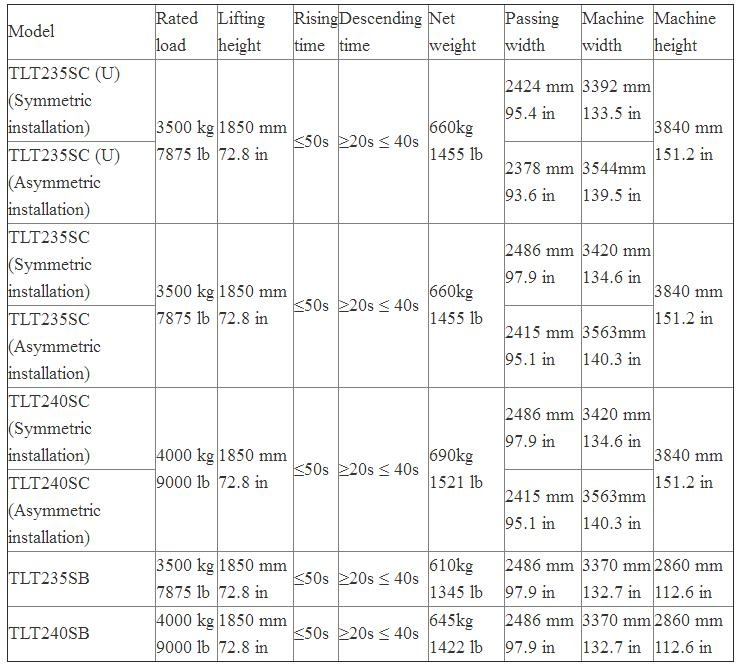

TLT235SBA(E) Parameters

Rated load:   3500kg
Lifting height:   1850mm
Initial height:   110mm
Lifting time:   less than or equal to 50s
Lowering time:   between 20s and 40s

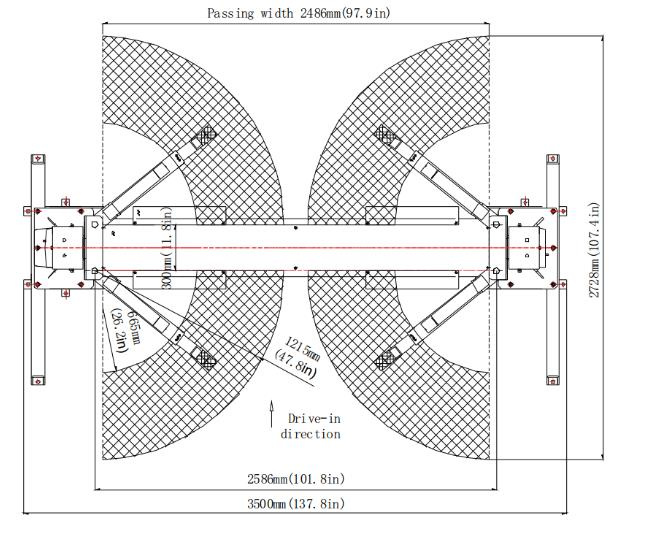

Passing width:   2486mm
Overall width:   3400mm

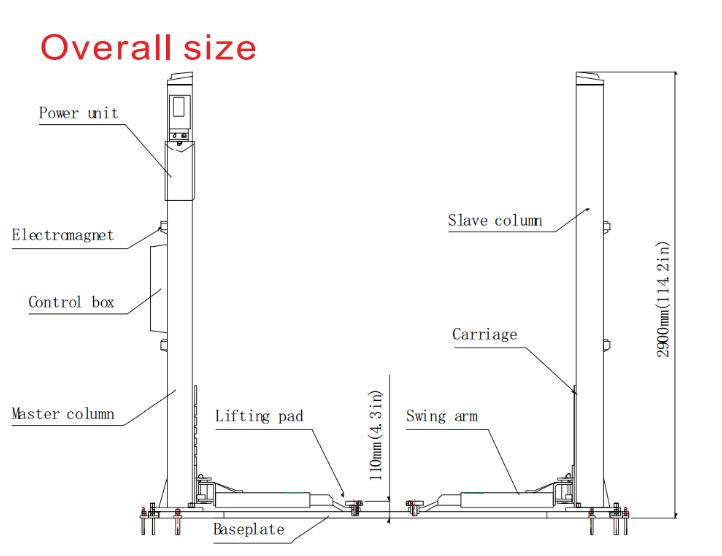

Overall height:   2900mm
Motor power:   2 .2kW
Motor voltage:   3 phase/380v or Single phase/220V
Working noise:   75dB(A)
Working oil pressure:   16M Pa

Prod Model:	TLT235SBA(E)
Type:	OBD2 Car Code Reader
Model Number:	Tlt235sba(E)
Warranty:	1 Year
Lifting Height(mm):	1850mm
Motor Power:	2.2kw
Overall Height:	2900mm
Lifting Time:	Less Than or Equal to 50s
Working Oil Pressure:	16m PA
Lowering Time:	Between 20s and 40s
Working Noise:	75dB(a)
Certification:	CE
Update Method:	by Internet
Testing Equipment Type:	Diagnostic Tool
