Ce Approved Diesel Riello G20 Burner Car Spray Paint Booth Price (GL1000-A1)

Ce Approved Diesel Riello G20 Burner Car Spray Paint Booth Price (GL1000-A1)
Price: US $ 2000-27580/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Money Gram

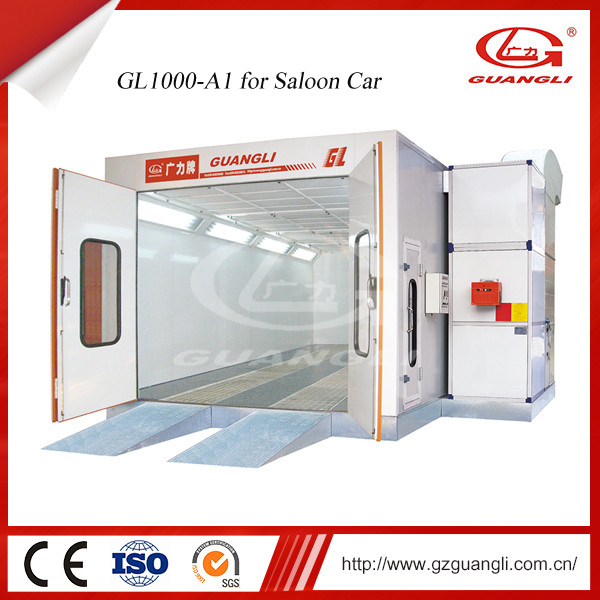

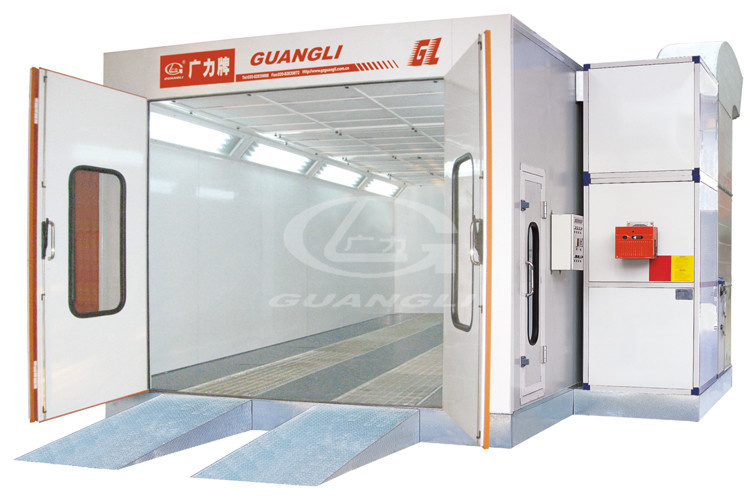

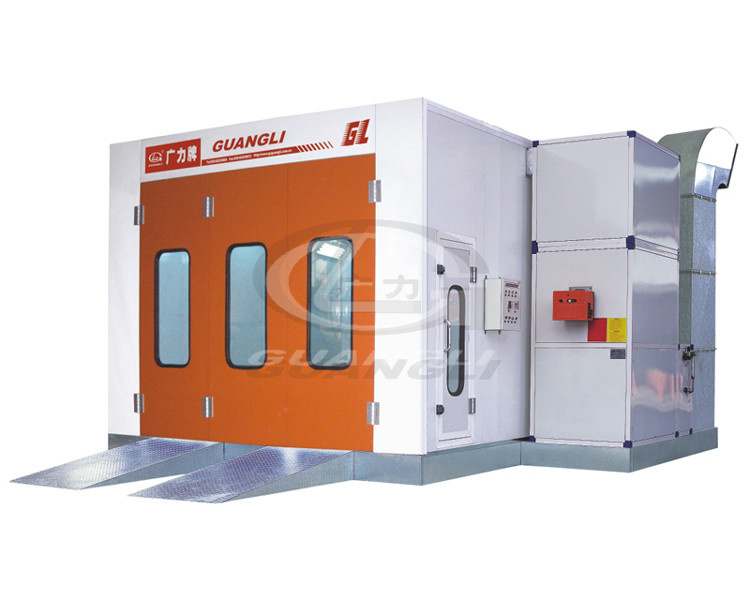

CE Approved Diesel Riello G20 Burner Car Spray Paint Booth Price(GL1000-A1)

GuangLi Spray booth Feature

--Wall panel: sandwich style, δ=50mm, rock wool,polystyrene is available as required.
--Basement: steel structure, 3 rows of vein board and 2 rows of grids, full grids as optional.
--Door: 3 pcs of front door without aluminum side cover.
1pcs of emergency door with pressure lock.
--Ramp: 2 pcs of vein board.
--
One unit of 7.5kw intake fan and one unit of 4kw exhaust fan.
--4m straight exhaust ducts, one 90° bend, and one 60° bend.
4m straight chimney and 2 small bends.
--Spraying/baking transition damper, automatically air controlled.
--Heat exchanger: stainless steel. riello G20 burner.
--Roof filter: 4 pcs of filter, mounted above support frame, which is made of steel and powder coated.
--2 pcs of floor filter and 1 pcs of air mouth filter.
--Upper light: 10 sets, 4*40w per set.
--Control box: components made in china, overload, overheat,phase-lacking protection, engine Y star-delta start.
--Automatically stop when preset time is up.

--Constant temperature spraying.

ModelGL1000-A1
External size (m)7.0X5.3X3.5
Internal size (m)6.9x3.9x2.7
Entrance width(m)3.0
Entrance height(m)2.66
Fan capacity(m3/h)24000
No-load air speed(m/s)0.25-0.35
Air ventilation (times/h)265
Drying Temperature60-80
Oil consumption (L/unit)6-8
RemarkWater based device as option
Power (kw)13.5
Suitable Automobile TypeCar

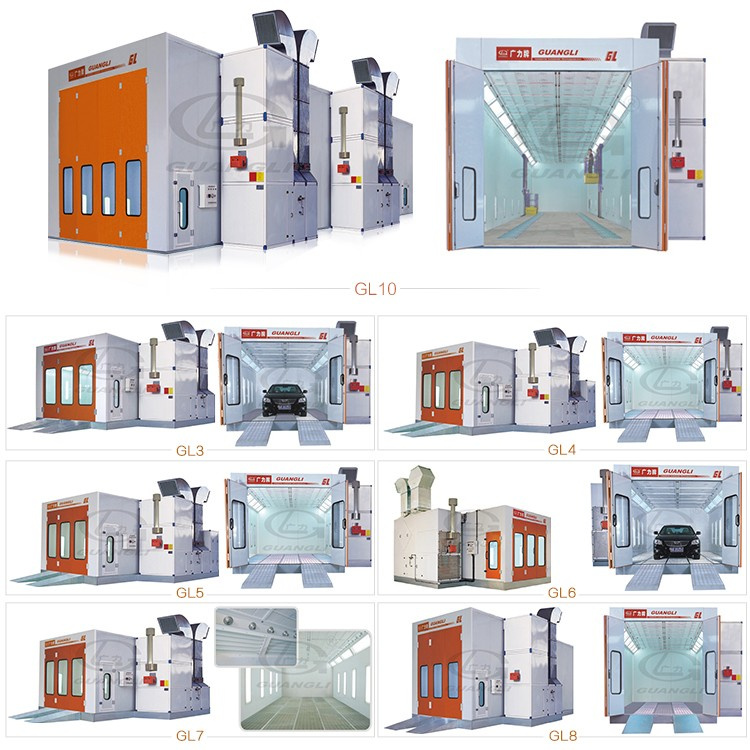

Guangli Spray Booth Show




Why Choose Us

1.More than 20-year experience in Spray booth and car lift field.

2.Superb unique technology and Automatic production line.

3.Large order can be placed.

4.Advanced equipment and exquisite workmanship.

5.Durable and reliable.

6.Good pre-sales and after-sales service.

Our Other Products

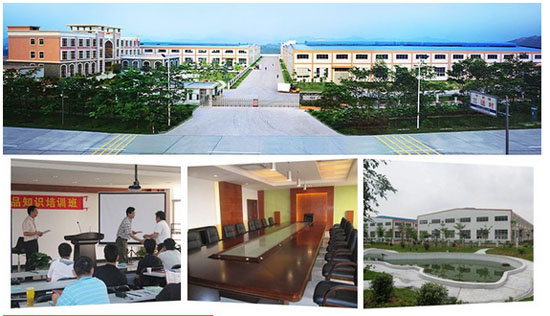

Company Information

GZ GUANGLI EFE CO.,LTD is the first and the largest auto spray booth manufacturer in China, having a good reputation among Chinese auto-maintenance enterprise. The sales volume of spray booth ranks top in this field over years.

GZ GUANGLI EFE CO.,LTD is a  professional spray booth and car lift manufacturer in China wtih  more than 22 years technical and production experience.
Founded in 1994, Guangli has our own enterprise headquarters, which covers 58,000M2of grounding area.
Our products have been approved and authorized in many car manufacturers' and thought highly of:Guangzhou Honda,Dongfeng Honda,FAW Toyota,Dongfeng Peugeot,Dongfeng Nissan,BMW South China etc.

Certificate

Our products spray booth and car lifts have got CE certificate and our company has passed ISO9001.

Equipment

We have imported a Full-auto production line and many facilities from Europe, owning the most advanced production equipment in China.

FAQ

Q:Where is your company located? How can I visit there?

A:Our company is located in Guangzhou.All clients, from home and abroad, are warmly welcomed to visit us.

Q:How about the quality of the products?

A:With the advanced machines, strong and professional R&D team and material sources,our products are excellent in performance and craftsmanship.

Q:Can we customize our product?

A:Yes,you can.Customized material and standard are acceptable. We can provide different standards according to your market and favor.

Q:What's the MOQ for each items?

A:We accept one piece/set each time.

Q:What's the delivery time?

A:If the product you ordered is our standard configurations, it's 7 workdays.

Warmly welcome to Contact
Sunnie Di
Tel:+86-20-86569629
Mobile:+8613925061383
Website:www.gzguangli.com
Prod Model: GL1000-A1
External Size(M)(Lxwxh): 7.0X5.3X3.5
Internal Size(M)(Lxwxh): 6.9X3.9X2.7
Door Width(M): 3.0
Door Height(M): 2.66
Air Flow (M3/H): 24000
Inside No-Load Air Speed(M/S): 0.25-0.35
Usage: Car Painting Baking
Heating System: Riello G20 Diesel Burner
Filters: High Efficiency Filter
Service: Oversea Service Is Available
Certification: GS
Airflow Direction: Cross-flow Type
Heating Mode: Electric
Paint Mist Treatment: Dry-type
Condition: New
Type: Spray Paint Booth
Brand: Guangli
Founded in 1994, Guangli Electromechanical Engineering Facilities Co., Ltd. is the first automobile spray booth manufacturers in China. Now the largest one in South China in this line. GUANGLI has our own enterprise headquarters and production base, which covers 58, 000M2 of production area and36, 000M2 of building area. With the advanced machines, strong and professional R&D

Team and material sources, our products are excellent in performance and craftsmanship.

We have employees about 300, among which are over 60 technical Engineers. Our main products is spray/baking booth, auto post lift, powder coating production line, automobile lifts tester and cleaner for electronic nozzle, dustless workshop, washing units etc. We have two brands about these products, Guangli and Ritian.

Ritian Electromechanical Engineering Facilities Co., Ltd. is a professional marketing company selling GuangLi /Ritian brand auto maintenance equipment and other special tools home and aboard. It has two permanent exhibition halls at Guangzhou and is an agent to market many famous domestic and foreign equipments and tools for automobile Repair. Ritian Company has more than 60 marketing employees who are ready at all time to provide automobile repair workshops and service station with desired services. Our products are not only well sold at home, but also enjoy a good reputation worldwide such as USA, Japan, Australia, New Zealand, Germany, South Africa, Russia, Thailand, Burma, Vietnam, Saudi Arabia, Yemen, Cambodia etc. In consentience with high-quality policy, we passed ISO 9001 when established our factory. Furthermore, after years of dramatic development, Guangli is distinguished as one of the best auto maintenance equipment manufacturers. Looking forward, Guangli will be insisted in high-quality policy, optimize customer service, focus on innovation, upgrade administration level, confront changes with full confidence.
