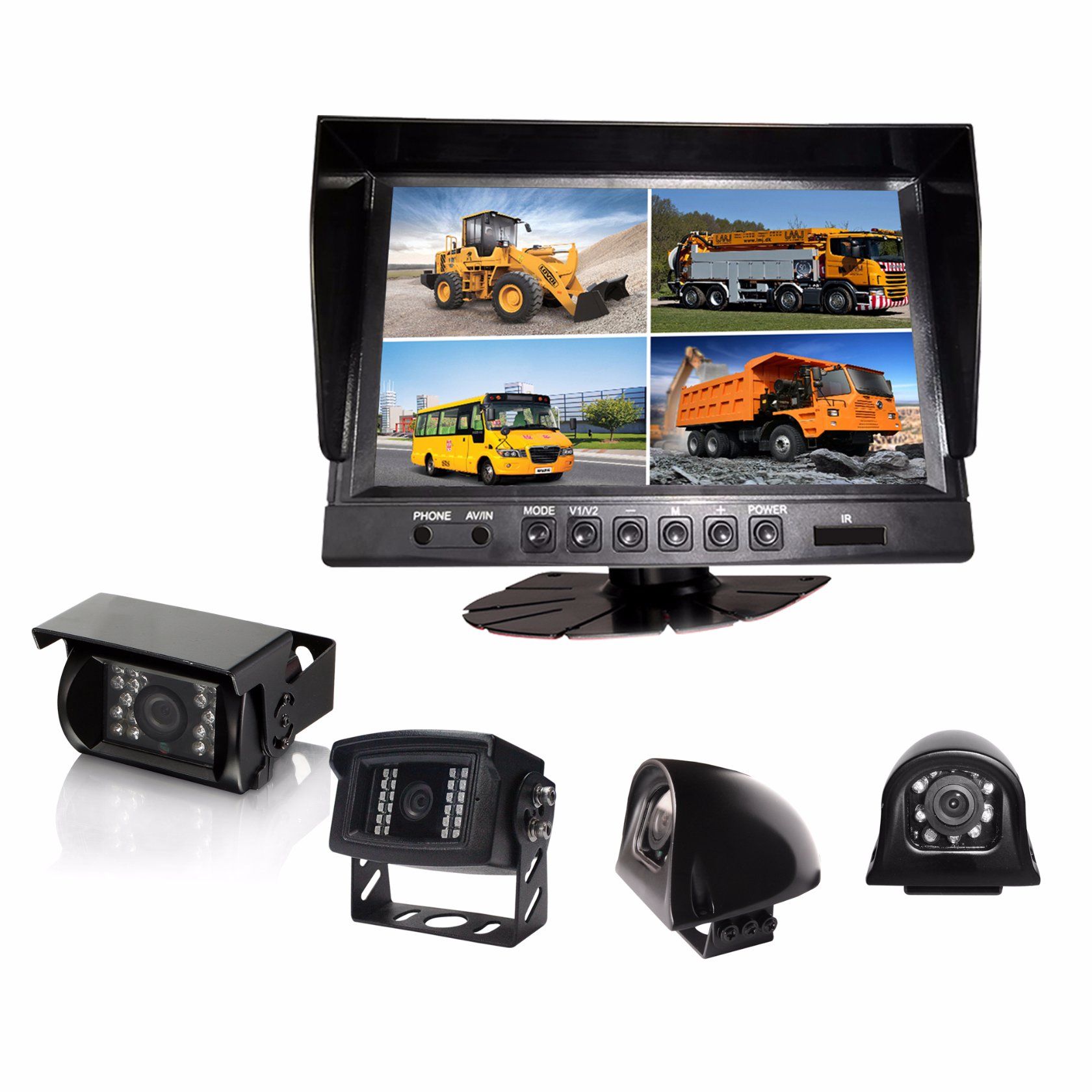

CCTV System with Digital Color LCD Quad Monitor and Super Wide Viewing Camera

Name: CCTV System with Digital Color LCD Quad Monitor and Super Wide Viewing Camera
Brand: ibuyautoparts.com
SKU: 820507945
Availability: InStock
Rating: 4.8 (34 reviews)

Price:	US $ 210-220/Piece
Min Order:	1/Piece
Pay Type:	T/T,D/P,Western Union

Contact Supplier

Showroom Product Company Profile

1. 9" quad backup system with 4CHs AV in
2. Automatic switching with three triggers
3. Single, dual, triple, quad image available
4. Mirror function for each camera can be separately set up
Supply voltage 10-32V DC and built in speaker
5. Dust and waterproof design, all connectors are waterproof
6. Meet the requirements for hot, cold weather also shock and vibration
7. 20G force for vibration and 100G for shock with industrial applications
8. Normal/mirror mode built in for each camera
9. Auto on when vehicle is placed in reverse
10. With USA imported IC and Techwell industrial digital video processor
11. Short-circuit protection circuit design, avoid mistake connecting leading to the monitor's circuit damage

Specification of 9" LCD monitor: (LED digital panel)

1. Resolutions: 800 x 3 (RGB) x 480
2. Ontrast: 300:1
3. Pixel pitch: (H) 0.0825 x (V) 0.2327
4. Viewing angle U:60/D:70, L/R: 75
5. Brightness: 350 nits
6. TV system: PAL and NTSC
7. Respond time: 30ms
8. Picture display format: 16:9
9. Eight languages OSD menu: Chinese, English, Russian, German, French, Italian, Portuguese and Spanish
10. Display with three video frequency input automatic/manual switcher
11. Includes flat surface/in-dash and adjustable universal mounts
12. Front panel controls with on-screen menu
13. Operating temperature:- 30 to +70°C

Specifications of camera:
1. Color sensor
2. Waterproof: IP69K
3. System: NTSC: 768x494, PAL: 752X582
4. Resolution: 600 TV Lines
5. Minimum light: 0 Lux (LED on, 18 pieces IR)
6. Electron shutter: 1/100,000(s), on/off
7. S/N ratio: more than 48dB
8. Video output: 1Vp-p 75Ω
9. Voltage: 24V DC (±10%)
10. Vibrations resistant

Prod Model:	MS-792RSQ
Screen:	9inch
Video Inputs:	4-CH Inputs
Brightness:	400CD
Speaker:	Yes
Operating Temperature:	-20ºC to +75º
Certification:	Emark,FCC

Mingshang International Group has its head office in the Shenzhen China and consists of Shenzhen mingshang industrial co, Ltd, Mingzong technology co, Ltd and Mingshang high technology(huizhou) co, Ltd

Found in 2003, Mingshang has produced excellence car visual safety solutions to the worldwide vehicles markets, is the one of China's leading suoopliers of backup camera system, Rear view camera system, mobile DVR and so on.

MINGSHANG is one of China's leading suppliers and manufacturers for Wired and Wireless Rear View Camera Systems, and Mobile DVR for

- Commercial and School Buse

- RV's and Motorhomes.

- Cargo and Delivery Vans.

- Trucks and Trailers.

Products:

1. Trailer camera system

2. Forklift camera system

3. HD heavy duty camera system in wired and digital wireless

4. Mobile DVR

5. Wireless hitch camera system---for trailer, horsebox, caravan, forklift, Boat

6. Recordering 4CH wireless camera system

MINGSHANG has over 14 years of experience in designing and developing visual safety systems for eliminating blind spots around vehicles to avoid the challenges that today's vehicles drivers face out on the open road.

MINGSHANG is proudly to server Ford, GMC, YUTONG BUS, KINGLONG, and Dometic (Waeco).

MINGSHANG certified with TS16949: 2009 & ISO9001: 2008 International Quality Management System since 2011, also compliant with RoHS requirements. The certificates include CE, FCC, and E-MARK...etc.
