Cc690 Tunnel Smart Car Wash Machine Tunnel Fully Automatic Car Washer

Cc690 Tunnel Smart Car Wash Machine Tunnel Fully Automatic Car Washer
Price: US $ 39980-56200/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union

Qingdao Risense Mechatronics Co., Ltd.
Since Jan 1st, 2010, Risense has been introducing technical information, production and inspection standard, technical engineers and key spare parts from technical-advanced counterparts abroad in order to manufacture the state-of-the-art car wash machine equipped with CPU, which is qualified to complete the car wash procedure precisely and have such subsidiary functions as LED screen, voice guiding, detailed data management, car wash printer and so on.

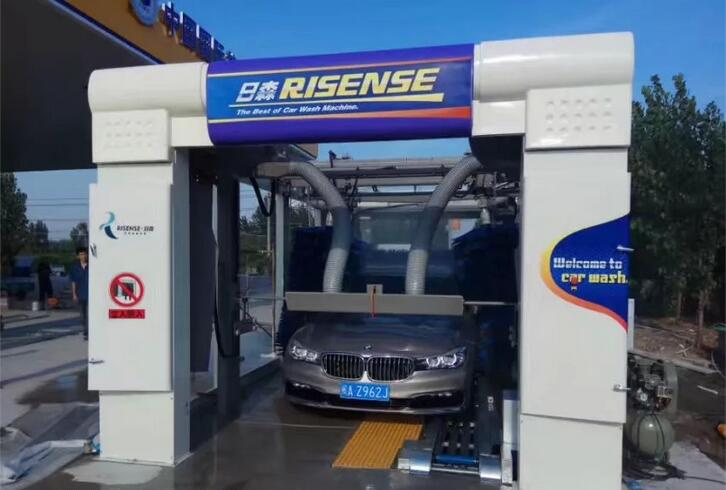

Fully automatic tunnel car wash machine
Risense automatic tunnel car wash system is equipped with such advanced technologies as synchronous tire sensor to guide the car into the car wash machine, wheel guild-rail conveyor which can shorten the space, the Japanese second-generation super-soft flannelette brush and foam brush as well as top profiling air-dry. And it also has other features as follows:

1)  High pressure water pre-washing
2)  Shampoo(foams) sprinkling and wax washing systems

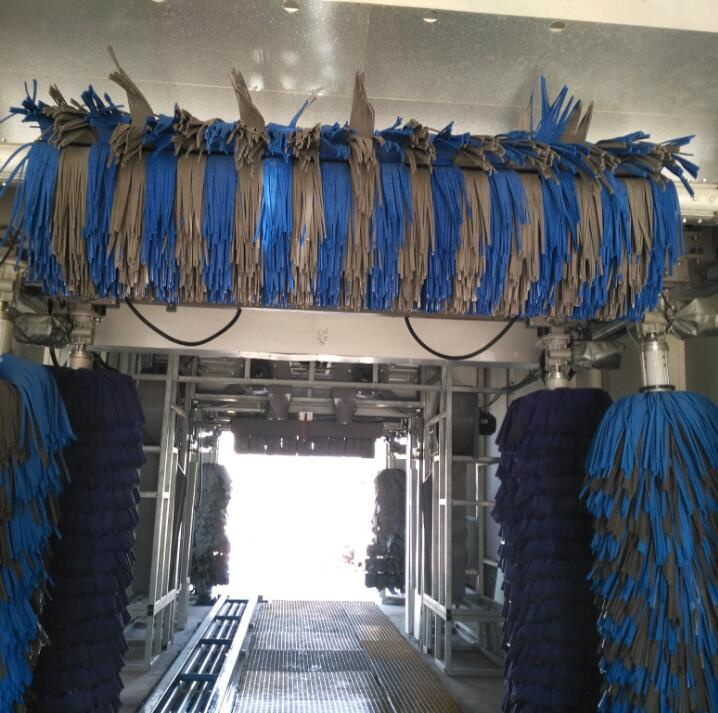

3)  Seven to fourteen brushes with foam material and lifelong warranty
4)  Three blowers dry the car body completely and precisely
5)  Three polishing brushes with chamois leather
6)  PLC control system & humanized operate panel
7)  Intelligent avoidance system to wash all kinds of car types
8)  Main technology and machine design from Japan
9)  Electroplated conveyor equipped with the corrector device
10) Hop-dip galvanized steel frame keep the whole machine antirust
11) Motors, electrical apparatus, pumps all imported from abroad
12) With one year warranty and lifelong maintenance service
13) Technician to customer site installation and maintenance training

Specification ..................
ModelCC-695CC-693CC-690CC-670
Machine dimension17.6x3.8x3.4m11.6x3.8x3.4m9.5x3.8x3.4m8.4x3.8x3.4m
Conveyor length19.2m13.2m11.2m9.9m
Assembling range17.6x3.8m13.3x3.8m11.2x3.8m9.9x3.8m
Available size for car5.3x2.2x.2xm5.3x2.2x.2xm5.3x2.2x.2xm5.3x2.2x.2xm
Available car to washcar/jeep/coach within 10 seatscar/jeep/coach within 10 seatscar/jeep/coach within 10 seatscar/jeep/coach within 10 seats
Main voltage380v 3phase 50HZ380v 3phase 50HZ380v 3phase 50HZ380v 3phase 50HZ
Total power40kw37.82kw37.02kw34.02kw
Water supplyDN25mm water flow rate≥200L/minDN25mm water flow rate≥200L/minDN25mm water flow rate≥200L/minDN25mm water flow rate≥200L/min
Air pressure0.75-0.9MPa Air flow rate≥0.6m³/min0.75-0.9MPa Air flow rate≥0.6m³/min0.75-0.9MPa Air flow rate≥0.6m³/min0.75-0.9MPa Air flow rate≥0.6m³/min
Water/electricity consumption180L/car  0.66kw/car150L/car  0.66kw/car150L/car  0.66kw/car150L/car  0.58kw/car
Shampoo consumption10ml/car10ml/car8ml/car7ml/car
Water Wax consumption12ml/car12ml/car12ml/car12ml/car
Washing time1'12''/car1'12''/car1'12''/car1'12''/car
Car wash capacity40-50cars/hour40-50cars/hour50-60cars/hour50-60cars/hour
Top brush1 set1 set1 set1 set
Big side brush4 set4 set4 set4 set
Small side brush4 set4 set4 set2 set
Wheel brush2 set2 set//
Dry brush3 set///








Risense Automated Car Wash Machine have a proven, time-tested track record in providing solutions for:
1. Car wash center
2. Motor beauty shop
3. Car service and repair center
4. Auto 4S shops
5. Gas station
6. Parking lot
7. Hotel and Hospital
8. Community services center
9. The construction industry
10. Industrial wash down

Package and shipments
1. All car wash machine packaged by seaworthy case or pallets.
2. Within 15-20 days after getting 30% payment will be delivered.
3. Then load the container by sea to you side.

FAQ
Which service will you offer?

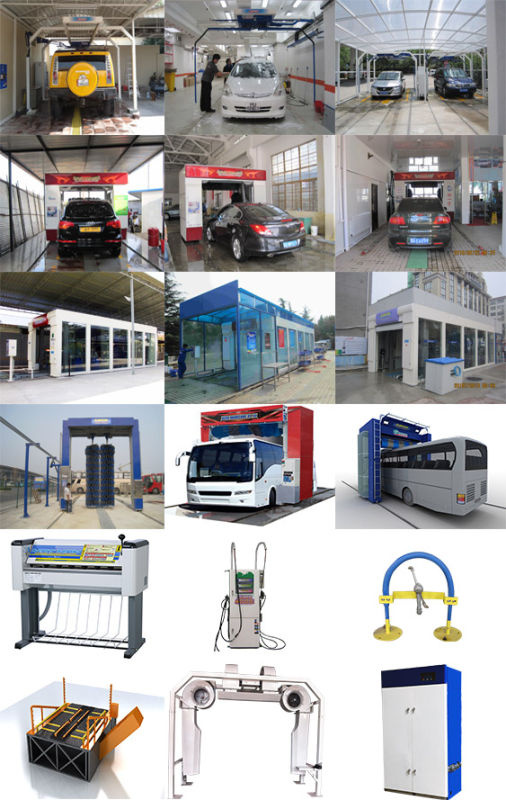

1. Beside to manufacture touch-free car wash, rollover car wash, tunnel car wash, bus and truck wash, wheel wash system with our own brand. We also offer ODM and OEM from all customers' requirements.
Who will install my car wash?
2. We offer you the construction design drawings for your car wash bay, then we will send our engineer to your side to install and operation training.
How long will the machine quality guarantee?
1. We have made the car wash machine running-in times before leave factory, and the failure rate is approaching zero, for the pumps, motors and electronic control panel systems all form Japan.
2. The whole car wash machine guaranteed one year, and parts of components guaranteed 2-3 years. The wearing parts will offer you additional, such as wheels, chains and nozzles.
3. The working life of the car wash can up to 15-20years.



Prod Model: CC-695-040
Overall Dimensions: 9500X3800X3440mm
Assembling Range: 11600X3800mm
Moving Range: 11600X3800mm
Available Size For Car: 5200X2150X2200mm
Available Car To Wash: Car/Jeep/Coach Within 10seats
Washing Time: 1'12"/Car
Fuel: Electric
Certification: ISO14000
Material: Metal
Condition: New
Function: Shampoo Washing
Since Jan 1st, 1998, Risense has been introducing technical information, production and inspection standard, technical engineers and key spare parts from technical-advanced counterparts abroad in order to manufacture the state-of-the-art car wash machine equipped with CPU, which is qualified to complete the car wash procedure precisely and have such subsidiary functions as LED screen, voice guiding, detailed data management, car wash printer and so on. The advanced technology reaching the same level of foreign counterparts and the technical elites cultured by the Risense with the support of cooperative partners ensure the quality of products and make them the best-sellers. Since the date that our products entering the market, Risense has built its reputation as the high-end technical innovation enterprise with its strong technical capacity holding a safe lead of more than 15 years against other insiders and applause of customers for the quality and operational security of products.

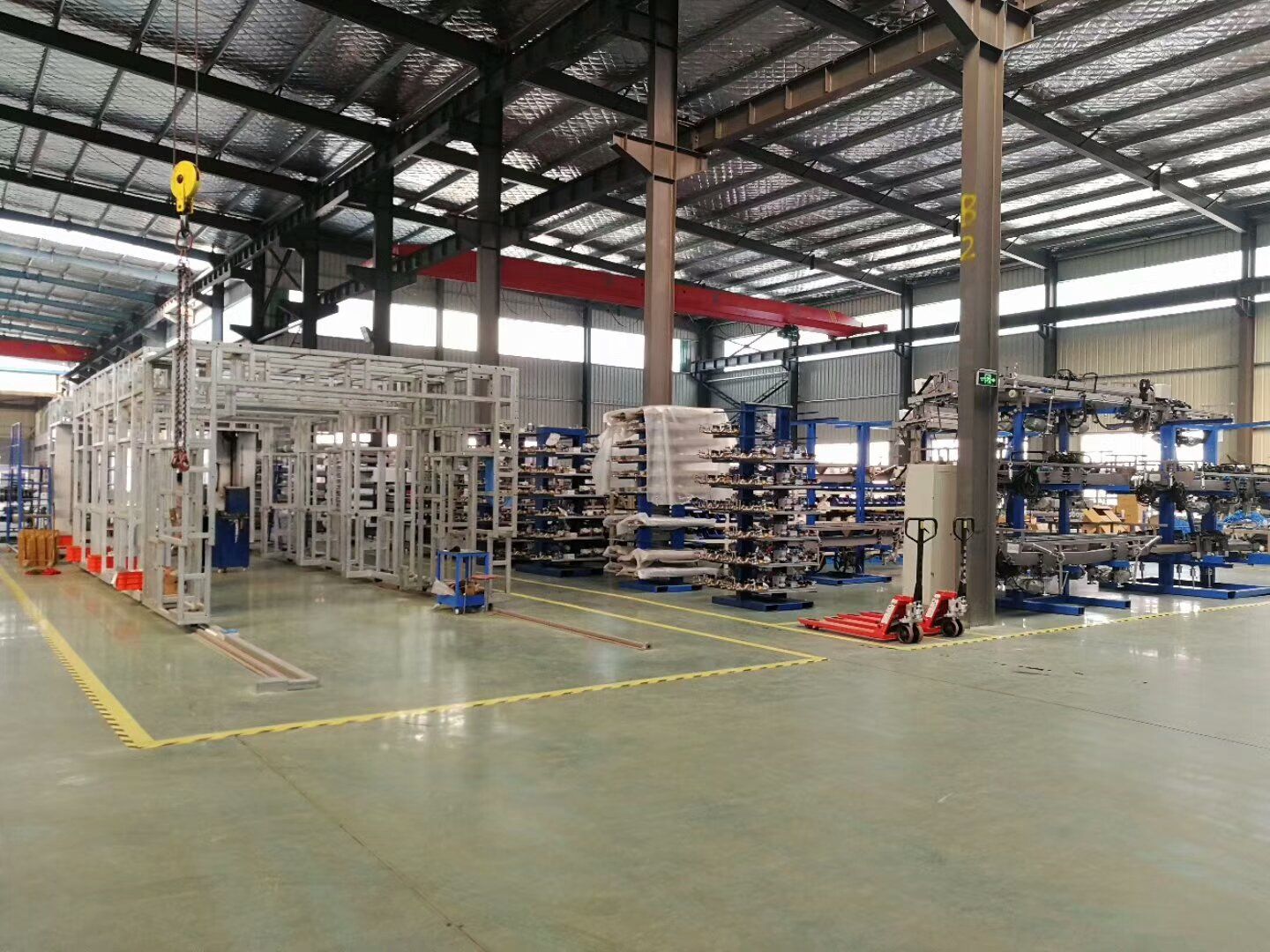

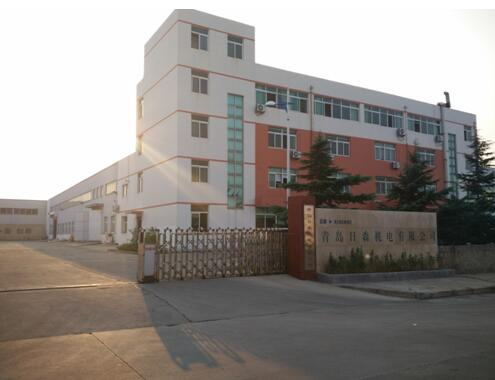

Located at Haier Industrial Park of Economic and Technological Development Zone, Qingdao, Risense covers a total area of 40 mu with floor area of more than 10000 square meters and plants in service of more than 7000 square meters. At present, Risense boasts to possess more than 120 personnel, including 32 senior technicians and the annual production capacity of 1000 car wash machines.

To answer the urgent call of customers, Risense has been launching a series of high-tech and high cost performance car wash machines since March, 2010 to effectively meet customer demands of less manpower, high efficiency, water conservation and environmental protection.
