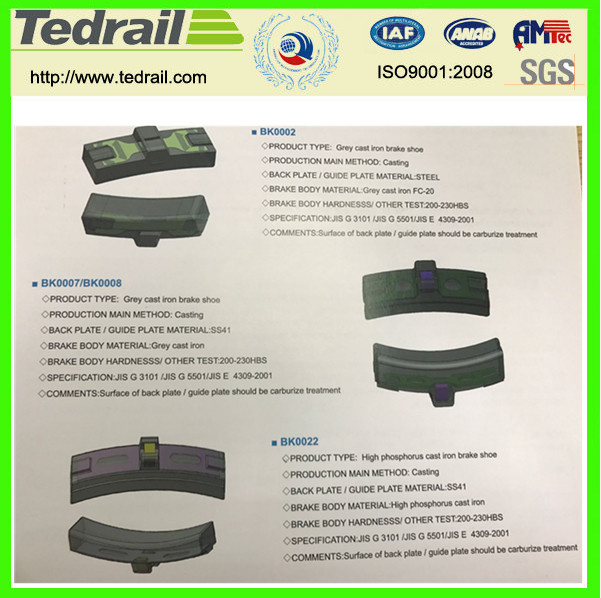

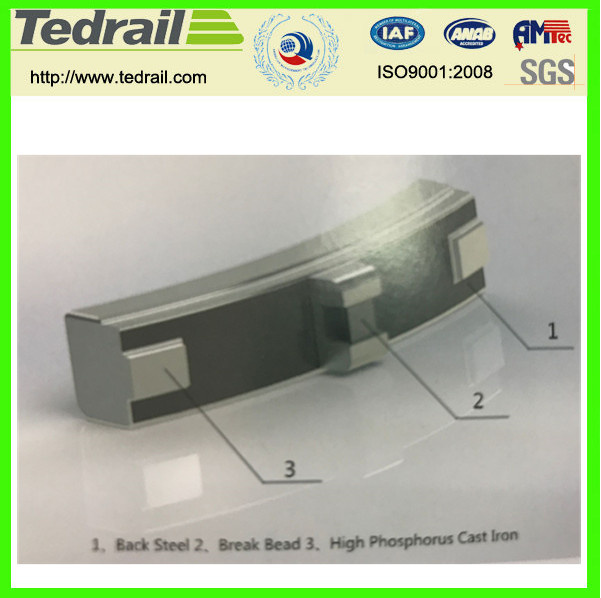

The brake shoe carries the brake block.The block was usually made of cast iron or composition material.When the brake is applied, the shoe moves and presses the block against the tread of the wheel.This scrubbing causes wear and tear on the wheel tread and often causes brake squeal.Tread brakes on passenger train have now largely been superseded by disc brakes.Locomotive brake shoes are available in both composition and cast iron material according to AAR M-926.Various size are available to suit your locomotive application. Our brake shou design and manufacturing materials help mitigate broken steel backs,friction material delamination and metal pickup,leading to fewer premature brake shoe removals.
Product Features
1.For the speed of train:less than 100km/h.
2.Back Plate or Brake Shoe Support is made by cold stamping,material as mild carbon steel GB/T 700-2006 Q235B.
3.For the UIC Code:
Material could be P10 according to UIC 832-2004 with pearl structure and Brinell hardness of 197 to 255HB.
4.For the Chinese Railway Specification,material requirement as TB/T 1661 and TB/T 3104 is as followings.
| Iron Material | C(%) | Si(%) | Mn (%) | P(%) | S(%) | Cu(%) | Cr(%) | Tensile Strength(MPa) | Hardness
(HB) |
| Grey Casting Iron | 2.9-3.5 | 1.8-2.2 | 0.6-1.2 | ≤1.0 | ≤0.15 | ------- | ------- | ≥150 | 179-255 |
| High Phosphorus Cast Iron | 2.8-3.6 | 1.5-2.2 | 0.8-1.2 | 1.3-2.0 | ≤0.15 | ------- | ------- | ≥150 | 179-255 |
| Alloy Cast Iron | 2.8-3.6 | 1.28-1.8 | 1.2-1.9 | ≤0.15 | <0.07 | 0.4-1.0 | 0.3-0.9 | 200-320 | 200-260 |
Test Certificates includes:
Chemical Analysis Geometrical Characherisics
Brinell Hardness Impact Test,Texture and Support Resistance if necessary
Bend Test for shoe steel support
Micrography Appearance,Soundness and Marking

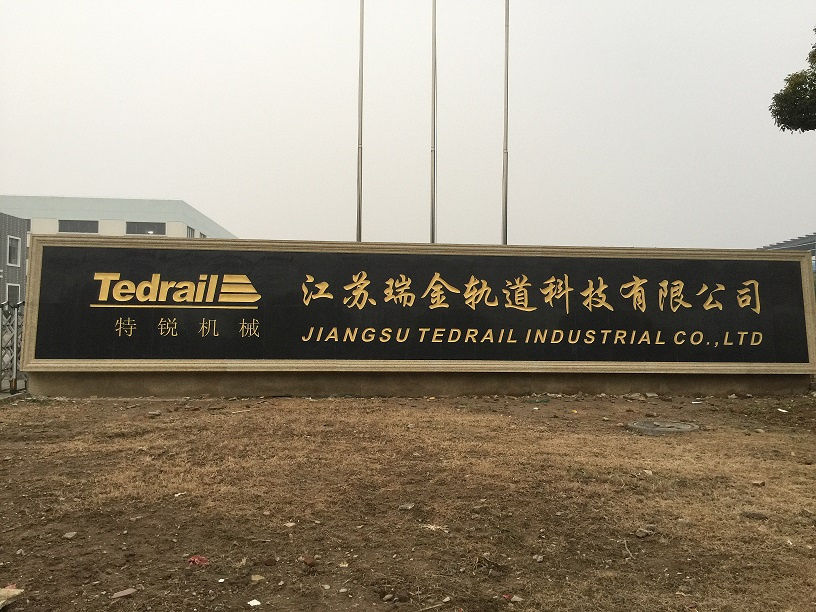

Jiangsu tedrail industrial co.,ltd is a high -tech enterprise intergrating railway passenger cars ,metro vehicles ,railway vehicle and rail fitting design and manufacturing .the company is committed to provide customers with the railway passengers transport system,railway freight system solutions ,the company has an experienced railway vehicle design team and ready to provide users with fast ,high-quality services at any time .the company products have been exported to the United States ,South Afric ,Brazil ,and other countries .covering the vehicle ,bogie and accessories ,coupler and accessories .gangway ,seat ,luggage rack ,air conditioning ,driver operation desk ,electrical cabinets ,electric connectors ,PIS system,FRP composite materials.
Tedrail can supply most of railway products, such as Bogie parts, Wagon parts, Coach parts, Locomotive parts based on customers' requirements. We have a professional technical and quality assurance team, well understanding of international railway products standard or specification, expert in design, manufacture, and inspection for railway products. With our experienced and educated business team, Cooperated with Chinese railway industrial university, Tedrail has got most valuable technical support and knowledge base.
Tedrail is focused on the complete solution of railway industry, and interested in sharing experience and cooperation with all parties in the world.
Our Team
We have a strong technical team, lots of them have been engaged in the production line for many years, with a more profound experience about production and processing of products.
Our team comprises:
Management Team
Senior Engineer
Engineer
QA Team
Workshop staff
QA Team
We have a professional technical and quality assurance team, well understanding of international railway products standard or specification, expert in design, manufacture, and inspection for railway products. We will make sure give customers best design and most reliable and safe products. With our experienced and educated business team, Tedrail give customers easiest and convenient business service.
Our railway industrial products are tested:
1. Chemical Analysis
2. Metallographic
3. Mechanical Analysis
4. Ultrasonic Testing
5. Magnetic Testing
6. Impact Testing
7. Hardness Testing
8. Surface Quality
Customer Satisfaction
For attaining customers' satisfaction, we manufacture and supply superior quality railway products that are cost efficient and highly durable. Our railway products are manufactured by using superior quality raw materials and checked by our quality analysts at every level of production process. Our range of products is widely acknowledged by our customers because of its quality and effectiveness.
Why Us?
We are one of the most promising organizations who have achieved a leading position in this domain due to the following factors:
Rigorous quality control measures
State-of-the-art infrastructure
Ethical business policies
Experienced professionals
Wide distribution network
Team of skilled personnel
On time delivery
