Name: Car Security System Tmps Wireless Tire Pressure Monitoring System
Brand: ibuyautoparts.com
SKU: 725337902
Availability: InStock
Rating: 4.4 (82 reviews)

Price:	US $ 50-53/Set
Min Order:	100/Set
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Product Description

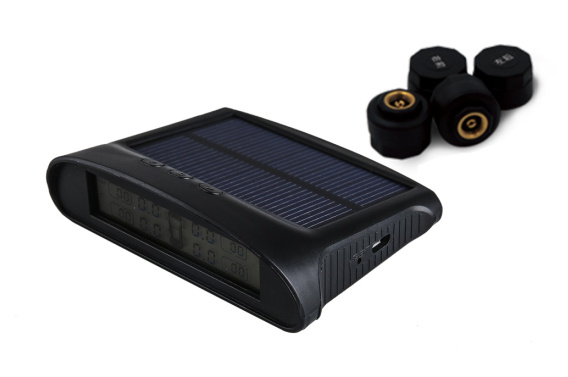

Solar Power wireless tire pressure monitoring system with Internal Sensor for Commercial Vehicle, Car, Van, and Other Four-Wheel Small and Medium Size Vehicles

Product Feature:
Monocrystalline silicon solar power supply mode
Supports automatic switch - automatic startup when driving, automatic shutdown when parking.
Alarm parameters can be set
Unique functions of tire swapping and sensor re-pairing
No wiring installation, arbitrary placement
Four-wheel synchronal info, real-time detection, away from flat tire accident
Temperature and pressure value support multi-unit switching
Intelligent leak detection algorithm, strong anti-jamming, no false positives, no omission

Applicable:
Commercial vehicles, off-road vehicles, cars, vans, and other four-wheel small and medium size vehicles

Product Specification:

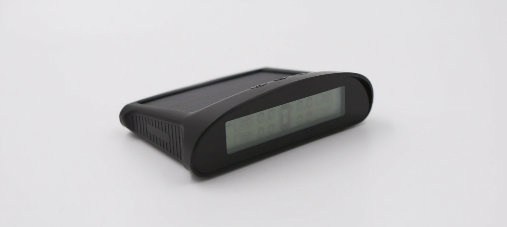

Receiver:

Equipment storage temperature:	-20 ºC ~ 85 ºC
Operating frequency:	433.92MHZ
Acceptance Sensitivity:	-104dBm
DC input voltage:	12 ± 0.5V
Working current:	8mA (backlight semi-bright)
Charging current:	200mA / 12V
Working temperature:	-20 ºC ~ 80 ºC

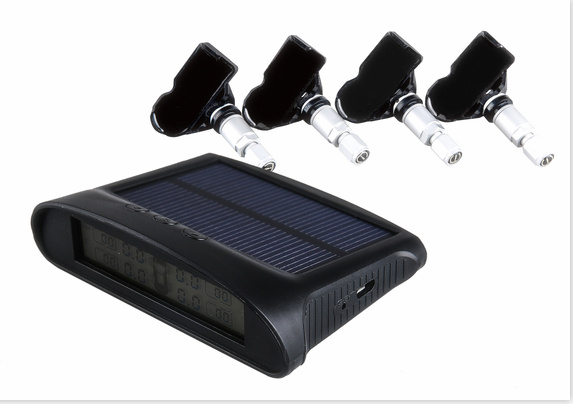

Internal sensor:

Sensor chip	Infineon
Sensor battery	Maxell
Voltage / current:	3.0V / 9mA (instantaneous emission current)
Working temperature:	-40 ~ 125 ºC
Operating humidity:	MAX95%
Weight:	26 ± 2 (without air tap assembly)
Protection class:	IP44
Pressure range:	0 ~ 350Kpa Accuracy: 1.37Kpa
Temperature range:	-40 ~ 125 ºC accuracy of 3 ºC
Transmitting frequency:	433.925MHz ± 3KHz
Transmitting power:	≤10dBm

Receiver:

Prod Model:	WP-005
Sensor Chip:	Infineon
Pressure Range:	0 ~ 350kpa Accuracy: 1.37kpa
Transmitting Frequency:	433.925MHz ± 3kHz
Protection Class:	IP44
Certification:	RoHS
Update Method:	by Internet
Testing Equipment Type:	Tire Pressure Test

Hongkong Winpartners Electronics Co., Ltd. Is specialized in R&D, sell on high-tech LCD products like Portable Multi Media Player seres, Stand alone Car TV Monitor, , Car headrest monitor with android clip on DVD, Home DVD and amplifier, home sperkers, products screen size from 4.3inch to 21inch, good quality and service...

Our products are very popular with end users and sell well in domestic and abroad. We have independent import and export license. We can manufacture products of client's own brand, according to the requiremens of client's OEM/ODM.

Our company has the strict manager in product R&D, software design, mould making, injection molding process etc, continuously pursuit for high-tech through many years experience of electronics manufacture. We always develop in-phase accompany with the latest digital technology, try our best t develop more, better and newer products to satisty clients.

We sincerely hope we can establish friendly cooperation with clients at home and abroad. Please feel free to contact us, welcome to come and visit our factory and make new orders, let's hand in hand make easy business.
