Car Scissor Lift Machine with Ce
| Price: |
US $ 5000-8000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
SJG3-3.5 |
| Markets: |
North America,South America,Eastern Europe,Oceania,Mid East,Eastern Asia,Western Europe |
| Item: |
Garage Car Lift Elevator |
| Power: |
4.0kw - 11kw |
| Drive Type: |
AC, Hydraulic |
| Safety Device: |
Explosion Proof Lock Valve, Emergency |
| Keywords: |
Scissor Lift Platform |
| Type: |
Double Cylinder Hydraulic Lift |
| Lifting Capacity: |
3T |
| Certification: |
ISO |
| Design: |
Scissor |
| Brand: |
Sdlift |
Product Description

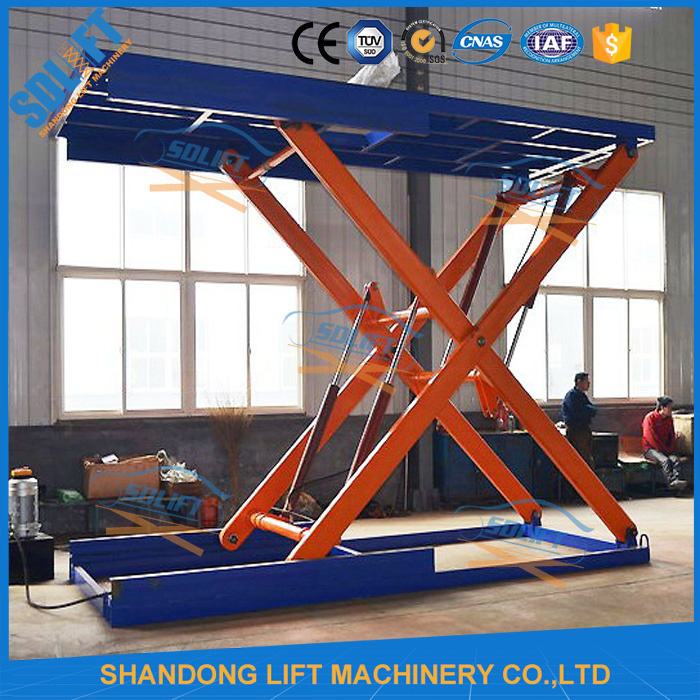

Hydraulic car lift machineLoad weight: 3000kgs
Table size: 5.2m x 2.6m
Travel height: 3.5m
Structure: High-strength Mn steel material
Control system: 1 control box, 1 control panel
Power: 380v / or 220v / or 240v / or 400v
Safety device: Explosion-proof lock valve
Standard: CE, ISO9001Safety:1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs
2) The safe rails to guarantee safety of the car above platform
3) The limit switch system helps the car lift to stop at accurate position.
4) Electricity leakage protection device is equipped on, all electric components are CE certified.
5) All the hydraulic car lifts are passed 1.2 times loading test before leaving factory.
Application:The hydraulic car lift machine can be used to lift car with different levels, suitable for car moving between stairs, from basement to first floor, or to second floor.
Custom-made product are made according to detailed request, please tell us load weight, lift height, and platform size, our engineer will design a suitable hydraulic car lift machine for you soon.The models we supplied for clients:| MODEL | LOAD CAPACITY | PLATFORM SIZE | LIFT HEIGHT | PIT DEPTH | POWER |
SJG2.5-3 |
2.5T |
5.2m x 2.6m |
3m |
750mm |
220V, 240V, 380V or 400V |
SJG2-6.5 |
2T |
5.2m x 2.8m |
6.5m |
800mm |
220V, 240V, 380V or 400V |
SJG2.5-3.5 |
2.5T |
5.2m x 2.6m |
3.5m |
800mm |
220V, 240V, 380V or 400V |
SJG2.5-5 |
2.5T |
5.6m x 3m |
5m |
800mm |
220V, 240V, 380V or 400V |
SJG3-2.5 |
3T |
5m x 2.3m |
2.5m |
750mm |
220V, 240V, 380V or 400V |
SJG3-3 |
3T |
5.2m x 2.6m |
3m |
800mm |
220V, 240V, 380V or 400V |
SJG3-3.5 |
3T |
5.6m x 2.7m |
3.5m |
800mm |
220V, 240V, 380V or 400V |
SJG5-10 |
5T |
4.5m x 2.5m |
10m |
1150mm |
220V, 240V, 380V or 400V |
SJG8-2.5 |
8T |
6.5m x 4.5m |
2.5m |
850mm |
220V, 240V, 380V or 400V |
SJG12-3 |
12T |
5.5m x 2.8m |
3m |
950mm |
220V, 240V, 380V or 400V |
SJG15-4.5 |
15T |
8m x 2.2m |
4.5m |
1150mm |
220V, 240V, 380V or 400V |
SJG20-5 |
20T |
6m x 3m |
5m |
1200mm |
220V, 240V, 380V or 400V |
| The car parking lift can be customized as your detailed size. |
Remark:1) Min. order: 1 unit
2) Production time: 20 days
3) Guarantee: 24 months, we supply spare parts free, and give technical support all the time.
4) Payment term: 50% T/T in advance, and 50% T/T after your inspection (or sending you finished pictures and test video) but before the delivery.
5) Validity: 30 days.Contact me:
Shandong Lift Machinery Co., Ltd is one of the leading manufacturer of heavy duty scissor lifts and car parking lifts in China. Being in this field for over 59 years, and exported lift machine more than 17 years till 2017. Our main products are stationary scissor lift, mobile scissor work platform, car park lift, cargo elevator, disable wheelchair lift, aerial aluminum lift ladder, and mobile container loading ramps etc.
Now there are more than 116 staffs in our factory, and 10 production lines in 8 workshops. There is a engineer team focus on research, development and innovation. The biggest load weight of our scissor lift is 100tons. All the products are passed the test held by Check Station of China Special Equipment and Manufacture.
