Car Paint Spray Booth Water Curtain Spray Booth

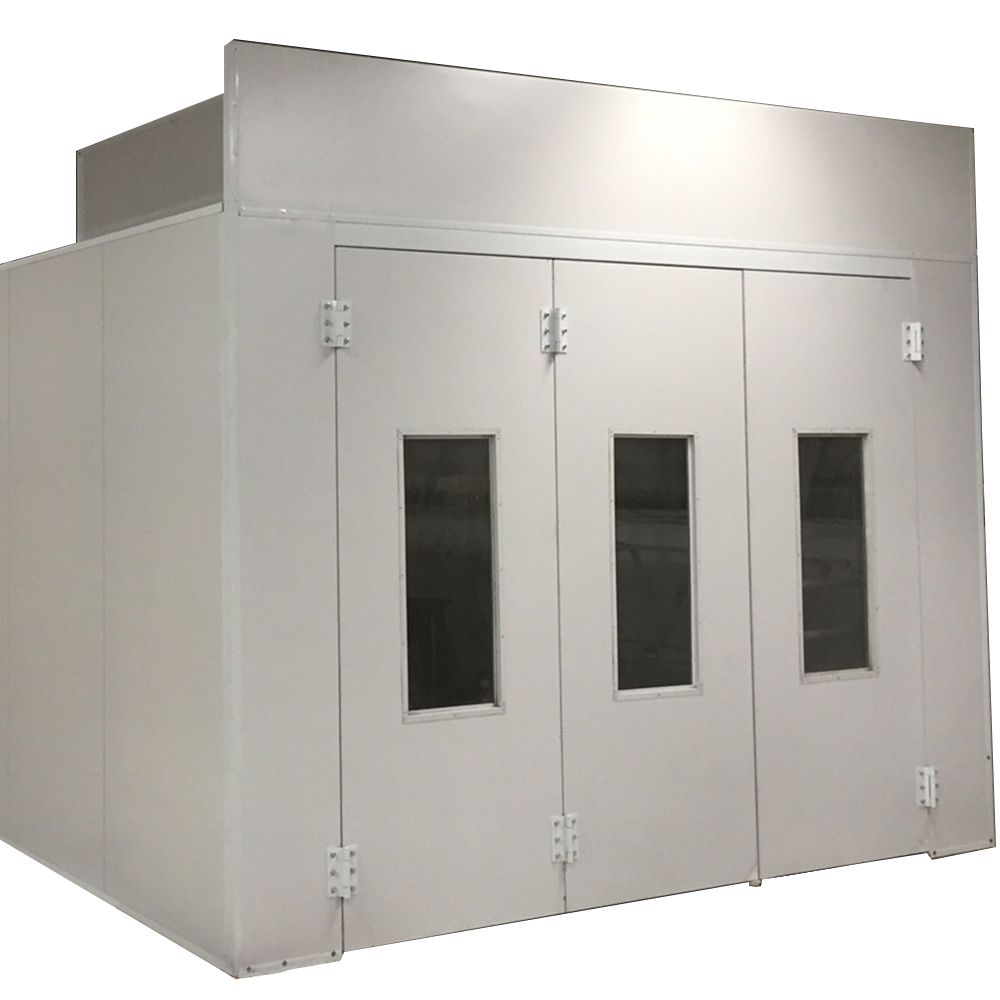

Name: Car Paint Spray Booth Water Curtain Spray Booth
Brand: ibuyautoparts.com
SKU: 691375762
Availability: InStock
Rating: 4.9 (129 reviews)

Price:	US $ 4900-12000/Set
Trade Terms:	FOB
Min Order:	1/Set
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Spray Paint Booth for car
1. CE approved
2. German Technology
3. Large air volume system
4. Quickly rising up heating system
5. Spray booth professional manufacturer
6. Factory price, energy saving
7. High quality, best sell service, timely delivery
8. We can meet at customer's special requirement

Model: BTD 9910

Outside size:	7110x5570x3810 mm (LxWxH)	Inside size:(mm)	7000x4000x2800 mm (LxWxH)
Foundation and floor	Foundation	Adopt galvanized bending forming, more durable and strong. Full grids, the grids are suppressive type of steel grating instead of traditional twisted steel for the cross bar steel grating. The biggest features for it are beautiful, durable and better force bearing.
	Surface area of foundation	27 M²(full galvanized grids)
	Metal basement	350mm height, the ventilation effect is better than traditional spray booth.
	Drive-in ramps	3 big drive-in ramps, each size: 2000x1030mm, diamond plate structure.
Wall and door	Wallboard and roof panel	High quality double construction fireproof insulation rock wool panel, thickness: 50mm

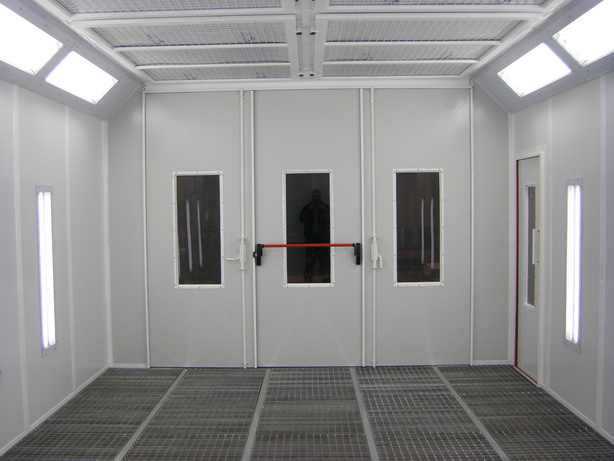

	3-folded entrance door with safety glass window	1set,size: 3200x2700 mm(B x H),tempering glass observation window , size is bigger than traditional spray booth.
	Operator's door with safety glass window	800x2000mm(B x H)the top of service door installs door closer to close the door automatically
	Spray gun hanging system	Install hanging arm in cabin, convenient for operators to hang spray gun, etc.
Lighting	Ceiling lighting	8units,each 4 x 36 W, total 1152w , adopt Germany OSRAM Lamp, grade of lighting box's dustproof and waterproof reach IP54 grade.
	Side lighting	8units,each 2 x 36 W, total 576w, adopt Germany OSRAM Lamp, grade of lighting box's dustproof and waterproof reach to IP54 grade.
	Brightness	≥1000 LUX
Filtration system	Pre-filters	EU3 grade pocket filter, filtration effect is much better
	Ceiling filter	EU5 grade high efficient filter
	Bottom filter and exhaust filter	Fibreglass paint-stop filter
Ventilation system	Inlet fan (Direct drive motor)	Adopt big impeller turbo fan, Germany Brand motor, 7.5KW,6-pole motor, 970RMP, 380V,50HZ
	Outlet fan(Direct drive motor)	Adopt big impeller turbo fan, Germany Brand motor, 7.5KW,6-pole motor, 970RMP, 380V,50HZ
	Painting and baking exchange system	Solenoid valve+ pressure adjustment control cylinder driven damper exchange
	Total fan capacity	25000m³/h
	Air flow speed in cabin	Inverter adjustment, 0.23m/s in empty booth, 0.25-0.35m/s in loaded booth
Heating system	Heating exchanger material	Adopt high efficient heat-resistant stainless steel as cycling heat exchanger
	Heating exchanger capacity	200KW(260.000Kcal/H)
	Burner model	Adopt Italy RIELLO two ranges diesel burner RG5D(260.000kcal/H),quicker heating and much better effect, more rest assure for quality
	Heating time	3-5 minutes( from 20°C to 60 °C) under baking status, the max baking temperature is 80°C
Control system	Control system	Inverter control system
	PLC controller	Yes, PLC control, more reliable, lower breakdown rate
	Human-computer interface touching screen control system	Yes, touching screen control, easier to operate
	Inverter control	Inverter control , more energy-saving, more economic
	Function	Painting, warm painting, baking, leveling, emergency stop switch, inverter, pressure adjust balance, alarm indication, failure indication, over-temperature alarm indication, baking delay stop protection

BTD Car Tools Co., Ltd is a professional manufacturer for car spraying, baking and largest automobile spraying/baking booth in South China since Year 2002 . With strong R&D experiences, advanced technology and guarantee quality , BTD brand spray booth is getting more and more popular all over the world .

BTD target is to be a leading enterprising manufacturer for high-end Spray Paint Booth and painting lines, BTD enjoys good reputation in Europe and hold the most market share for high-end Spray Paint Booth. All of which are compliant to CE directives. We has passed the ISO9001:2000 quality system certification and ensures that every department follows the articles of the system.

BTD has many agency and establish many showroom around the world ,customers can easy find our products in your countryif we have agency and showroom there . Meanwhile , we welcomes partners who are interested to be our agency .

We provide a design service, with advice on all aspects of all the build, including airflow, ducting, filters, lighting, environmental issues and health and safety issues.
If you wish to discuss any aspect of your project,
Please feel free to contact us.

Prod Model:	BTD 9910
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Management Certification:	ISO9001: 2000
Technology:	German Technology
Warranty Time:	2 Years
Service Time:	Lifelong Maintenance
Usage:	Car Spraying and Baking
Configuration Level:	High-End Spray Booth
Color:	Red + White
Diesel Burner:	Italy Riello Two Ranges Diesel Burner Rg5d
Control System:	Inverter Control System
Air Volume:	Big
Certification:	CE
Airflow Direction:	Fully Undershot-type
Heating Mode:	Diesel
Paint Mist Treatment:	Wet-type
Condition:	New
Type:	Car Spray Booth
Brand:	Btd

BTD Car Tools Co., Ltd is a professional manufacturer for car spraying, baking, painting and largest automobile spraying/baking/painting booth in South China since Year 2002. With strong R&D experiences, advanced technology and guarantee quality, BTD brand spray paint booth is getting more and more popular all over the world.

BTD company target is to be a leading enterprising manufacturer for high-end Spray Paint Booth and painting lines, BTD enjoys good reputation in Europe and hold the most market share for high-end Spray Paint Booth. All of which are compliant to CE directives. We has passed the ISO9001: 2000 quality system certification and ensures that every department follows the articles of the system.

BTD company also produces many other products, such as preparation room, retractable room, mixing room, air compressor, car lift and car bench. A variety of high-quality products meet customers' different needs.

BTD company has many agency and establish many showroom around the world, customers can easy find our products in your countryif we have agency and showroom there. Meanwhile, we welcomes partners who are interested to be our agency.
