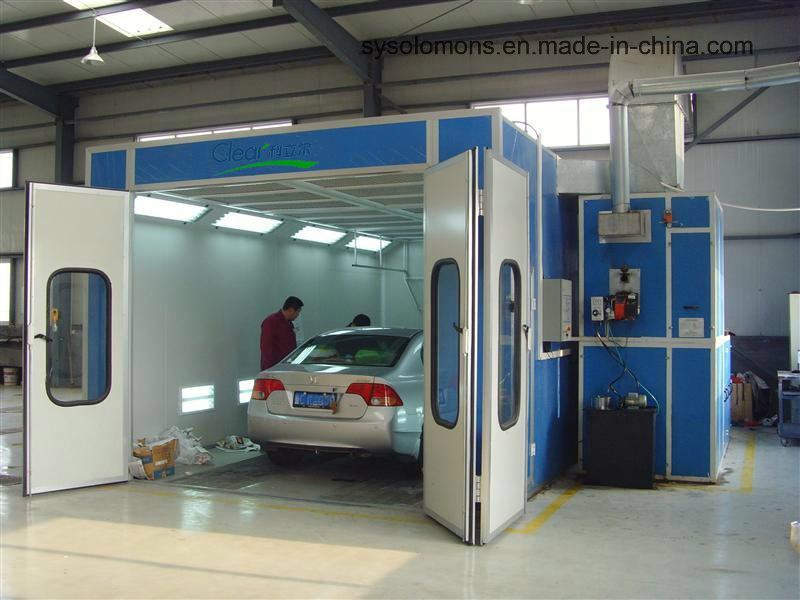

Car Care Equipment Painting Booth
| Price: |
US $ 7500-8000/Set |
| Min Order: |
1/Set |
| Pay Type: |
T/T,Western Union,Paypal |
1.our company dealing automobile maintenance equipment and tools.
2.it can used for cars in widely range of brand.HX-600L Paint Booth Factory Net Price:US$7460| Outside Size (mm) | 8000×5200×3650 (LXWXH) |
| Inside Size (mm) | 7900×4000×2800 (LXWXH) |
| Wall panel | EPS (epispastics polystyrene)Colorful Steel Skin Boards,50 mm Thick, Compound Construction, Anti-flame and Heat-Insulation,Handiwork Door,Galvanized Steel Roof Panel |
| Doors | Front door size: 2950*2700mm(W*H),side door size:800*2000mm(W*H) |
| Basement | Two Grids & Three Embossed Plates, Galvanized Steel Sheet Construction, Two Ramps, |
Air Circulation System
| Inlet Fan | Blower capacity: 24,000 m3/h | Outlet Fan | Blower capacity: 20,000 m3/h |
| Power: 4 kw/set | Power: 7.5 kw/set |
| Quantity: 2 sets | Quantity: 1 set |
| Air Volume: 24,000 m3/h; Air Speed: 0.35 m/s, Air Recycling times:280 times/h; |
Purification System | Dual filtering structure.The primay filter can capture granules larger than 10um. Ceiling filter EU5 grade high efficient filter.Capture granules bigger than 5um. The whole purification system has capacity of large volume of dust. Its filtering ratio reaches 98%. |
| Heating system | Riello Brand G20 diesel burner, 200,000 Kcal/h,
SUS304 stainless steel heating exchanger, argon arc welding;
max temp:80 ºC, heating time: 10-20 min (20-60ºC),fuel consumption:4-5 kg/vehicle |
| Lighting System | Ceiling Light: 40 pcs 36W Lamp; Side Light: 20 pcs 36W Lamp, tempered glass,900 Lux |
| Control system | Electric control box,spray & baking switch, light switch, emergency stop, breakdown alarm |
| Environmental System | Multi-layers fiberglass filter, active carbon |
| Color | Blue,red or white |
HX-600 Paint Booth Factory Net Price:US$6400| Outside Size (mm) | 7000×5200×3650 (LXWXH) |
| Inside Size (mm) | 6900×4000×2800 (LXWXH) |
| Wall panel | EPS (epispastics polystyrene) Colorful Steel Skin Boards,50 mm thick, Compound Construction, Anti-flame and Heat-Insulation,Handiwork Door,Galvanized Steel Roof Panel |
| Doors | Front door size: 2950*2700mm(W*H),side door size:800*2000mm(W*H) |
| Basement | Two Grids & Three Embossed Plates, Galvanized Steel Sheet Construction, Two Ramps |
Air Circulation System
| Inlet Fan | Blower capacity: 24,000 m3/h | Outlet Fan | Blower capacity: 15,000 m3/h |
| Power: 4 kw/set | Power: 5.5 kw/set |
| Quantity: 2 sets | Quantity: 1 set |
| Air Volume: 24,000 m3/h; Air Speed: 0.35 m/s, Air Recycling times:280 times/h; |
Purification System | Dual filtering structure.The primay filter can capture granules larger than 10 um. Ceiling filter EU5 grade high efficient filter.Capture granules bigger than 5 um. The whole purification system has capacity of large volume of dust. Its filtering ratio reaches 98%. |
| Heating system | Riello Brand G20 diesel burner, 200,000Kcal/h,
SUS304 stainless steel heating exchanger, argon arc welding;
max temp:80 ºC, heating time: 10-20 min (20-60 ºC),fuel consumption:4-5 kg/vehicle |
| Lighting System | Ceiling Light: 32 pcs 36W Lamp; Side Light: 16 pcs 36W Lamp,tempered glass, 900 Lux |
| Control system | Electric control box, spray & baking switch, light switch, emergency stop, breakdown alarm |
| Environmental System | Multi-layers fiberglass filter, active carbon |
| Color | Blue,red or white |
if you have any inquiry, pls feel free to contact with me by email or by skype.
