Prod Model: |
43512-08040 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Aimco No.: |
31314 |
Acdelco No.: |
18A1485 |
Hole: |
5 |
Overall Height: |
49.2mm |
Outer Diameter: |
296mm |
PCD: |
114.3mm |
Brake Rotor Thickness: |
28mm |
Min. Thickness: |
26mm |
Fit: |
Vented |
Fit For: |
Toyota Camry |
Type: |
Brake Discs |
Material: |
Iron |
Position: |
Front |
Certification: |
ECE |
Drum Brakes Classification: |
Brake Disc |
Product Description

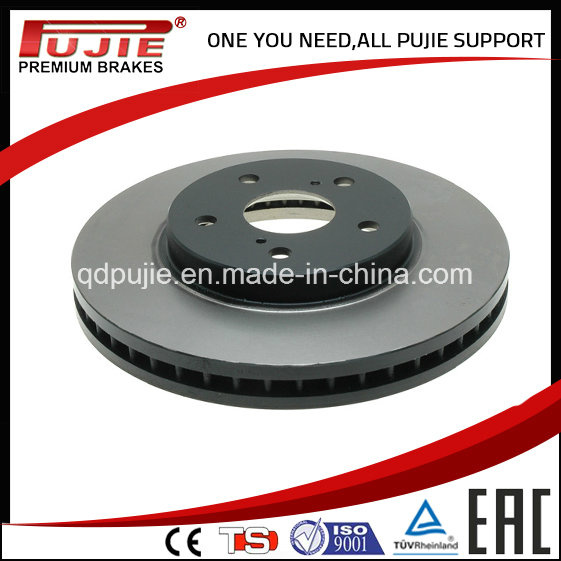

1. Description of brake disc : AIMCO 31314
Cast iron |
CHEMICAL COMPOSITION(mass%) |
| C | SI | Mn | Ni | Cr | Mo | Cu | S | P | Sn | Ti | V |
% MIN | 3.65 | 1.6 | 0.4 | / | 0.15 | / | 0.3 | / | / | / | / | / |
% MAX | 3.8 | 2.1 | 0.8 | 0.1 | 0.35 | 0.25 | 0.6 | 0.15 | 0.1 | 0.15 | 0.05 | 0.05 |
MICROSTRUCTURE |
MATRIX | Type of matrix | Fine Lamellar |
Permissible limit | 5% Max, well distributed |
Ledebutite | Not permissible |
GRAPHITE (To UNI EN ISO 945) | Shape | ∣ |
Distribution | A: 70% MIN |
D·E:<4% Disporsed |
B: Resto/Remainder |
Size | 3- 4 -5 : 70% MIN |
2: Traces |
6:≤15% |
Cementite and free carbides | Traces up pt 1% MAX permissible |
MECHANICAL PROPERTIES OF CASTING |
HARDNESS (HBW) | On machined braking surfaces | 170~210 |
On braking surfaces as-cast (0.5 mm below surface) | 230MAX |
TENSILE STRENGTH(Rm) (N/m²) | On braking surface | 170 MIN |
On mounting flange |
WEDGE INDENTATION STRENGTH (Rmk)(N/m²) | On braking surface | 125 MIN |
Young's MODULUS (E) (N/m²) | / | 95 |
PHYSICAL PROPERITIES (Indicative values) |
Density (volumic mass) | 7.1 kg/dm³ |
Coefficient of thermal expansion at 20 degree | 9.10 1/K |
Thermal conductivity at 100 degree | 50 W/Mk |
