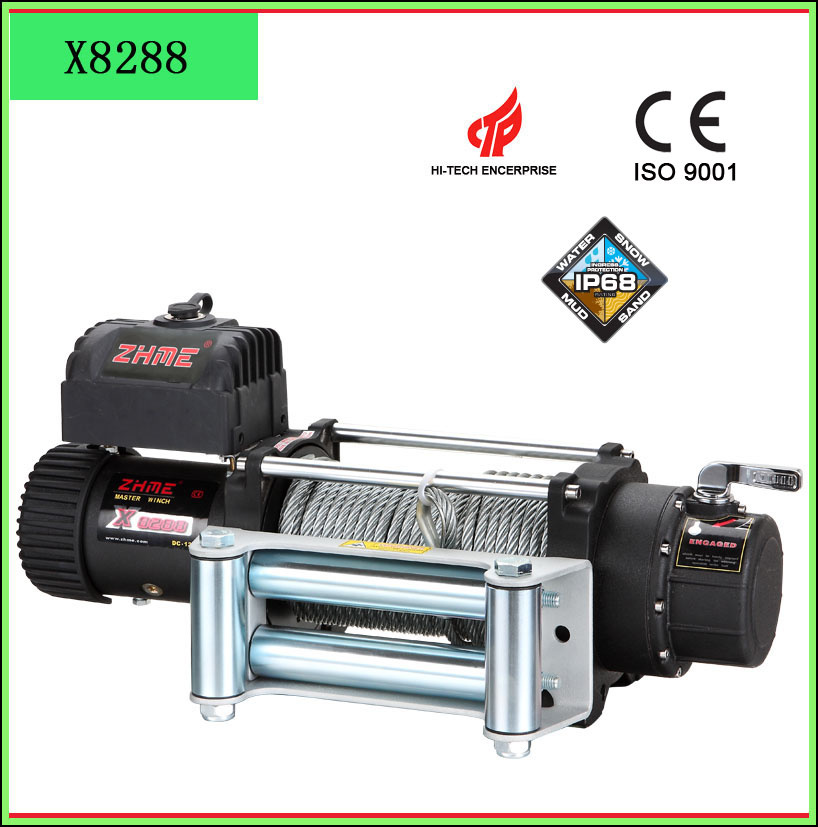

Cable Pulling Winch with Fast Speed

Name: Cable Pulling Winch with Fast Speed
Brand: ibuyautoparts.com
SKU: 745545655
Availability: InStock
Rating: 4.6 (95 reviews)

Price:	US $ 250-300/Piece
Trade Terms:	FOB,CIF
Min Order:	15/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

cable pulling winch with fast speed
Rated line pull: 8288lbs (3760 kgs) Single line.
Motor: Seires Wound 6.8 HP/5.0 kw, 12V DC.
Gear Train: 3 Stage Planetary
Gear Ratio: 138: 1
Clutch Sliding Ring Gear
Braking action: Automatic in the drum
Fairlead: 4-way Roller Fairlead
Rope: wire rope 7.8mm*30m
Drum size: 3.0"X 9.0" ( 76mm X 224mm)
Dimensions: 23.7"X6.6"X8.7"(603mm X 168mm X 220mm)
Mounting bolt pattern: 10" X 4.5" ( 254mm X 114.3mm)
Battery: Recommended 650 CCA minimum for winching 25 Square mm, 72" ( 1.83m)
N. W: 75lbs (34 kg)
Packing: 680mm X 360mm X 260mm / Carton

One 20 feet container covers 400 cartons, If need, Use pallets.

	PERFORMANCE
Line speed and motor current (first layer)	Line pull	Lbs	0	2000	4000	6000	8288
	Line pull	Kgs	0	907	1814	2722	3760
	Line speed	FPM	65	19.7	14.1	12.5	11.2
	Line speed	MPM	19.8	6	4.3	3.8	3.4
	Motor current	Amps	58	160	220	280	360

Prod Model:	x 8288
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brand:	Zhme
Pull Direction:	Backward
Certification:	CE
Power Type:	Series Motor DC
Type:	Electric Winch
Working Voltage Of Electric Winch:	Low Voltage
Applicable Environment:	Snow , Swamp,Mud ,Desert

Ningbo Zhonghuang Machine & Electrics Co., Ltd (ZHME) is a specialized winch manufacturer situated in Ningbo, Zhejiang province, China, ZHME has 17 years experience in electric winches, our manufacturing plant has state-of-the-art assembly lines, together with in-house precision die-casting, CNC machining, heat treatment, polishing, high-pressure cleaning and finishing facilities. We also have advanced and fully-automated electric motor and winch testing facilities.

Established in 1995, ZHME has become a highly progressive and intensive R&D programmed into winch design, using the latest technology, to improve the performance and efficiency of products. We currently own patents on our many improved winch design features and strive to maintain our unsurpassed build-quality and outstanding value. ZHME has awards NINGBO high-technology enterprise since 2009

Today, ZHME has a comprehensive range of winch products and is developing more, Our philosophy is simple, To stay ahead in our business by being totally professional, but have fun doing it by remaining young in our hearts and minds.
