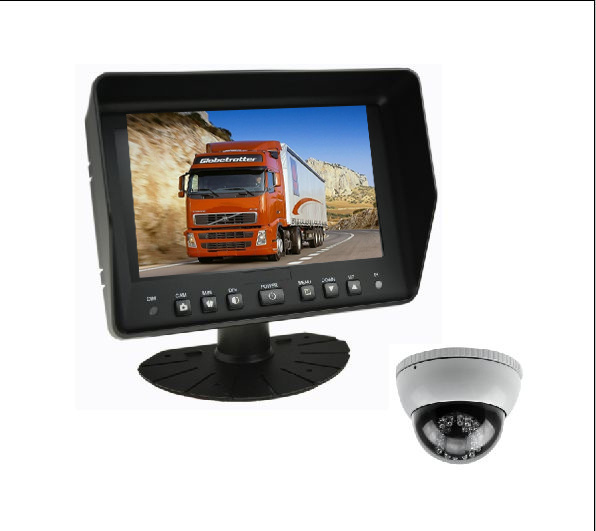

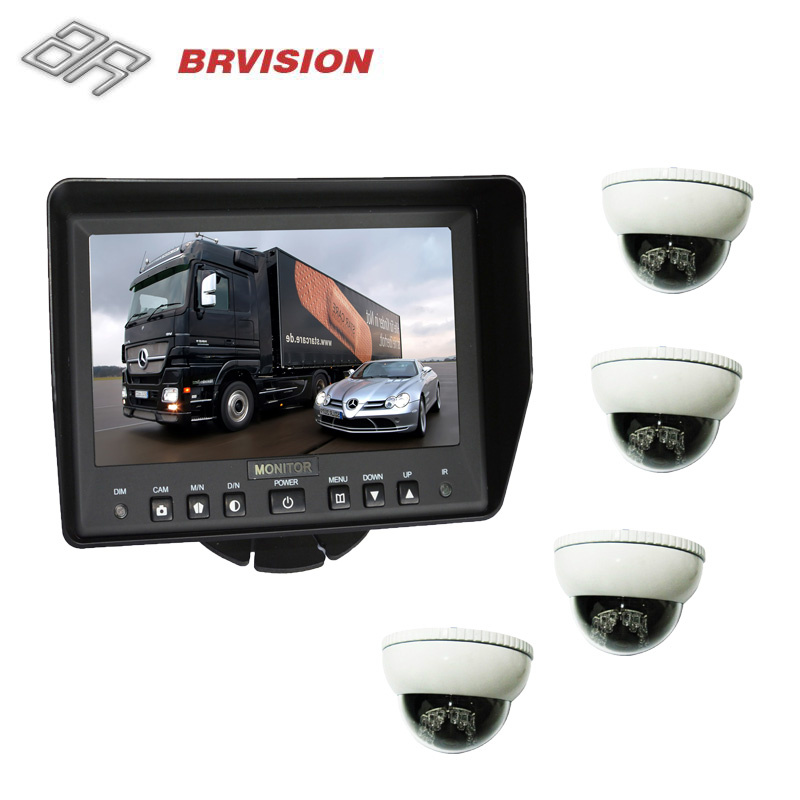

Product DescriptionBus Surveillance System /7inch TFT Digital Monitor and Dome Camera

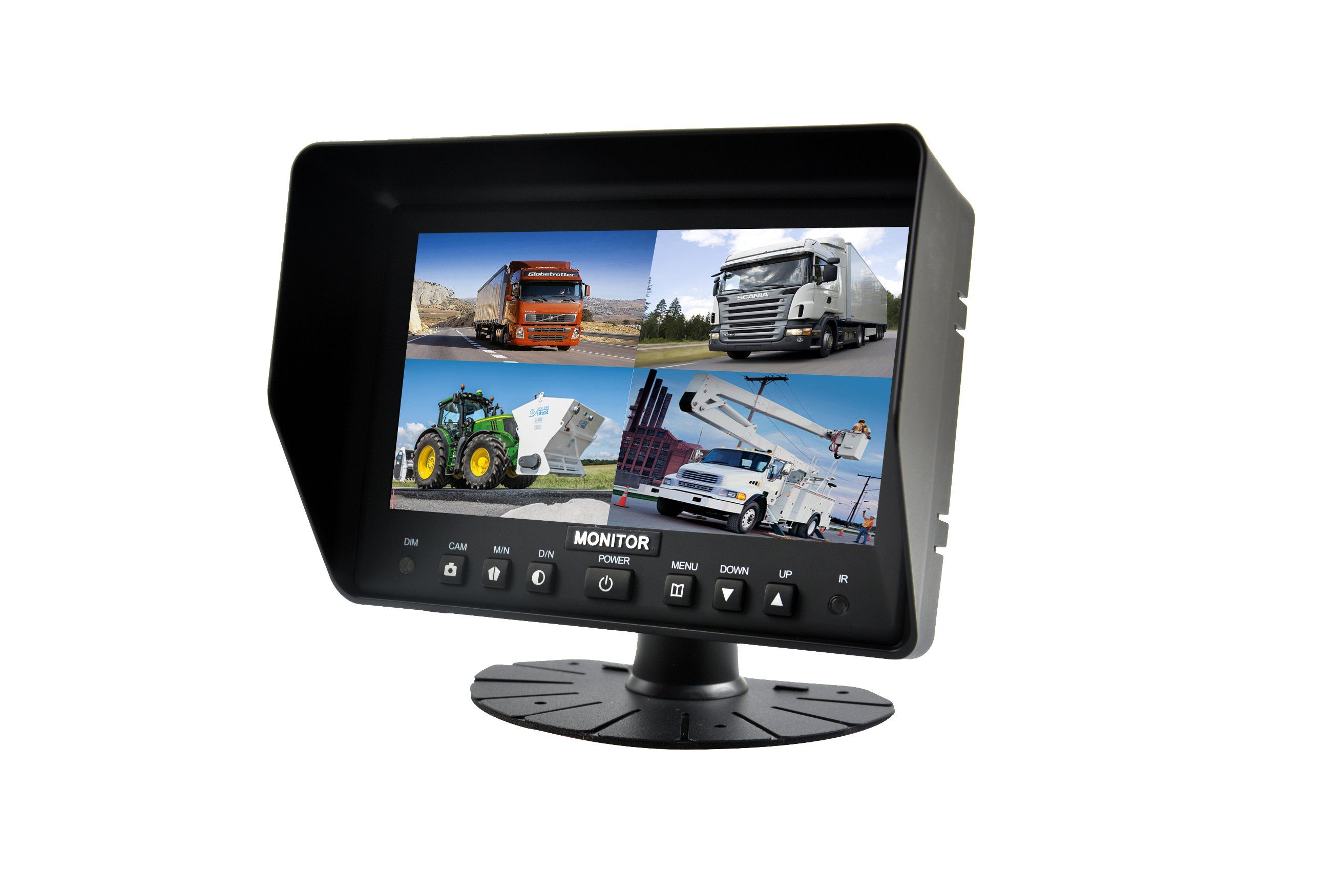

Monitor Specification:This 7" TFT Digital touch button monitor, with 2CH input, which is capable of connecting and viewing simultaneously up to four cameras. 9 languages selectable for user operation With multiple viewing options, you can choose how many cameras you would like to view and in which format.. Comes with a one year warranty.
Item No. | BR-TM7002 |
Monitor | 7'' inch TFT monitor with touch button |
Input | 2 cameras input |
Image | 16:9 |
Color system | PAL/NTSC(selectable) |
Resolution | WSVGA 1024 |
horizontal | 600 vertical pixel |
Power requirement | 12/24V DC |
Language | 9 languages for selection |
Power consumption | 5W |
Dimension | 261 (L) x 177 (W) x 70 (D) |
Operating temperature | -30° to +70° |
Storage temperature | -40° to +80 |
Certificate | CE,EMC,FCC,ISO9001:2008,E8 |
Producing newest 7" tft touch button monitor 2ch input br-tm7002 with high-quality, 2008 - 2016 Brvision Technology is one of the best such manufacturers and suppliers, welcome to buy discount products from us.
Camera Specifications:
BR-DV002, Standard ceiling dome camera for bus,school bus,coach,etc.It is easy to install. it is able to connect all sizes of monitors, like 10.1'', 7'', 5.6'', 5. Our new Dome Camera comes with a color CCD lens with a normal view, and the camera view at night will be almost as clear as day.
Item No. | BR-DV002 |
Image Type | 1/3" , 1/4'' Color CCD/CMOS |
Feature | Ceiling dome camera without audio |
TV System | NTSC/PAL |
IP Rating | IP65 |
Vibration Rate | 10G |
Image | normal |
Effective Pixels | N: 510*492 pixels P: 500*582 pixels |
Horizontal Resolution | 420TVL/700TVL |
Video Output | 1.0vp-p, 75Ohm |
B.L.C | Back light Compensation (Auto) |
White Balance | Auto White Balance (Auto) |
Minimum Illumination | 0Lux (LED ON) |
S/N Ratio | ≥48dB |
Electronic Shutter | 1/60~1/100,000 Sec |
Built-in Lens | f: 2.8mm |
Power Consumption | DC 12V (+/-10%) |
Lens Angle (Deg.) | 120° |
Operation Temperature | -30ºC~+70ºC.RH95% Max |
Storage Temperature | -40ºC~+80ºC.RH95% Max |
Certificate | FCC,CE, E-mark,ISO9001,TS16984, RoHs |
Producing newest bus ir anti-vandal dome camera br-dv002 with high-quality, 2008 - 2016 Brvision Technology is one of the best such manufacturers and suppliers, welcome to buy discount products from us.
Company Introduction:
BRvision Technology Co.,LTD is a manufacturer and company serving the Heavy-duty truck and commercial vehicle industry with vehicle safety systems, including reversing camera, monitor, dash camera, parking sensor and mobile DVR etc.
BRvision was established in 2008, designed the first OE mirror monitor & camera for Chrysler.
Our new factory was established in Songgang, Shenshen in 2012. In these year, all the test equipment installed in factory, and we also produced OE camera for Suzuki.
In 2013, we past the ISO, set up our R&D department, also the overseas sales office established in Shajing, and the ERP system online this year.
We do 100% exporting, most of our products were exported to Western EU, Oceania and North America. We offer one global price, which is fair to each client.
Our mission is providing you a safety solutions on vehicles ! Welcome to visit our factory !
FAQ:
Q1: What is your Warranty policy?
A1: 12 months is guaranteed from the production date
If faulty items happened at destination/during warranty time, we can replace at our cost;
If faulty items caused by human accident is not our responsibility, we can replace at your cost.
Q2: What is your MOQ?
A2: Depends on model you choose, small and trial order acceptable.
Q3: What is your lead time?
A3: 5-7 working days for trial orders and 2-3 weeks for bulk orders after we get the payment .
Q4: What is your payment terms?
A4: T/T(Bank transfer), PayPal, Western Union are available .
Q5: Do you accept OEM or ODM service?
A5: OEM & ODM are welcomed.
Q6: Any certificate for your products?
A6: Yes, we have E-mark ,CE, FCC ,E9 ....certificate for your reference.
Q7. What is your terms of packing?
A7: Generally, we pack our goods in neutral white boxes and colorful gift box. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
08: How do you make our business long-term and good relationship?
A8:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
BRVISION TECHNOLOGY Co., Ltd is a professional Mobile Electronics and Surveillance developer & supplier in China. We specializing in OEM and ODM vehicle rear view system and surveillance products
Our vehicle system department products include the heavy duty and car reversing system, TFT LCD monitor, License plate camera, wireless Module, DVR recorder camera and etc.
Our surveillance system department products line have PTZ camera, dome camera, box camera, and so on.
It is our mission statement to bring convenience to your life while protecting your safety and property. Above all, BRVISION strives to offer products for all our customer's unique requirements both in China and on the international market. Currently, our products are exported to North America, Europe, the Middle East and all over Asia.
BRVISION has decades of experience of safety and surveillance in the international market place. We can quickly respond to your feedback and are well equipped to meet any and all your requirements.
We specialize in:
. Vehicle Rearview Camera(CCD or CMOS)
. Vehicle TFT LCD Monitor
. Wireless Transmitter and Receiver
. Surveillance Camera
. OEM and ODM Project
BRVISION Certificats: CE, FCC, Emark, ISO9001-2008
