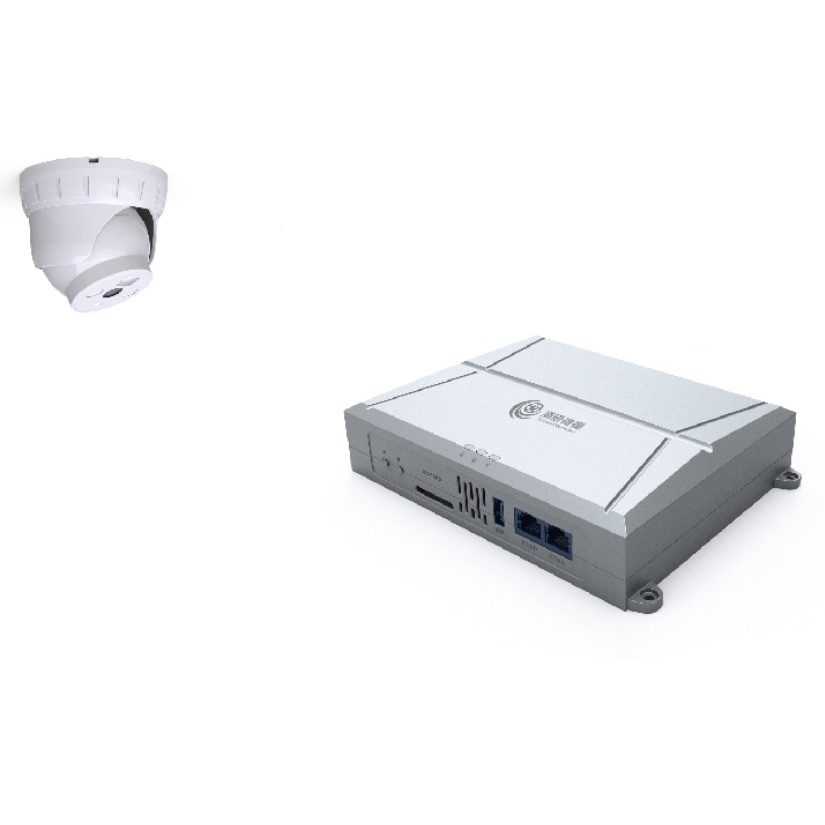

Bus Automatic Passenger Counter

Product Overview:

Based on the face recognition technology, Bus Automatic Passenger Counter can realize its counting function by the cameras installed on the front and back doors. The positioning information and passenger volume for each bus line or each station will be synchronously send to the network platform, which offers great support for bus line optimization, bus dispatch, as well as passenger volume real-time dynamic analysis and forecast. What's more, Bus Automatic Passenger Counter can be integrated with electronical station and mobile APPs so as to easily check the information for citizens' activities.

Product Functions:

1.the real-time counting and uploading of passengers getting on and off

2.position reporting

3.statistical analysis by the machine web client-side

Product Features:

1.The bi-directional counting function is suit to count the number of passenger get on&off in a doorway.

2.High robustness without the influence of passengers' hairstyle, headgear and clothes, etc.

3.Automatically start and stop according to the state of bus doors.

4.The number of passengers match each station automatically and generate the statistic report of each station by means of GPS.

Product Specification:

Machine Parameter

Size:200.3*146.5*41.3mm

Color:Silver

Working Voltage:8V~36V(24V Recommend)

Rated Power:7.2W

Temperature&Humidity:-40~70ºC, 85%±5%RH

Hardware Interface

CAN Bus Interface:Enable

RS485 Bus Interface:Enable

Local Warning:Enable

Remote Warning:Enable

Video Parameter

Video Input:Two channels

Video Output:Two Channels BNC

Image Processing Speed:<0.1s/Frame

Counting Speed:<10m/s

Synchro Function:Auto-Sync

Counting Precision:>90%
