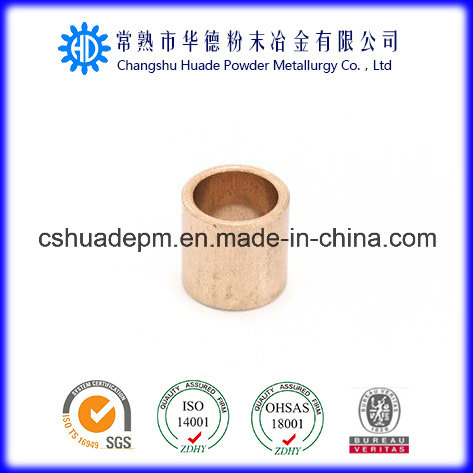

Bronze Bushing for Auto Starters
| Price: |
US $ 0.104-0.127/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
5000/Piece |
| Pay Type: |
L/C,T/T |
We are the professional manufacturer of bushing for more than 30 years. We produce a wide range of bushing items. And we can provide steady quality according to OEM or customization.
It is widely applied on various automobile engines, vehicles, hoist machines and so on. The main material is copper. And it is of low friction coefficient, anti-wear, and can be used without oil, or only a trace of oil is needed.

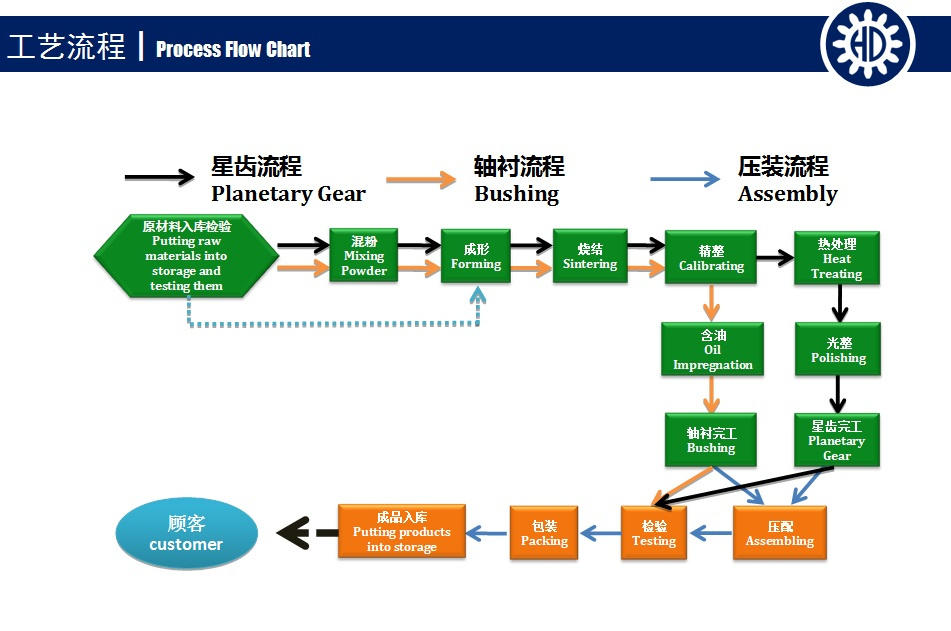

Process Flow Chart for Bushing:
1.Putting raw materials into storage and testing them
2.Mixing Powder
3.Forming
4.Sintering
5.Calibrating
6.Oil Impregnation
7.Bushing finished
8.Testing
9.Packing
10.Putting products into storage
| Items | Bushings, bearings |
| Materials | Bronze |
| Vehicles | For Volkswagen, General Motors, Hyundai, KIA, Dongfeng-Citroen, Jetta and so on. |
| Functions | Lubricating, reducing friction and so on |
| ID(unit:mm) | OD(unit:mm) | L(unit:mm) | WAI No. | Notes(Shoulder) |
| 10.03 | 16.55 | 13.9 | 62-91306 | 18.54*2.8 |
| 10.05 | 14.05 | 12.5 | 62-83300 | |
| 10.08 | 13.96 | 10 | 62-2300 | |
| 8.5 | 62-2301 | |
| 10.12 | 13 | 10.5 | 62-83303 | 16.05*2 |
| 10.13 | 14.08 | 9.4 | 62-1307 | |
| 14.02 | 12.1 | 62-83302 | |
| 10.97 | 13.06 | 12.7 | 62-83400 | |
| 14.02 | 13 | 62-83403 | |
| 11.02 | 13.59 | 14 | 62-91400 | |
| 11.03 | 13.23 | 12.7 | 62-82400 | |
| 12.56 | 11.9 | 62-91410 | |
| 14.68 | 10.9 | 62-82405 | |
| 11.04 | 14.67 | 7.8 | 62-82406 | |
| 11.05 | 13.03 | 12.7 | 62-83405 | |
| 13 | 62-83402 | |
| 11.06 | 15.06 | 14.7 | 62-81400 | |
| 11.1 | 15.91 | 12.7 | 62-1408-1 | |
| 11.16 | 13.2 | 12.7 | 62-1407 | |
| 11.17 | 15.91 | 12.7 | 62-1408 | |
| 11.48 | 15.01 | 12.9 | 62-81401 | |
| 11.54 | 15.04 | 14 | 62-81407 | |
| 11.58 | 15.07 | 11.7 | 62-81406 | |
| 11.76 | 13.2 | 18.3 | 62-1400-4 | |
| 11.79 | 15.13 | 10.2 | 62-2402-3 | |
| 11.82 | 13.2 | 18.3 | 62-1400-3 | |
| 13.2 | 12.7 | 62-1402-3 | |
| 11.86 | 15.13 | 18.7 | 62-2400-2 | |
| 16.04 | 10.2 | 62-2403-2 | |
| 11.89 | 13.2 | 12.7 | 62-1402-2 | |
| 18.3 | 62-1400-2 | |
| 15.13 | 12.7 | 62-1403-2 | |
| 11.91 | 15.13 | 10.2 | 62-2402-2 | |
| 11.94 | 15.13 | 18.7 | 62-2400-1 | |
| 16.04 | 10.2 | 62-2403-1 | |
| 13.2 | 18.3 | 62-1400-1 | |
| 11.95 | 13.2 | 12.7 | 62-1402-1 | |
| 15.13 | 10.2 | 62-2402-1 | |
| 11.96 | 15.13 | 12.7 | 62-1403-1 | |
| 11.98 | 15.9 | 19.1 | 62-1401 | |
| 11.99 | 15.26 | 19.1 | 62-3400 | |
| 16.05 | 16.1 | 62-91408 | |
| 12 | 15.13 | 18.7 | 62-2400 | |
| 16.04 | 10.2 | 62-2403 | |
| 15.91 | 12.7 | 62-1404 | |
| 16.5 | 62-1405 | |
| 12.01 | 13.13 | 15.6 | 62-2404 | |
| 18.3 | 62-2401 | |
| 13.2 | 12.7 | 62-1402 | |
| 62-1402-8 | |
| 18.3 | 62-1400 | |
| 62-1400-8 | |
| 14.05 | 12 | 62-91401 | |
| 16 | 9.5 | 62-83404 | |
| 16.1 | 16.1 | 62-91402 | |
| 12.02 | 15.13 | 12.7 | 62-1403 | |
| 12.04 | 15.06 | 14.4 | 62-94401 | |
| 15.13 | 10.2 | 62-2402 | |
| 12.07 | 14.12 | 13.9 | 62-91409 | |
| 13.55 | 11.4 | 62-91411 | |
| 12.08 | 15.09 | 11.9 | 62-94400 | |
| 15.54 | 5.7 | 62-81408 | |
| 12.09 | 16.08 | 11.9 | 62-81403 | |
| 12.47 | 16.51 | 10.3 | 62-82401 | |
| 12.5 | 16.03 | 11.9 | 62-81402-1 | |
| 12.52 | 16.48 | 14 | 62-82404 | |
| 16.54 | 16 | 62-91407 | |
| 12.55 | 14.73 | 14 | 62-82402 | |
| 12.55 | 16.61 | 15.7 | 62-91404 | |
| 12.56 | 16.51 | 11.4 | 62-91403 | |
| 12.57 | 16.08 | 15 | 62-81404 | |
| 18.57 | 19.4 | 62-93400 | |
| 12.58 | 16.03 | 11.9 | 62-81402 | |
| 12.59 | 14.03 | 19.1 | 62-81409 | |
| 12.6 | 15.49 | 10.4 | 62-82403 | |
| 12.66 | 14.32 | 19.8 | 62-1500-2 | |
| 15.9 | 19.7 | 62-1406-1 | |
| 12.72 | 14.32 | 19.8 | 62-1500-1 | |
| 12.73 | 15.9 | 19.7 | 62-1406 | |
| 15.95 | 19 | 62-6500-1 | |
| 12.75 | 15.93 | 13.9 | 62-92501 | |
| 12.78 | 15.95 | 19 | 62-6500 | |
| 14.32 | 19.8 | 62-1500 | |
| 12.81 | 19.14 | 14.1 | 62-92500 | |
| 13.04 | 16.05 | 16 | 62-84502 | |
| 13.97 | 18.01 | 15.9 | 62-99500 | |
| 14.02 | 18.06 | 13.8 | 62-91502 | |
| 20.04 | 10 | 62-91500 | |
| 14.04 | 16.02 | 16 | 62-84503 | |
| 18.04 | 19.9 | 62-81500 | |
| 14.05 | 17.08 | 16 | 62-84500 | |
| 17.54 | 15 | 62-91501 | |
| 17.55 | 18.9 | 62-84501 | |
| 20.04 | 17.1 | 62-91503 | |
| 14.07 | 17.06 | 16 | 62-84504 | |
| 18.03 | 17 | 62-81502 | |
| 14.08 | 15.95 | 16.5 | 62-1501-4 | |
| 14.09 | 16.09 | 10.9 | 62-83502 | |
| 14.11 | 20.07 | 11.8 | 62-93500 | |
| 14.14 | 15.95 | 16.5 | 62-1501-3 | |
| 14.17 | 17.27 | 9.5 | 62-83500 | |
| 14.2 | 15.95 | 16.5 | 62-1501-2 | |
| 14.25 | 17.25 | 13.1 | 62-83501 | |
| 14.26 | 19.91 | 20.3 | 81-1300-1 | |
| 14.27 | 15.95 | 16.5 | 62-1501-1 | |
| 19.1 | 19.1 | 62-1504-1 | |
| 14.3 | 15.95 | 20.6 | 62-1502 | |
| 17.63 | 18.5 | 81-6300 | |
| 14.33 | 17.26 | 12.5 | 62-2500 | |
| 19.91 | 20.3 | 81-1300 | |
| 15.95 | 16.5 | 62-1501 | |
| 17.51 | 19.1 | 62-1505 | |
| 14.34 | 19.1 | 19.1 | 62-1504 | |
| 21.92 | 19.1 | 62-1504-7 | |
| 14.44 | 19.19 | 24.6 | 62-1503 | |
| 15.04 | 19.05 | 20 | 62-84505 | |
| 15.05 | 20.07 | 16 | 62-81501 | |
| 15.06 | 19.1 | 9.9 | 62-83503 | |
| 15.75 | 19.51 | 10 | 62-91601 | |
| 15.77 | 19.11 | 15.2 | 62-2600-3 | |
| 15.83 | 19.11 | 15.2 | 62-2600-2 | |
| 15.89 | 21.92 | 24.5 | 62-1600-7 | |
| 15.9 | 19.11 | 15.2 | 62-2600-1 | |
| 19.11 | 11.4 | 62-2604-1 | |
| 19.13 | 18.7 | 62-6602-1 | |
| 24.6 | 62-6601 | |
| 15.91 | 19.19 | 22 | 62-1600-1 | |
| 15.93 | 19.13 | 29.2 | 62-2603 | |
| 15.94 | 20.7 | 17.4 | 62-2601 | |
| 15.95 | 17.53 | 14.3 | 62-2605 | |
| 19.13 | 18.7 | 62-6602 | |
| 15.96 | 19.11 | 11.4 | 62-2604 | |
| 15.2 | 62-2600 | |
| 15.98 | 17.45 | 25 | 62-1603-8 | |
| 19.19 | 22 | 62-1600 | |
| 16.05 | 19.06 | 7.1 | 62-81601 | |
| 16.26 | 19.13 | 15 | 62-6600 | |
| 17.04 | 22.1 | 16.5 | 62-83600 | |
| 17.1 | 21.04 | 22.1 | 62-92600 | |
| 17.12 | 19.02 | 20.1 | 62-82600 | |
| 17.44 | 20.69 | 17 | 62-3600 | |
| 17.45 | 20.7 | 16.7 | 62-6603 | |
| 17.46 | 21.55 | 9.4 | 62-91600 | |
| 17.48 | 22.3 | 28.5 | 62-1601 | |
| 17.49 | 20.84 | 17.9 | 62-3601 | |
| 18.04 | 24.05 | 19.1 | 62-81703 | |
| 18.06 | 22.05 | 6.5 | 62-91702 | |
| 18.08 | 22.07 | 5 | 62-94702 | |
| 18.2 | 22.05 | 6.9 | 62-81702 | |
| 18.8 | 22.3 | 15 | 62-3700-1 | |
| 20.04 | 10.7 | 62-83700-8 | |
| 18.86 | 22.3 | 15 | 62-3700 | |
| 19.05 | 23.04 | 20 | 62-84700 | |
| 23.08 | 12.7 | 62-91700 | |
| 19.06 | 22.28 | 6.1 | 62-2700 | |
| 19.1 | 23.11 | 9.8 | 62-91701 | |
| 31.88 | 10 | 62-1700 | |
| 19.11 | 20.68 | 18.3 | 62-1701 | |
| 19.13 | 22.34 | 18.3 | 62-1703 | |
| 25.08 | 9.9 | 62-91406 | |
| 19.16 | 25.45 | 19.1 | 62-5700 | |
| 19.2 | 20.74 | 9.5 | 62-1704 | |
| 19.3 | 22.67 | 19.1 | 62-1702 | |
| 20.09 | 25.1 | 8.8 | 62-81700 | |
| 10.8 | 62-81701 | |
| 20.24 | 24.05 | 14.6 | 62-93700 | |
| 20.25 | 26.54 | 12.1 | 62-81800 | |
| 21.29 | 24.4 | 25 | 62-1801 | |
| 31.8 | 62-1800 | |
| 21.63 | 26.47 | 12.4 | 62-81802 | |
| 22.06 | 26.03 | 5.6 | 62-81801 | |
| 22.15 | 28.64 | 30.5 | 62-5800 | |
| 22.28 | 26.73 | 8.1 | 62-1805 | |
| 9.1 | 62-1803 | |
| 22.33 | 28.64 | 9 | 62-1804 | |
| 22.53 | 25.63 | 25.4 | 62-1802 | |
| 22.73 | 27.06 | 6 | 62-85900 | |
| 22.77 | 28.56 | 5.8 | 62-82800 | |
| 23.06 | 27.06 | 6 | 62-85901 | |
| 23.19 | 28.51 | 3.9 | 62-82801 | |
| 23.74 | 25.44 | 10.5 | 62-1902-8 | |
| 23.9 | 29.24 | 6.1 | 62-82904 | |
| 25.6 | 31.8 | 9.2 | 62-1903 | |
| 25.98 | 30.07 | 11.6 | 62-91901 | 33.02*2.5 |
| 26.12 | 32.12 | 27.9 | 62-81900 | |
| 28.5 | 31.75 | 13 | 62-92900 | 38.1*2.4 |
| 30.15 | 35.05 | 23.1 | 62-82900 | |
| Prod Model: |
HD1.1-926 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| ID: |
12.5mm +0.05/+0.077 |
| Od: |
16.5mm +0.023/+0.05 |
| L: |
9.9mm -0.1/+0.1 |
| Density: |
6.2-6.8g/cm3 |
| Concentricity: |
0.06 |
| Oil Content: |
>18% |
| Certification: |
ISO |
| Automatic: |
Automatic |
| Standard: |
Standard |
| Condition: |
New |
| Material: |
Copper |

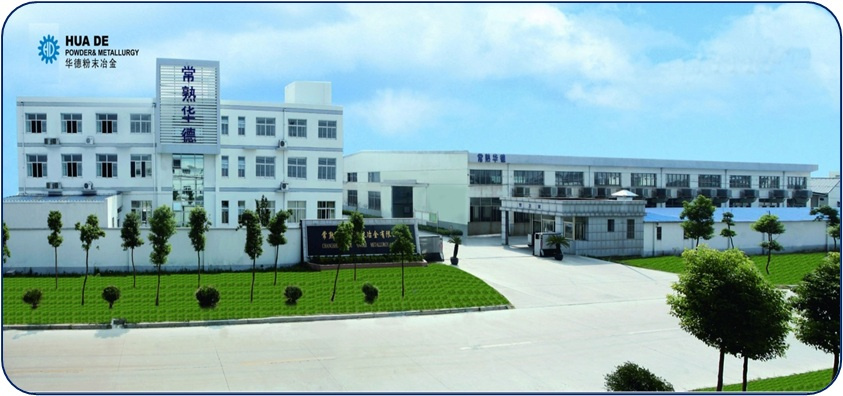

Changshu Huade Powder Metallurgy Co., Ltd was established in 1976 and is located in Dongbang Town, Changshu City, centrally located between Shanghai, Suzhou and Wuxi, enjoying convenient transportation access and a beautiful environment. Our company covers an area of 16, 666 square meters and has over 200 employees.
Our company has rich experience in the Auto Spare Part industry. Our main products include planetary gear, internal ring gear, bushing that are used on auto starting motor, which are directly supplied to the leading automobile motor manufacturers in China. Key customers include S. Valeo in Shanghai, Jinzhou Halla Electrical Equipment Co., Ltd and Denso in Tianjin and Japan, etc.
Besides, we are making great efforts to develop new products to meet different requirements. Our company has quality control equipment to strictly control product quality. Hua-De's QS-9000, ISO-9002, lSO/TSl6949 and ISO 14001 certifications ensure Hua-De's dedication to quality and environmental responsibility.
Adhering to the business principle of mutual benefits, we have built up a good reputation among our customers due to our perfect services, quality products and competitive prices.
We warmly welcome customers from at home and abroad to cooperate with us for common success.
