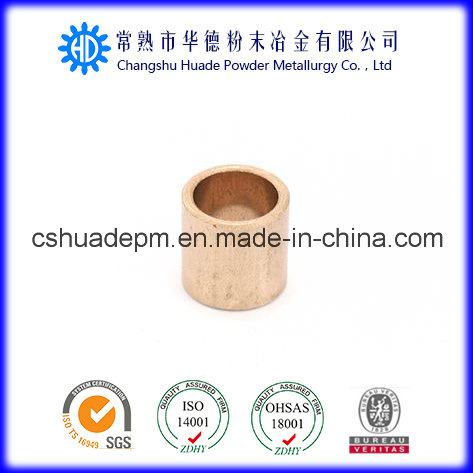

Bronze Bushing for Auto Starter

Name: Bronze Bushing for Auto Starter
Brand: ibuyautoparts.com
SKU: 771551725
Availability: InStock
Rating: 4.5 (147 reviews)

Price:	US $ 0.15-0.2/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	5000/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

We are the professional manufacturer of bushing for more than 30 years. We produce a wide range of bushing items. And we can provide steady quality according to OEM or customization.
It is widely applied on various automobile engines, vehicles,hoist machines and so on.

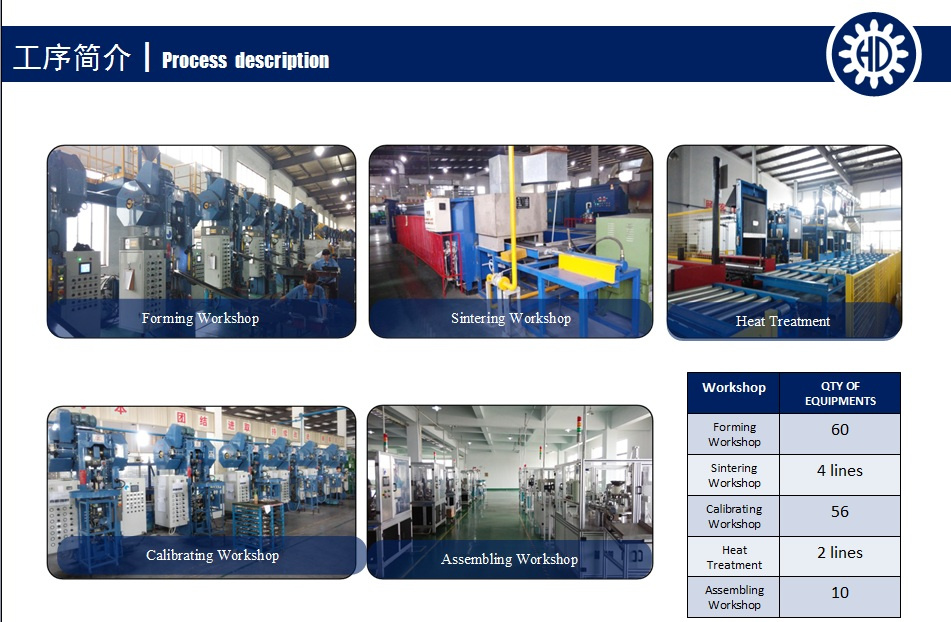

Process Flow Chart for Bushing:
1.Putting raw materials into storage and testing them
2.Mixing powder
3.Forming
4.Sintering
5.Calibrating
6.Oil impregnation
7.Testing
8.Packing
9.Putting products into storage

Items	Bushings, bearings
Materials	Bronze
Vehicles	For Volkswagen, General Motors, Hyundai, KIA, Dongfeng-Citroen, Jetta and so on.
Functions	Lubricating, reducing friction and so on

ID(unit:mm)	OD(unit:mm)	L(unit:mm)	WAI No.	Notes(Shoulder)
10.03	16.55	13.9	62-91306	18.54*2.8
10.05	14.05	12.5	62-83300
10.08	13.96	10	62-2300
10.08	13.96	8.5	62-2301
10.12	13	10.5	62-83303	16.05*2
10.13	14.08	9.4	62-1307
10.13	14.02	12.1	62-83302
10.97	13.06	12.7	62-83400
10.97	14.02	13	62-83403
11.02	13.59	14	62-91400
11.03	13.23	12.7	62-82400
	12.56	11.9	62-91410
	14.68	10.9	62-82405
11.04	14.67	7.8	62-82406
11.05	13.03	12.7	62-83405
11.05	13.03	13	62-83402
11.06	15.06	14.7	62-81400
11.1	15.91	12.7	62-1408-1
11.16	13.2	12.7	62-1407
11.17	15.91	12.7	62-1408
11.48	15.01	12.9	62-81401
11.54	15.04	14	62-81407
11.58	15.07	11.7	62-81406
11.76	13.2	18.3	62-1400-4
11.79	15.13	10.2	62-2402-3
11.82	13.2	18.3	62-1400-3
11.82	13.2	12.7	62-1402-3
11.86	15.13	18.7	62-2400-2
11.86	16.04	10.2	62-2403-2
11.89	13.2	12.7	62-1402-2
	13.2	18.3	62-1400-2
	15.13	12.7	62-1403-2
11.91	15.13	10.2	62-2402-2
11.94	15.13	18.7	62-2400-1
	16.04	10.2	62-2403-1
	13.2	18.3	62-1400-1
11.95	13.2	12.7	62-1402-1
11.95	15.13	10.2	62-2402-1
11.96	15.13	12.7	62-1403-1
11.98	15.9	19.1	62-1401
11.99	15.26	19.1	62-3400
11.99	16.05	16.1	62-91408
12	15.13	18.7	62-2400
	16.04	10.2	62-2403
	15.91	12.7	62-1404
	15.91	16.5	62-1405
12.01	13.13	15.6	62-2404
	13.13	18.3	62-2401
	13.2	12.7	62-1402
		12.7	62-1402-8
		18.3	62-1400
		18.3	62-1400-8
	14.05	12	62-91401
	16	9.5	62-83404
	16.1	16.1	62-91402
12.02	15.13	12.7	62-1403
12.04	15.06	14.4	62-94401
12.04	15.13	10.2	62-2402
12.07	14.12	13.9	62-91409
12.07	13.55	11.4	62-91411
12.08	15.09	11.9	62-94400
12.08	15.54	5.7	62-81408
12.09	16.08	11.9	62-81403
12.47	16.51	10.3	62-82401
12.5	16.03	11.9	62-81402-1
12.52	16.48	14	62-82404
12.52	16.54	16	62-91407
12.55	14.73	14	62-82402
12.55	16.61	15.7	62-91404
12.56	16.51	11.4	62-91403
12.57	16.08	15	62-81404
12.57	18.57	19.4	62-93400
12.58	16.03	11.9	62-81402
12.59	14.03	19.1	62-81409
12.6	15.49	10.4	62-82403
12.66	14.32	19.8	62-1500-2
12.66	15.9	19.7	62-1406-1
12.72	14.32	19.8	62-1500-1
12.73	15.9	19.7	62-1406
12.73	15.95	19	62-6500-1
12.75	15.93	13.9	62-92501
12.78	15.95	19	62-6500
12.78	14.32	19.8	62-1500
12.81	19.14	14.1	62-92500
13.04	16.05	16	62-84502
13.97	18.01	15.9	62-99500
14.02	18.06	13.8	62-91502
14.02	20.04	10	62-91500
14.04	16.02	16	62-84503
14.04	18.04	19.9	62-81500
14.05	17.08	16	62-84500
	17.54	15	62-91501
	17.55	18.9	62-84501
	20.04	17.1	62-91503
14.07	17.06	16	62-84504
14.07	18.03	17	62-81502
14.08	15.95	16.5	62-1501-4
14.09	16.09	10.9	62-83502
14.11	20.07	11.8	62-93500
14.14	15.95	16.5	62-1501-3
14.17	17.27	9.5	62-83500
14.2	15.95	16.5	62-1501-2
14.25	17.25	13.1	62-83501
14.26	19.91	20.3	81-1300-1
14.27	15.95	16.5	62-1501-1
14.27	19.1	19.1	62-1504-1
14.3	15.95	20.6	62-1502
14.3	17.63	18.5	81-6300
14.33	17.26	12.5	62-2500
	19.91	20.3	81-1300
	15.95	16.5	62-1501
	17.51	19.1	62-1505
14.34	19.1	19.1	62-1504
14.34	21.92	19.1	62-1504-7
14.44	19.19	24.6	62-1503
15.04	19.05	20	62-84505
15.05	20.07	16	62-81501
15.06	19.1	9.9	62-83503
15.75	19.51	10	62-91601
15.77	19.11	15.2	62-2600-3
15.83	19.11	15.2	62-2600-2
15.89	21.92	24.5	62-1600-7
15.9	19.11	15.2	62-2600-1
	19.11	11.4	62-2604-1
	19.13	18.7	62-6602-1
	19.13	24.6	62-6601
15.91	19.19	22	62-1600-1
15.93	19.13	29.2	62-2603
15.94	20.7	17.4	62-2601
15.95	17.53	14.3	62-2605
15.95	19.13	18.7	62-6602
15.96	19.11	11.4	62-2604
15.96	19.11	15.2	62-2600
15.98	17.45	25	62-1603-8
15.98	19.19	22	62-1600
16.05	19.06	7.1	62-81601
16.26	19.13	15	62-6600
17.04	22.1	16.5	62-83600
17.1	21.04	22.1	62-92600
17.12	19.02	20.1	62-82600
17.44	20.69	17	62-3600
17.45	20.7	16.7	62-6603
17.46	21.55	9.4	62-91600
17.48	22.3	28.5	62-1601
17.49	20.84	17.9	62-3601
18.04	24.05	19.1	62-81703
18.06	22.05	6.5	62-91702
18.08	22.07	5	62-94702
18.2	22.05	6.9	62-81702
18.8	22.3	15	62-3700-1
18.8	20.04	10.7	62-83700-8
18.86	22.3	15	62-3700
19.05	23.04	20	62-84700
19.05	23.08	12.7	62-91700
19.06	22.28	6.1	62-2700
19.1	23.11	9.8	62-91701
19.1	31.88	10	62-1700
19.11	20.68	18.3	62-1701
19.13	22.34	18.3	62-1703
19.13	25.08	9.9	62-91406
19.16	25.45	19.1	62-5700
19.2	20.74	9.5	62-1704
19.3	22.67	19.1	62-1702
20.09	25.1	8.8	62-81700
20.09	25.1	10.8	62-81701
20.24	24.05	14.6	62-93700
20.25	26.54	12.1	62-81800
21.29	24.4	25	62-1801
21.29	24.4	31.8	62-1800
21.63	26.47	12.4	62-81802
22.06	26.03	5.6	62-81801
22.15	28.64	30.5	62-5800
22.28	26.73	8.1	62-1805
22.28	26.73	9.1	62-1803
22.33	28.64	9	62-1804
22.53	25.63	25.4	62-1802
22.73	27.06	6	62-85900
22.77	28.56	5.8	62-82800
23.06	27.06	6	62-85901
23.19	28.51	3.9	62-82801
23.74	25.44	10.5	62-1902-8
23.9	29.24	6.1	62-82904
25.6	31.8	9.2	62-1903
25.98	30.07	11.6	62-91901	33.02*2.5
26.12	32.12	27.9	62-81900
28.5	31.75	13	62-92900	38.1*2.4
30.15	35.05	23.1	62-82900

Prod Model:	HD1.1-392
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
ID:	11.1mm +0.07/+0.09
Od:	15.9mm +0.01/+0.03
Height:	12.7mm
Oil Content:	>18%
Type:	Engine Bearing
Certification:	TS16949
ABS:	Without ABS
Material:	Bronze

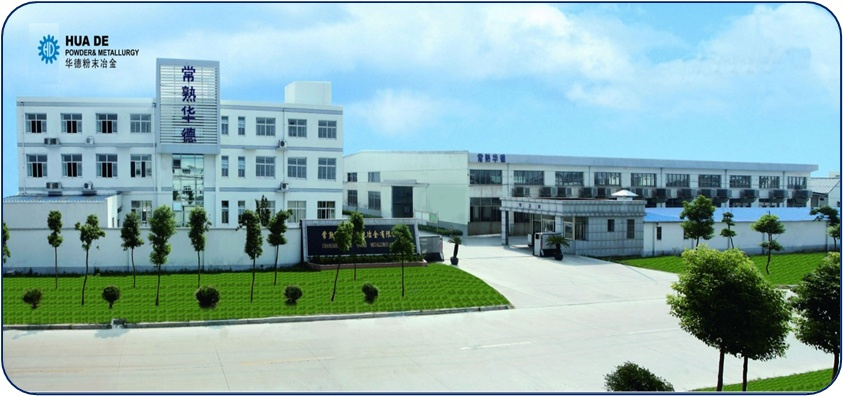

Changshu Huade Powder Metallurgy Co., Ltd was established in 1976 and is located in Dongbang Town, Changshu City, centrally located between Shanghai, Suzhou and Wuxi, enjoying convenient transportation access and a beautiful environment. Our company covers an area of 16, 666 square meters and has over 200 employees.

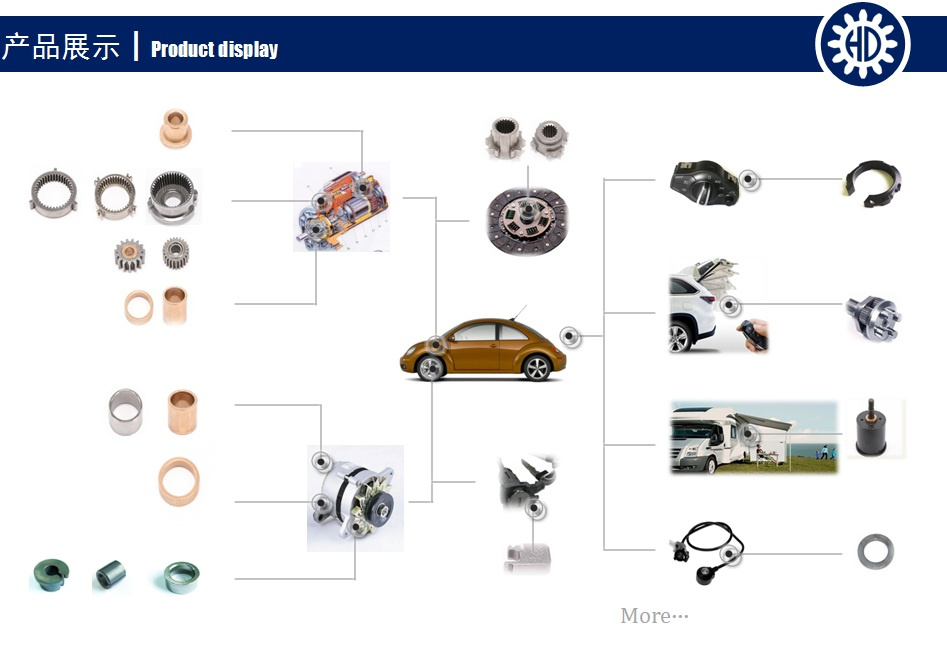

Our company has rich experience in the Auto Spare Part industry. Our main products include planetary gear, internal ring gear, bushing that are used on auto starting motor, which are directly supplied to the leading automobile motor manufacturers in China. Key customers include S. Valeo in Shanghai, Jinzhou Halla Electrical Equipment Co., Ltd and Denso in Tianjin and Japan, etc.

Besides, we are making great efforts to develop new products to meet different requirements. Our company has quality control equipment to strictly control product quality. Hua-De's QS-9000, ISO-9002, lSO/TSl6949 and ISO 14001 certifications ensure Hua-De's dedication to quality and environmental responsibility.

Adhering to the business principle of mutual benefits, we have built up a good reputation among our customers due to our perfect services, quality products and competitive prices.

We warmly welcome customers from at home and abroad to cooperate with us for common success.
