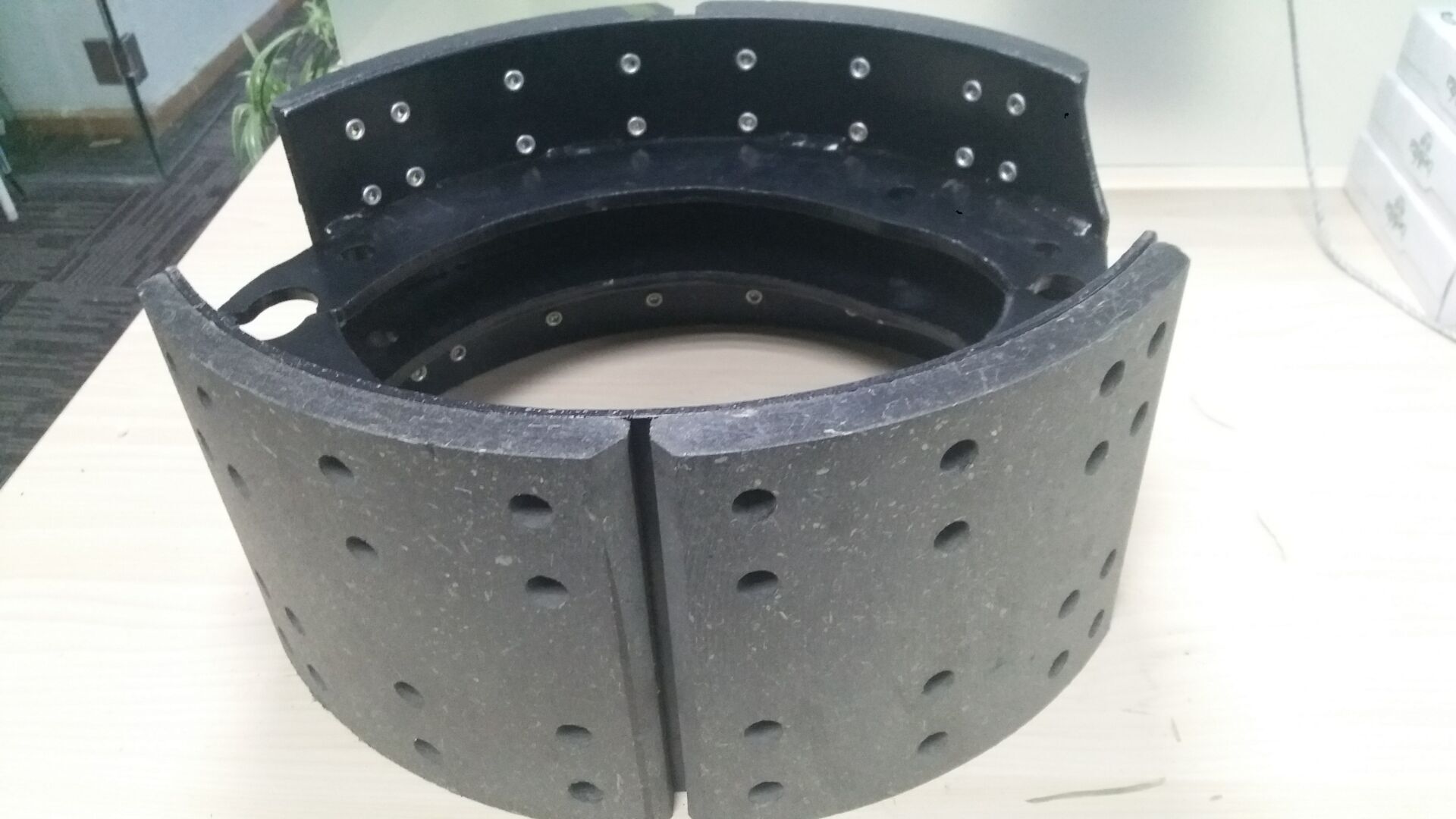

Brake Shoe (4702 4515 4707 4709) for Truck Parts
Price: |
US $ 1-5/Piece |
Min Order: |
50/Piece |
Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Specifications
Model | 4709 |
Dimension | 420X180 / 16.5X7" |
Lining | Non-Asbestos |
Paint | Powder coating |
Heat Treatment | Hardness: HRC 35-45 |
Material | Q345 / Gr.50 / E355DD / FE510D1 |
Certificate | ISO/TS16949 |
INSPECTION ERPORT |
Product Description | Brake shoes | MODEL# | 4515 | Customer | |
Drawing NO. | HBAK-020 | Quantity | | PO# | |
Material Quality | J-Q345B/M-Q235B | | | Ship Date | |
Inspection Standard | Instructions and drawings | Inspection Qty | 5PC |
Test Project | Standard | Inspection method | Test value | Result |
R(cambered surface) | R203±0.5 | Circular plate | 203.1 | 203.1 | 203.2 | 202.95 | 203.15 | Pass |
Center distance | 323.85±0.25 | Vernier caliper | 323.9 | 323.85 | 323.85 | 323.85 | 323.8 | Pass |
Width | 177.8±0.25 | Vernier caliper | 177.8 | 177.85 | 177.9 | 177.8 | 177.8 | Pass |
R1 | R13.5 | Mandrel | Pass | Pass | Pass | Pass | Pass | Pass |
R2 | R9.5 | Mandrel | Pass | Pass | Pass | Pass | Pass | Pass |
D1 of Stiffened plate | 38.6±0.3 | Vernier caliper | 38.6 | 38.7 | 38.6 | 38.5 | 38.6 | Pass |
D2 of Stiffened plate | 38.6±0.3 | Vernier caliper | 38.6 | 38.6 | 38.5 | 38.5 | 38.6 | Pass |
Welding | Internal standard | Visual | Pass | Pass | Pass | Pass | Pass | Pass |
Quenching hardness | HRC35±5 | Hardness tester | 35 | 36 | 35 | 37 | 39 | Pass |
Thickness of face-plate | 4.5±0.25 | Microcalliper | 4.35 | 4.5 | 4.45 | 4.35 | 4.35 | Pass |
Diameter of hole on the face-plate | Φ6.6 | Vernier caliper | 6.6 | 6.6 | 6.6 | 6.6 | 6.6 | Pass |
Thickness of stiffened plate | 7.75±0.25 | Microcalliper | 7.75 | 7.65 | 7.75 | 7.75 | 7.65 | Pass |
Deviation of face-plate | 0.3mm | Feeler | Pass | Pass | Pass | Pass | Pass | Pass |
Appearance | Electrophoresis | Visual | Pass | Pass | Pass | Pass | Pass | Pass |
Packaging Information |
Description | Qty /pallet | Qty /20" |
bare brake shoe | 168pcs | 3360 |
lined brake shoe assembly | 126pcs | 2520 |
2 lined brake shoe with kits in carton box | 90 sets | 1800 |
Our factory main products is for brake shoe / brake pad / clutch plate . Throught many years to study how is the best brake shoe , how to offer our customers good products and hope our customer to get more reputation and expand brand market .
Prod Model: |
4515 4707 4709 4702 |
Type: |
Brake Shoes |
Material: |
Friction Material |
Position: |
None |
Classification: |
Friction Brake |

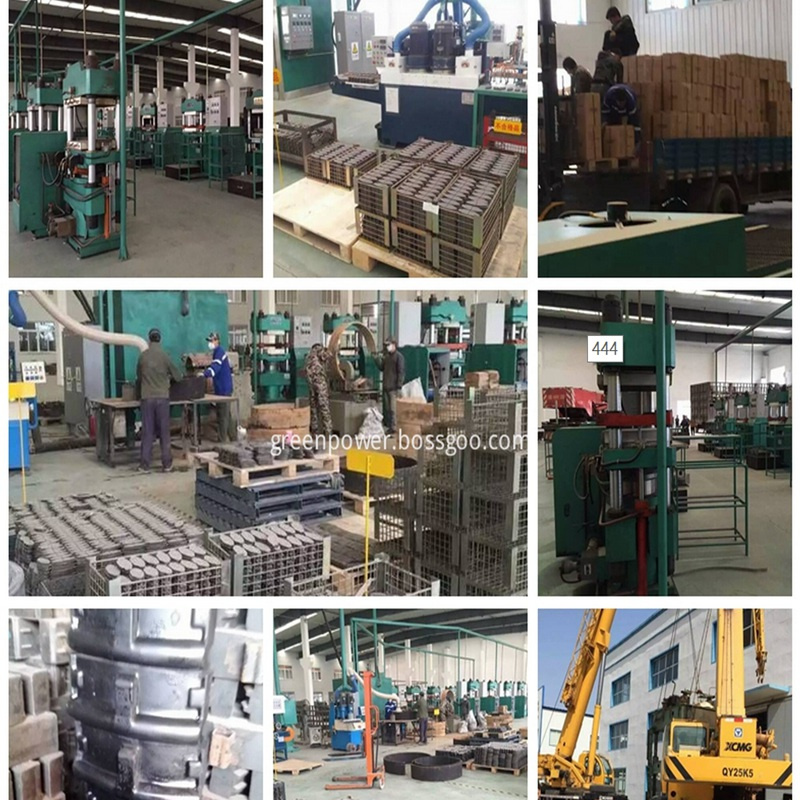

Green power industry Co., Ltd. is a specialized supplier of auto parts and service in China. With the brand "GPI", Green power's products cover clutch systems and brake systems, including clutch plates, clutch discs, clutch covers, clutch facing, clutch buttons, brake pads, brake shoes, brake lining, and brake rolls. We work under the philosophy that "Quality First, Credibility First", and we're fully committed to providing our customers with the highest quality products, most affordable prices, excellent customer care and after sale service in the industry. Our professional management staff is service and customer oriented. Due to the good management system, superior quality control and excellent service after sale, we have constant enjoyed good reputation in the world market. We have our own manufacturers, and accept OEM order, the professional production staff who will look after your products and make sure you achieve the highest quality for that product. All the finished cargo will be 100% examined before shipped, We firm believe that a cheaper production does not mean a lower quality, we are able to make the perfect products for less money, and make sure that you get what you have ordered. The hospitable and wisdom GPI people sincerely anticipate your arrival and at the same time we are kindly looking forward to becoming your strategic partner based on our professional experience in the manufacture and service. GPI industry would like to be your purchase agent in China to take care of sourcing, production follow, logistic, business trip and after sales service.
