Bosch Diesel Fuel Injection Pump Test Bench

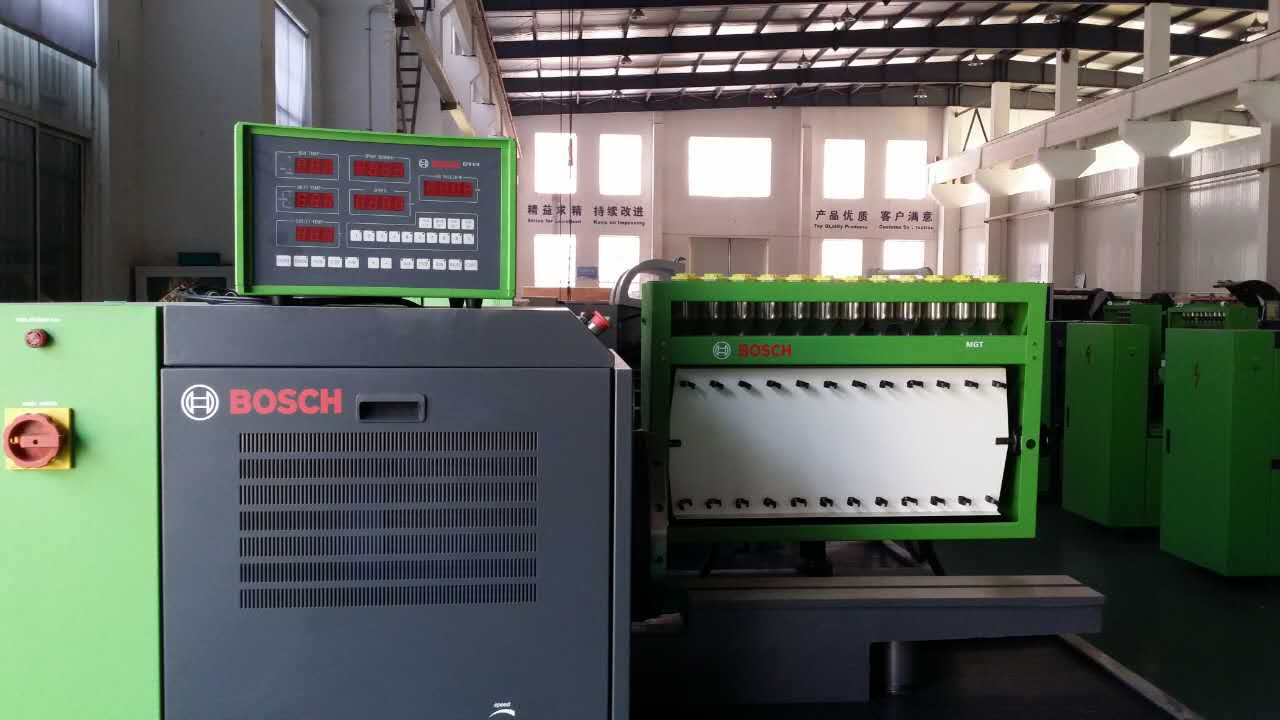

Name: Bosch Diesel Fuel Injection Pump Test Bench
Brand: ibuyautoparts.com
SKU: 686563315
Availability: InStock
Rating: 4.8 (143 reviews)

Price:	US $ 5000-5500/Piece
Trade Terms:	FOB,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

BOSCH Diesel Fuel Injection Pump Test Bench, 12 cylinders, Controlled and measured by Computer in real time.
Power: 7.5kw, 11kw, 15kw, 18.5kw, 22kw etc.

diesel fuel injection test bench is our newly research hi-technology It controls by industrial computer. It included two kinds of operation systems: Color liquid crystal display screen (LCD Monitor) and two groups of four digit nixie tube display (digital display ).

It included three kinds of controlling ways: LCD touch screen control, panel keyboard control and remote control. The panel keyboard of on the right of the computer provide all the control functions, touch screen and remote screen integrated the shortcut of commonly operational controlling way. Rotary speed, temperature, pressure, travel of stroke advance angle and the technical data of fuel injection pumps display on screen and can print.

This series test bench adopt high quality frequency conversing device, and it has characteristic with hi-reliability, ultra-low-noise, energy save, high output torque, perfect auto-protecting function and operate easy. It is the easiest, the quickest, the most reliable in our business.

Main function
1. Measurement of each cylinder delivery at any speed.
2. Test point and interval angle of oil supply of injection pump.
3. Checking and adjust the mechanical governor.
4. Checking and adjusting the distributor pump.
5. Experiment and adjusting of behavior of supercharging and compensatory device.
6. Measurement of oil return of distributing pump
7. Testing of the electromagnetic valve of distributor pump. (12V/24V)
8. Measurement of the internal pressure of distributor pump.
9. Checking of the advance angle of advance device. (on request)
10. Checking the sealing of injection pump body
11. Install tube of auto-sucking oil supply can check on oil supply pump(including
12. Checking the travel of stroke (on request)
13.17'' LCD touch screen, two operating systems

Cylinders	Output power	RPM	RPM-Preset	Temp. Control	Positive Pressure	Negative Pressure
12	7.5kw 11 kw 15 kw 18.5kw 22kw	0-4000	√	√	√	√
Air supply	12/24 DC power supply	Internal pressure of VE pump	Oil return of VE pump	Rack Stroke	Advance Angel	Capability with pump type
√	√	√	√	√ (On request)	√ (On request)	All in- line and rotary pump

Prod Model:	BOSCH
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Place Of Origin:	Hubei, China (Mainland)
Brand Name:	12psdw
Model Number:	12psdw-S
Power:	Electronic
Usage:	Auto Testing Machine
Pump Test Bench:	Fuel Inejction Pump Tester
Quality:	High
Certification:	ISO
Update Method:	by Internet
