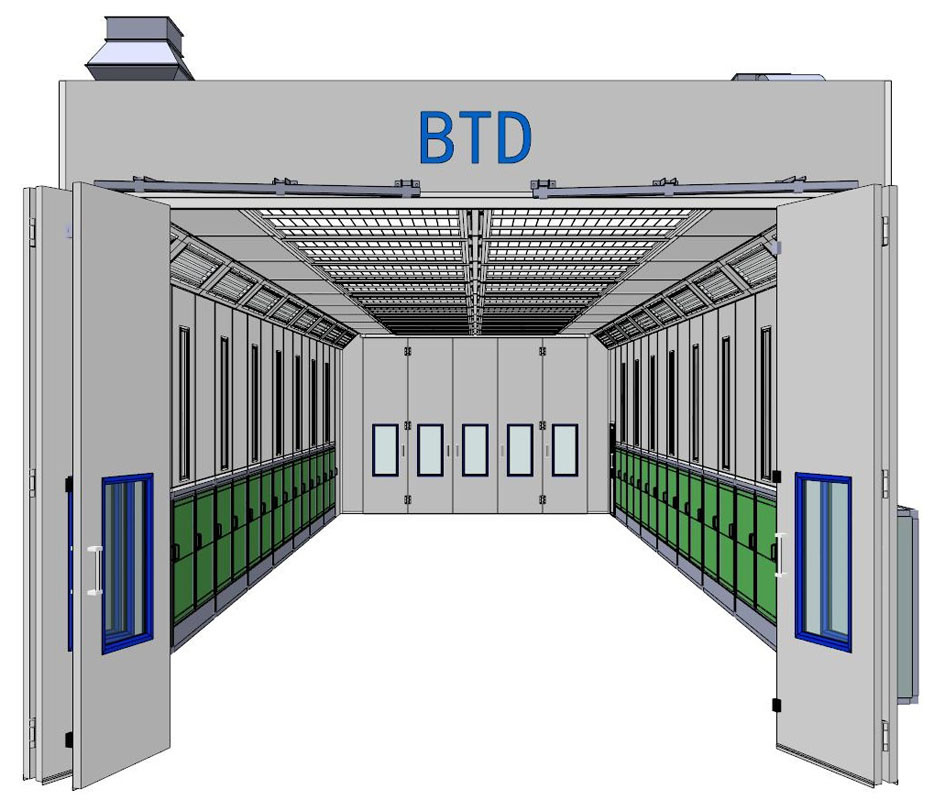

Large spray booth(CE approved, ISO 9000 safety control)
1. CE approved
2. German Technology
3. Suitable for painting bus and truck
4. Spray booth professional manufacturer
5. Factory price, energy saving
6. High quality, best sell service
7. We can meet at customer's special requirement
Model: BTD-15-50-B
| Model | BTD-15-50-B |
| Booth Dimensions | |
| -Internal Size(L×B×H) | 15000×5000×5000mm |
| -External Size(L×B×H) | 15170×7700×5900 mm |
| Foundation and Floor | |
-Loading Capacity
of Galvanized Grating | NO |
| - Surface Area | 33M²2 rows air exhaust plenum chamber |
| - Metal Basement | NO |
| - Drive-in Ramps | NO |
| Wall and Door | |
| - Steel Wall and Roof Panel | Double Construction
with Insulations EPS 60mm |
| -Thickness | Double Construction
with Insulations EPS 50mm |
3-Folded Entrance
Door With
Safety Glass Window | 4300×4800 mm (B×H) |
-Operators Door
With Safety ,
Glass Window | 800×2000 mm (B×H) |
| Lighting | |
| - Ceiling Lightings | 16 Units, each 4×36 W,
Total 2304W |
| - Side Lightings | 12Units, each 2×36 W,
Total 864W |
| - Brightness | >1000 Lux, IP54 Grade |
| Filtration | |
| - Pre filters | Fiberglass, Paint-Stop-Filters Plate type duel filters |
| - Ceiling Filters | EU5 Fine Filters, 6 Units |
| - Floor Filters | Fiberglass, Paint-Stop-Filters |

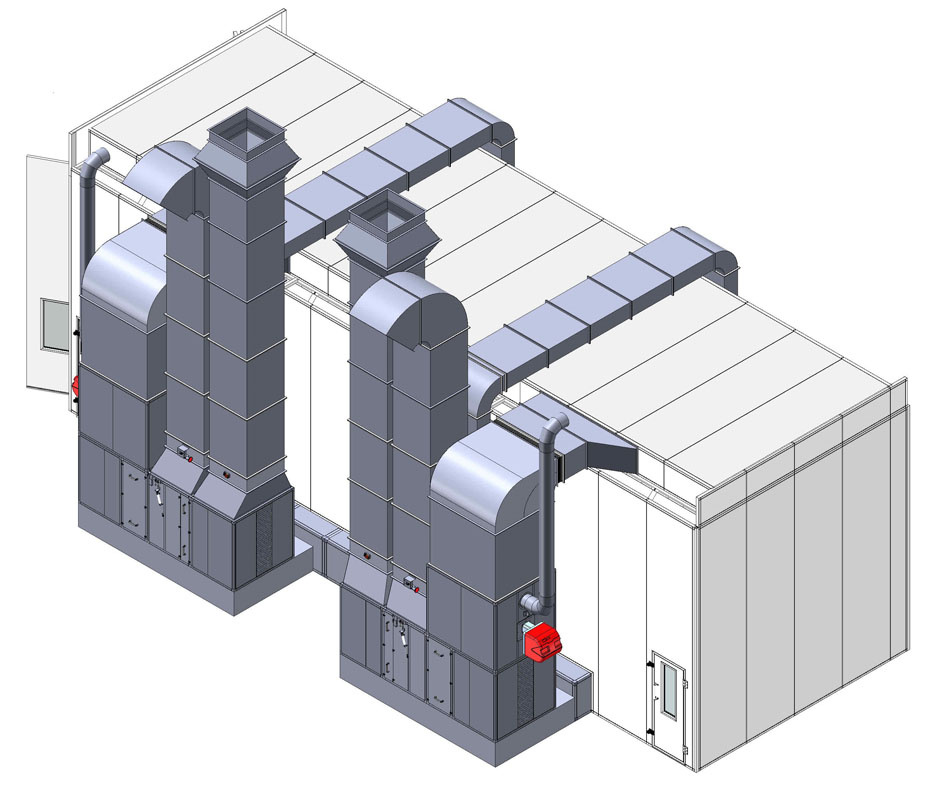

| Ventilation System | |
-Direct Drive
Motor (Fresh Air) | 2×7.5KW,970RPM,380V,50HZ motor certification CE |
-Direct Drive
Motor (Exhaust Air) | 2×7.5KW,970RPM,380V,50HZ Domestic
motor certification CE |
| - Fan Capacity | 50.000m³/h |
| - Air Flow Speed | +/- 0.20 m/s in an empty booth |
| Heating System | |
| - Heating Exchanger | Stainless Steel 1Gr18Ni9Ti |
-Heating
Exchange Capacity | 2×232KW(260.000cal/H) RIELLO |
| -Max. Drying Temperature | 80 °C |
| - Heating time | 10-15 min (from 20 to 60°)
by Drying Phase |
-Heating Type
(on option) | Diesel / Gas Burner |
| Control Board | |
| -Control system | Stander control
Delta Depressurization
start system
EN60204-1-2006 |
| -Function | Spraying ,baking, warming
spray paint, emergency
stop switch |
| -PLC | yes |
| -Inverter control | On option |
| -Import element | master device import element |
| -Overpressure Manometer | yes |
| - Alarm equipment | yes |
BTD Car Tools Co., Ltd is a professional manufacturer for car spraying, baking and largest automobile spraying/baking booth in South China since Year 2002 . With strong R&D experiences, advanced technology and guarantee quality , BTD brand spray booth is getting more and more popular all over the world .
BTD target is to be a leading enterprising manufacturer for high-end Spray Paint Booth and painting lines, BTD enjoys good reputation in Europe and hold the most market share for high-end Spray Paint Booth. All of which are compliant to CE directives. We has passed the ISO9001:2000 quality system certification and ensures that every department follows the articles of the system.
BTD has many agency and establish many showroom around the world ,customers can easy find our products in your countryif we have agency and showroom there . Meanwhile , we welcomes partners who are interested to be our agency .
spray booth / spray paint booth / inflatable spray booth / used spray booth for sale / portable spray booth / car spray booth price / spray booth for painting cars/semi down draft spray booth/automotive paint spray booth/truck spray booth/car spray oven bake boothspray bake paint booth/mini spray booth/automatic spray booth/spray booth paint booth bake oven/water wash spray booth/water curtain spray booth/retractable spray booth/cabinet spray booth/italy spray booth/spray booth car painting/ Car paint /auto paint
BTD Car Tools Co., Ltd is a professional manufacturer for car spraying, baking, painting and largest automobile spraying/baking/painting booth in South China since Year 2002. With strong R&D experiences, advanced technology and guarantee quality, BTD brand spray paint booth is getting more and more popular all over the world.
BTD company target is to be a leading enterprising manufacturer for high-end Spray Paint Booth and painting lines, BTD enjoys good reputation in Europe and hold the most market share for high-end Spray Paint Booth. All of which are compliant to CE directives. We has passed the ISO9001: 2000 quality system certification and ensures that every department follows the articles of the system.
BTD company also produces many other products, such as preparation room, retractable room, mixing room, air compressor, car lift and car bench. A variety of high-quality products meet customers' different needs.
BTD company has many agency and establish many showroom around the world, customers can easy find our products in your countryif we have agency and showroom there. Meanwhile, we welcomes partners who are interested to be our agency.
