| Prod Model: |
WLD-15000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| External Size: |
15.15X8.85X5.6m |
| Internal Size: |
15X5X4.8m |
| Certification: |
CE |
| Airflow Direction: |
Fully Undershot-type |
| Heating Mode: |
Diesel |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
| Substrate: |
EPS or Rock Wool |
| Brand: |
Weilongda |
Product Description
large size spray booth,industrial spray booth, non standard sizes can be customized
WLD15000 large size Bus truck Spray Booth Specifications:
12m,15m,18m,20m,22m...any sizes can be customized;
3D lift in the big spray booth is optional.
Air exhaust from two sides of spray room or pit are optional;
Drive through type door, rolling door and folding door are optional.
Air generation system on the top of spray room is optional.

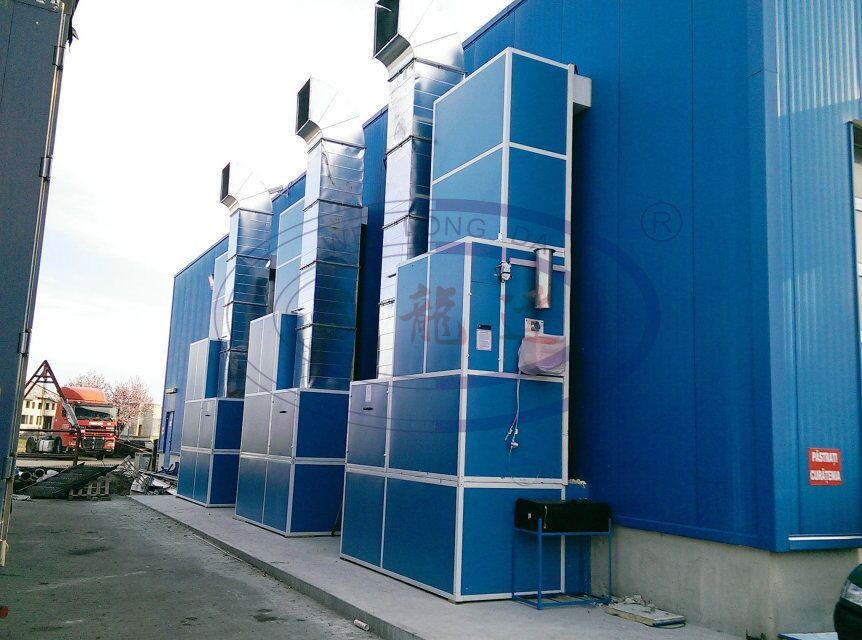

WLD15000 CE large size Bus truck Spray Booth Specifications
(air generation system at the top of spray booth):
| External Size | L15150*W8850*H5600mm | Front Door | W4000*H4800 |
| Internal Size | L15000*W5000*H4800mm | Total Power | 47KW |
| Cabin System | Wallboard | Fire-retardant composite molding Sandwich style EPS(epispastics polystyrene) (Rock wool and PU are optional )75mm thickness; The Colorful steel skin boards have been HDG(hot dip galvanizing),service life can reach 20 years without rusting. It keeps high insulation performance. Four colors for your choice, including blue,red,orange and white. High quality galvanized steel roof panel. |
| Door | 4 pieces of aluminum front doors. Size: 4000(w)*4800(h). 2 pieces of emergency door. |
| Air Circulation System | Intake Fan
(3 group) | 2x4kw intake fan/per group; totally 6 units of 4kw intake fans. BELIMO 20N electric damper. Siemens technology production, large air volume and low noise. Air flow:72,000m3/h. The wire core of our fans is full copper so our fans are very durable. |
Exhaust Fan
(3 group) | 1x5.5kw exhaust fan/ per group, totally 3 units of 5.5kw exhaust fan. Multi-layer fiberglass filter. Siemens technology production, large air volume and low noise. Air flow:46,500m3/h. |
| Air Pipe | Made of Galvanized steel sheet consisted of 4 pieces of straight pipe750*750*1000, and 1piece of elbow. Air intake cabinet and air ducting for option. |
| Filtering | Multilayer filtering structure. The primary filter can capture granules larger than10μm. Ceiling filter capture granules bigger than 5μm. The green filter on the basement plenum and exhaust fan can filter the paint and dust emission. The air cleanliness in the working environment can reach 98%. |
| Heating System | Burner(3 group) | Original Italy RIELLO G20 diesel burner, 200,000Kcal/h per unit, total 3 units of burners and 600,000Kcal/h. Max temperature at 80°C. |
| Heat Exchanger | Two layers. The two layers heat exchanger is made of 1.5mm thickness stainless steel which features more heat dissipating surface, better heat exchange and better burner efficiency. The heat exchange rate reaches 85%.Two layers to make our heating system safer and get higher heat exchange rate. What is more, we make two wings to make the temperature rise more quickly and save energy. |
| Air make up cabinet | The surface plate is powder coated galvanized plate, antirust, strong and beautiful; The frame is treated by hot-dip, antirust and strong, more durable than ordinary surface treatment, more beautiful, nodes with no damage spot, rigidity. |
| Oil tank support | Tank carefully made of high quality steel, the powder coating treatment, beautiful and durable. |
| Fume pipe | Fume pipe made of galvanized sheet, diameter of 190mm, 4 pieces of 1000mm long straight pipe, two 90 ° elbows. |
| LED Lighting System | Light tube | Ceiling light has 18units×4pieces of 16w LED lamps. Side light has 22units×2pieces of 16kw LED lamps. Total 116pieces of 16w LED lamps. 900 Lux. LED lamps are more bright and durable. The grade of lighting box's dustproof and waterproof reach IP54 grade. |
| Light box | Welded galvanized plate, powder coating treatment, stiffness, repeated disassembly easy deformation, surface brightness, color uniformity. |
| Filtering System | Pre-filter | Grade G2 plate type fiber glass filter. Dual filtering structure. The
pre-filter can capture granules larger than 10μm. |
| Ceiling filter | EU5 grade high efficient filter. Ceiling filter capture granules bigger than 5μm.The air cleanliness in the working environment can reaches 98%. |
| Ceiling filter support | Made of tube steel frame, thickness of 1.2mm, epoxy powder coating, antirust and strong, rigid, beautiful and durable, can be repeated disassembly, not easy to damage, easy to replace filter cotton. |
| Pollution Control System | Multi-layer fiberglass filter, including basement Plenum (side exhaust) and Exhaust fan filter. The air cleanliness in the working environment can reach 98%. |
| Control system | Control panel | Microcomputer control system. Cabinet type, standard control system, easy to control and maintain. |
| Function | Painting, constant temperature painting , drying, lighting, painting time and drying time setting ;emergency stop switch, failure indication, over-temperature alarm indication,especially with over-temperature and over-pressure alarm device. The electricity will be cut off once alarm devices alert. It makes our booth very safe. |
