Big Bus Spray Booth Truck Painting Room

Big Bus Spray Booth Truck Painting Room
Price: US $ 1-40169/Set
Trade Terms: FOB,CFR,EXW
Min Order: 1/Set
Pay Type: T/T
Prod Model: BTD-15-50-D
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Management Certification: ISO9001: 2000
Technology: German Technology
Warranty Time: 2 Years
Service Time: Lifelong Maintenance
Usage: Bus and Truck Spraying and Baking
Color: White
PLC: Yes
Heating Type: Diesel / Gas Burner
Alarm Equipment: Yes
Voltage: 380V50Hz3pH for Motors, 220V50Hz1pH for Lights
Certification: CE
Airflow Direction: Fully Undershot-type
Heating Mode: Diesel
Paint Mist Treatment: Dry-type
Condition: New
Type: Spray Booth
Brand: Btd

Product Description

Big bus spray booth
1. CE approved
2. German Technology
3. Suitable for painting bus and truck
4. Spray booth professional manufacturer
5. Factory price, energy saving
6. High quality, best sell service, timely delivery
7. We can meet at customer's special requirement

Other conditions and terms:
1. Payment term: T/T 50% advanced after order confirmed, T/T 50% balance paid before delivery.
2. Delivery date: 10-15 days after order confirmed.
3. Warranty: 2 years. During the warranty time, any problem caused by products' quality, BTD has responsibility to offer free spare parts to customers freely and bear the delivery cost for DHL or TNT Carrier.
4. Quality: Our products are welcomed in Europe, our quality meets the requirement of European market.
5. Service time: Life long maintenance

Model: BTD-15-50-D
ModelBTD-15-50-D
Booth Dimensions
- Internal Size(L×B×H)15000×5000×5000mm
- External Size(L×B×H)15150×6500×5900 mm
Foundation and Floor
-Loading Capacity
of Galvanized Grating
3500KG/ wheel
- Surface Area12M²1 Galvanized
Grating gills
- Metal Basement1000mm Height should be need to dig foundation
- Drive-in RampsNO
Wall and Door
- Steel Wall and Roof PanelDouble Construction
with Insulations EPS 60mm
- ThicknessDouble Construction ,
with Insulations EPS 50mm

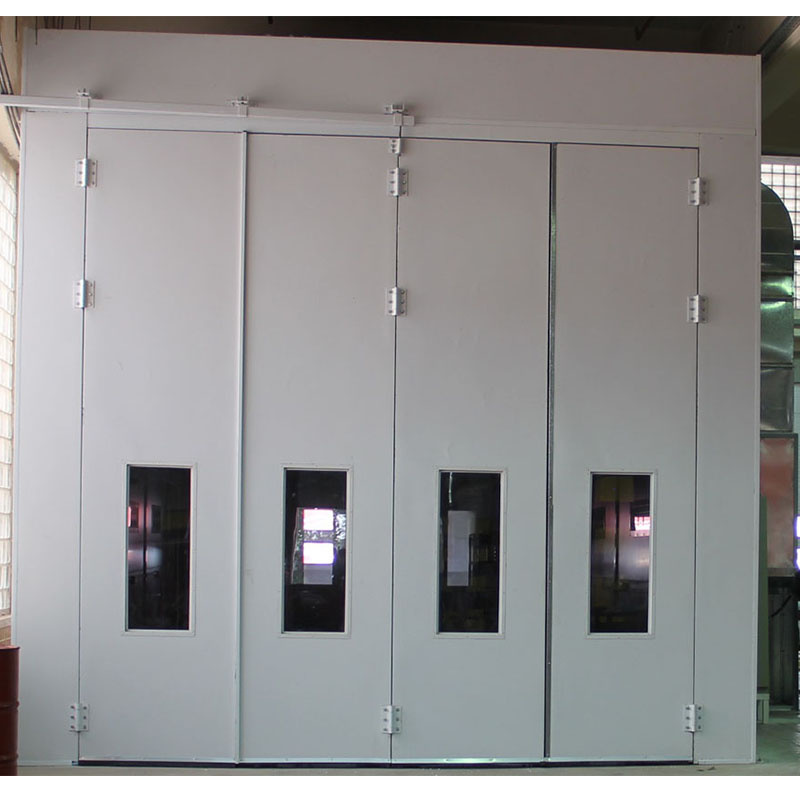

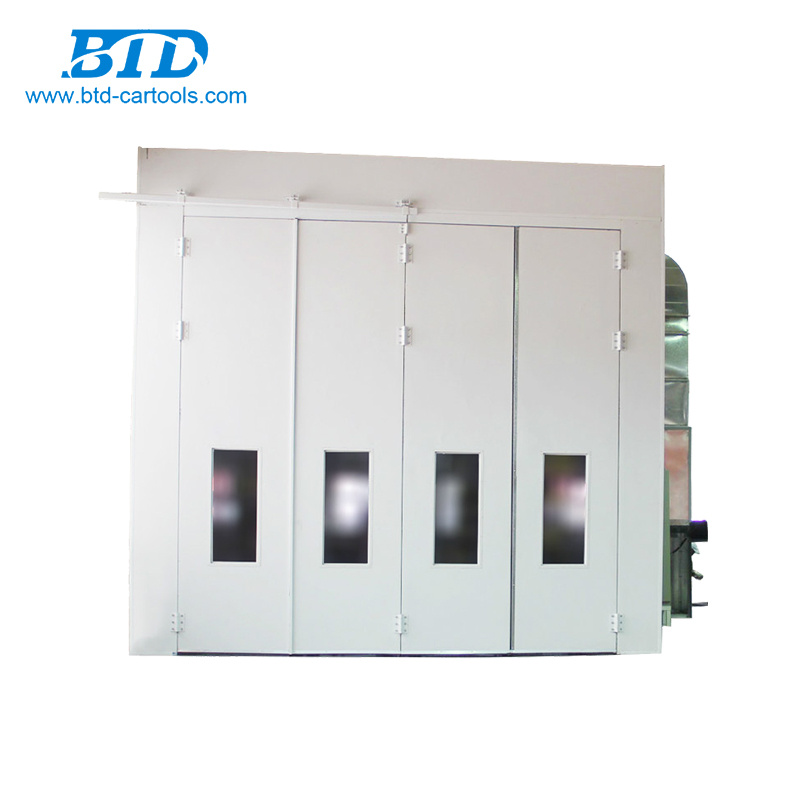

3-Folded Entrance
Door With
Safety Glass Window
4300×4800 mm (B×H)
- Operators Door
With Safety ,
Glass Window
800×2000  mm (B×H)   2PCS

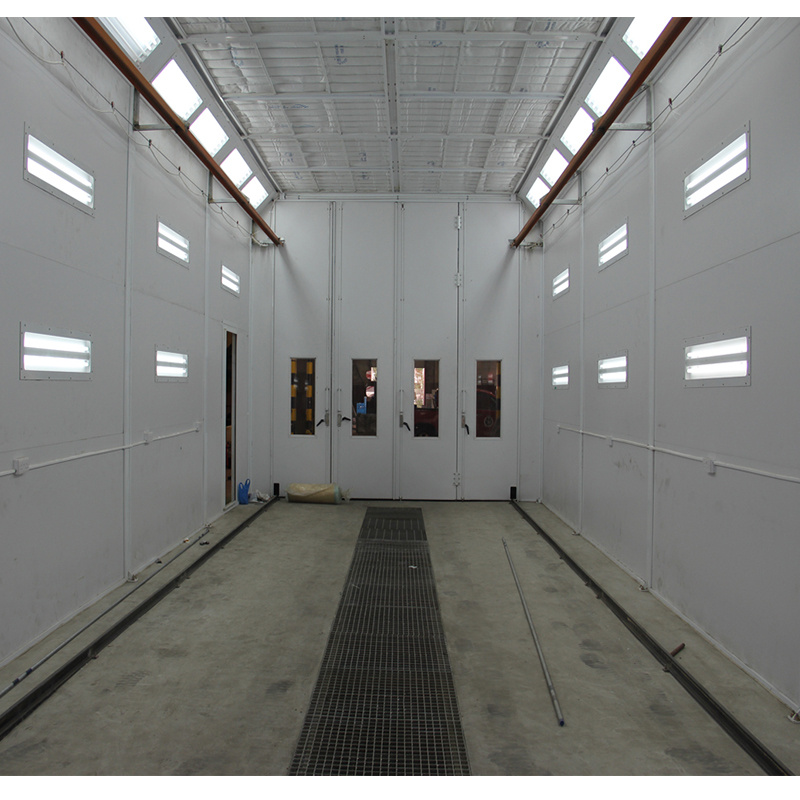

Lighting
- Ceiling Lightings16 Units, each 4×36 W,
Total 2304W
- Side Lightings24 Units, each 2×36 W,
Total 1728W
- Brightness>1000 Lux, IP54 Grade
Filtration
- Pre filtersFiberglass, Paint-Stop-Filters
Plate type duel filters
- Ceiling FiltersEU5 Fine Filters, 6 Units
- Floor FiltersFiberglass, Paint-Stop-Filters
Ventilation System
-Direct Drive
Motor (Fresh Air)
2×7.5KW,970RPM,380V,50HZ  motor
certification CE
- Direct Drive
Motor (Exhaust Air)
2×7.5KW,970RPM,380V,50HZ Domestic
motor certification CE
- Fan Capacity50.000m³/h
- Air Flow Speed+/- 0.25 m/s in an empty booth
Heating System
- Heating ExchangerStainless Steel 1Gr18Ni9Ti
- Heating
Exchange Capacity
2×232KW(260.000cal/H) RIELLO
- Max. Drying Temperature80 °C
- Heating time10-15 min (from 20 to 60°)
by Drying Phase
- Heating Type
(on option)
Diesel / Gas Burner
Control Board
-Control systemStander control
Delta  Depressurization
start system
EN60204-1-2006
-FunctionSpraying ,baking, warming
spray paint, emergency
stop switch
-PLCyes
-Inverter controlOn option
-Import elementmaster device import element
-Overpressure Manometeryes
- Alarm equipmentyes



BTD Car Tools Co., Ltd is a professional manufacturer for car spraying, baking and largest automobile spraying/baking booth in South China since Year 2002. With strong R&D experiences, advanced technology and guarantee quality, BTD brand spray booth is getting more and more popular all over the world.

BTD target is to be a leading enterprising manufacturer for high-end Spray Paint Booth and painting lines, BTD enjoys good reputation in Europe and hold the most market share for high-end Spray Paint Booth. All of which are compliant to CE directives. We has passed the ISO9001: 2000 quality system certification and ensures that every department follows the articles of the system.

BTD has many agency and establish many showroom around the world, customers can easy find our products in your countryif we have agency and showroom there. Meanwhile, we welcomes partners who are interested to be our agency.






FQA:
Q1: Are you Manufacturer or Trading company?

A: We are a professional manufacturer with our own export department.

Q2: Where is your company ocated? How can I visit there?

A: Our company is located in Guangzhou. All clients, from home and abroad, are warmly welcomed to visit us.

Q3: How about the quality of the products?
A: With the advanced machines, strong and professional R&D team and material
Sources, our products are excellent in performance and craftsmanship.

Q4: What's the sort of heating types?
A: There are diesel, gas and electricity(infrared lamp) heating.

Q5: Does the BTD spray booth with the European design?
A: Our products are welcomed in Europe. All the spray booths are according to European standard with CE certificate.

Q6: What are range of the voltage and power for BTD spray booth when operating?
A: The standard voltage and power for our products is 220V 50Hz 1pH for lights (Residential voltage), 380V 50Hz 3pH for motors (Industrial voltage), we could modify the voltage to suitable for customer's local voltage.

Q7: Can we customize our product?

A: Absolutely yes, BTD has the professional team with 10 years of design experience. Customized material and standard are acceptable. We can provide different standards according to your market and favor.


Our Service:

We provide a design service, with advice on all aspects of all the build, including airflow, ducting, filters, lighting, environmental issues and health and safety issues.

If you wish to discuss any aspect of your project,

Please feel free to contact us.
BTD Car Tools Co., Ltd is a professional manufacturer for car spraying, baking, painting and largest automobile spraying/baking/painting booth in South China since Year 2002. With strong R&D experiences, advanced technology and guarantee quality, BTD brand spray paint booth is getting more and more popular all over the world.

BTD company target is to be a leading enterprising manufacturer for high-end Spray Paint Booth and painting lines, BTD enjoys good reputation in Europe and hold the most market share for high-end Spray Paint Booth. All of which are compliant to CE directives. We has passed the ISO9001: 2000 quality system certification and ensures that every department follows the articles of the system.

BTD company also produces many other products, such as preparation room, retractable room, mixing room, air compressor, car lift and car bench. A variety of high-quality products meet customers' different needs.

BTD company has many agency and establish many showroom around the world, customers can easy find our products in your countryif we have agency and showroom there. Meanwhile, we welcomes partners who are interested to be our agency.
