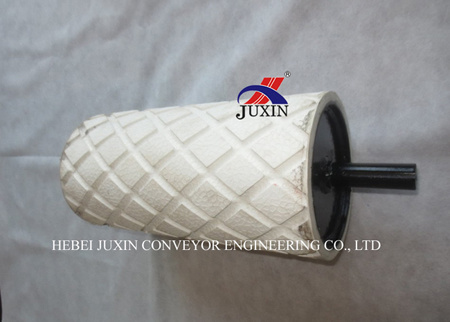

Belt Conveyor Take up Pulley with Rubber Lagging

Belt Conveyor Take up Pulley with Rubber Lagging
Price: US $ 10/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union

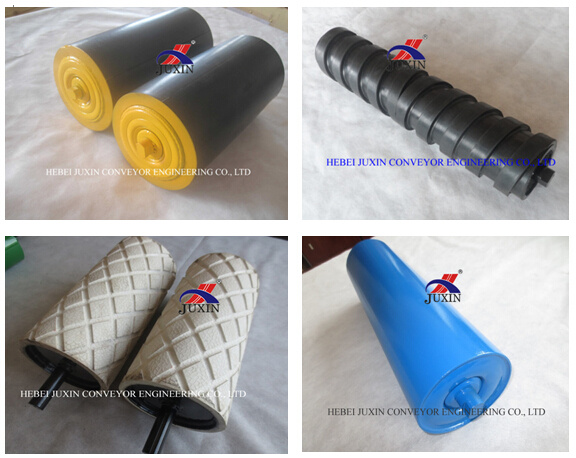

Pulley

Drive pulley, tail pulley, take up pulley, snub pulley, bend pulley
Our conveyor pulley is manufactured according to customer's specifications and requirements. The designing strength and features are strictly complied with international standard. All designing are done by our latest CAD software.
Diameter: D=250mm-1800mm
Belt width: BW=300mm-2200mm
The end caps are made out of casting material with high strength
The shell is rolled by steel plate with high precision
Shrinkage sleeve connection to achieve convenient assembly and disassembly
TypeBelt width (mm)Standard Diameter(mm)Length (mm)
Drive Pulley500500Length of the pulley depends on the belt width of the conveyor
650500, 630
800500, 630, 800
1000630, 800, 1000
1200630, 800, 1000
1400800, 1000
Turnaround Pulley500250, 315, 400, 500
650250, 315, 400, 500
800250, 315, 400, 500, 630, 800, 1000
1000250, 315, 400, 500, 630, 800, 1000
1200250, 315, 400, 500, 630, 800, 1000
1400250, 315, 400, 500, 630, 800, 1000

Prod Model: JX-9
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Dia: 250mm-1400mm
Length: Depend on The Belt Width
Tube: S235jr
Shaft: C45
Executive Standard: GB, ISO, Cema, DIN, JIS, etc, etc
Life Time: More Than 50000 Hours
Material: Steel
Certification: GB
Automatic: Automatic
Standard: Standard
Condition: New
Type: Belt Conveyor
We are a modern enterprise specializing in producing complete sets of belt conveyors and its parts, such as idler rollers, pulley, brackets and belt. After more than 30 years of development and growth, our company congregates a group of excellent professional with specification, efficiency, and juvenility and also set up CAD design center, production and processing center, quality testing center and sales service center in order to develop high, precise and cuspidate products.

In order to cater to the demand of enterprise development and meet the market competitive challenge, our company from design, manufacture, marketing, testing to after-sales service, has established a strict quality controlling system and improves, updates, and perfects the production plant, producing equipment, and quality testing equipment continuously. And we have passed ISO9001: 2000 quality system certificate, CE certificate and safety certificate of approval for coal mining products (coal safety MA certificate) so that we can provide high quality products and best service for the clients.

At present our product has been exported to Europe, Asia, Africa, Australia and the America, and obtains their trust and worldwide fame! Through years of efforts, we enjoyed good reputation for our advanced technology, excellent products and favorable service. We have been awarded honor of "abiding the contract and keeping faith" and "model pace-setter" and so on by the department administering industry and commerce.
