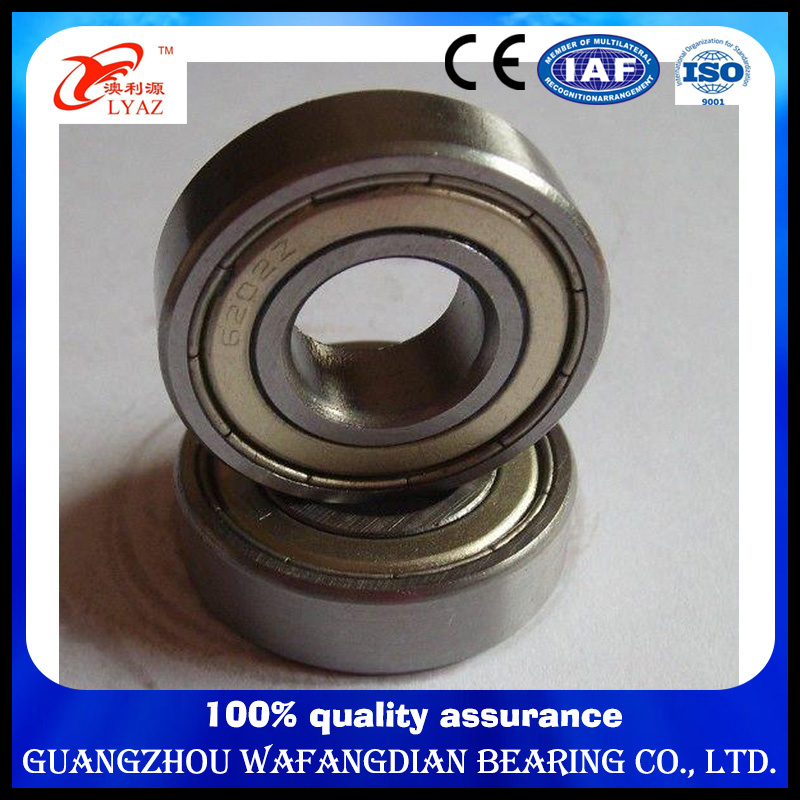

Bearing Manufacturer deep groove ball bearing 6203 40 X 17 X 12 mm with Electric Motors
Product Description
DEEP GROOVE BALL BEARING APPLICATION
Electric Motors
Quiet operation realized by proper clearance, recommend fitting practice. Lower noise lubricants. Suitable for all speed ranges applications requiring low noise.Automotive Alternators
Longer life in vibrations and high temperature environments.Automotive Starters
High reliability in periodic use of vibrations and high temperature environments.Compressors
Long life pump rotors which compress air in low temperature and low viscosity lubrication environments.Blowers
Quiet and stable operation on fan rotors at high speed, in environments with vibration and high temperaturesTransmissions
Compact design for light weight to achieve high performance.
GROOVE BALL BEARING 6203 DESCRITION
Strusture | Deep groove ball |
Type | ball bearing |
Bore size | 17mm |
Outside Diameter | 40mm |
Weight | 0.067kg |
Breadth | 12mm |
Model number | 6203 ZZ , 6203 2RS , 6203 2LS , 6203 NR , 6203 N , 6203 DDU , 6203 LLU |
Precision | P0 , P6 , P5 , P4 , P2 , ABEC-1 , ABEC-3 , ABEC-5 , ABEC-7 |
Seals type | ZZ, 2RS , OPEN |
Clearance | C0,C2,C3,C4,C5 |
Vabration | Z1, Z2, Z3, Z4 |
Number row | single row , double row |
Application | Electric Motors, Automotive Alternators , Automotive Starters , Compressors , Blowers , Transmissions |
We also can supply another item , as below:
Model | Specification(d*D*B) | Weight(kg) |
16005 | 25*47*8 | 0.059 |
6005 | 25*47*12 | 0.079 |
6205 | 25*52*15 | 0.129 |
6305 | 25*62*17 | 0.235 |
6405 | 25*80*21 | 0.530 |
60/28 | 28*52*12 | 0.175 |
63/28 | 28*68*18 | 0.287 |
6706 | 30*3*4 | 0.008 |
6906 | 30*47*9 | 0.052 |
6006 | 30*55*13 | 0.116 |
6306 | 30*72*19 | 0.345 |
60/32 | 32*65*17 | 0.122 |
62/32 | 32*65*17 | 0.225 |
6807 | 35*47*7 | 0.027 |
6907 | 35*55*10 | 0.075 |
6308 | 40*90*23 | 0.636 |
6808 | 40*52*7 | 0.031 |
6008 | 40*68*15 | 0.190 |
6208 | 40*80*18 | 0.366 |
6408 | 40*110*27 | 1.230 |
6309 | 45*100*25 | 0.829 |
6009 | 45*75*16 | 0.241 |
6309 | 45*100*25 | 0.829 |
6810 | 50*65*7 | 0.050 |
6010 | 50*80*16 | 0.261 |
6210 | 50*90*20 | 0.459 |
6811 | 55*72*9 | 0.081 |
6911 | 55*80*13 | 0.189 |
16011 | 55*90*11 | 0.257 |
... | ... | ... |
Longer Life
Adopted NACHI original seal design to prevent contamination and grease leakage.
Contains special grease for wider temperature ranges and longer life.Smooth and Quiet Operation
The precision level of our bearing components has been enhanced to ensure smooth and quiet operation.Low Torque
Lower rotating torque by improving seal lips.
•Materials of Bearings
Materials for bearing rings and parts largely determine the bearing's performance and life. LYAZ Bearings puts more efforts to select materials for bearing ring and part suppliers in a rigorous manner.
Materials and components of bearing rings for LYAZ Bearings are provided by the world's top suppliers,especially for serving bearing manufacturers, fundamentally solving the issue that our bearings lag behind imported bearings in terms of materials for a long time.
LYAZ Bearings boasts a set of strict incoming goods inspection system. Before being put into storage, every batch of steels and parts is under systemic inspection, including analysis of material composition, metallographic analysis, accuracy check, assembly test, etc.
•Materials for Bearing Ring and Roller Body
Bearing ring and roller body are mainly made of high-Cr bearing steel. Listed below are compositions of material for bearing ring and roller body.
Chemical Composition(%) |
NO. | C | Mn | Si | Cr | S | P | Ni | Cu | HB |
< |
GCr15 DIN 100 GCr6 JIS UJ2 AISI52100 SKF3 | 0.95~1.05 | 0.20~0.4 | 0.15~0.35 | 1.30~1.65 | 0.02 | 0.027 | 0.3 | 0.25 | 170~207 |
Material for bearing ring and roller body mainly consists of high C-Cr bearing steel.
•Material of cages
Material of cages need good wear resistance, stable size and metal strength. Therefore, operation environment should be mainly considered in selection of material of cages.
Cold-rolled Steel Cage
These light cages hold a high strength with reduced friction and wear in an effective way after surface treatment. The following table covers compositions of material for cold-rolled steel sheet.
No. | Chemical Composition% |
JISG 3141 SPCC | C | Si | Mn | P | S | Ni | Cr |
<0.12 | - | <0.5 | <0.04 | 0.045 | - | - |
Brass Cage
Brass cage is adopted in small and medium bearings. However, brass cage is not suitable for compressors with ammonia cooling due to potential seasonal cracking of brass. It is recommended to replace it with iron cage.
Nylon cage
According to the type and usage of bearings, nylon cages are widely adopted, but they are inappropriate for environments where the temperature is above 120ºC or below 40 ºC. Most of cast molding cages adopt nylon PA66 material, with or without glass fiber reinforcement whose advantage is a good combination of strength and elasticity.
•Materials for Dust Shield and Sealed ring
Material for dust shield
LYAZ Bearings use cold-rolled tin plate as the standard mateiral for dust shields, but also use stainless steel of AISI-300 specification sometimes.
Material for seal ring
Seal rings are mainly made of NBR. For high temperature, fluoro rubbers and silicon rubbers are widely used as well.
