Bc1-1623 Special Roller Crankshaft Main Bearing Bc1-1442b

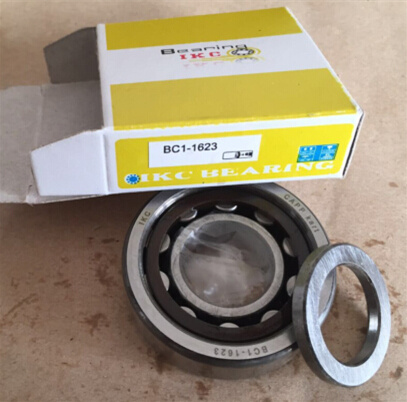

Name: Bc1-1623 Special Roller Crankshaft Main Bearing Bc1-1442b
Brand: ibuyautoparts.com
SKU: 778603135
Availability: InStock
Rating: 4.4 (42 reviews)

Price:	US $ 5-10/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

IKC SKF BC1 roller bearings
Green Flag Karting now offers SKF BC1 roller bearings for all applications that require 6205 bearings.
This bearing is a roller style main bearing for most KZ engines. It will last much longer, allow more RPM and add power to your engine.
Karting innovation by SKF Racing: a special roller bearing derived from the bearings tested in GP engines, specifically designed as a crankshaft main bearing for kart engines. Infact this bearing is a direct replacement for the 6205, C4 class bearings used in most shifter 125 cc engines available on the market (dimensions 25 x 52 x 15 mm), having mounting tolerances designed in such a way that once installed it has the same radial play.
The BC1 bearing is not a stock roller 6205 bearing but a special unit that, thanks to a special design of the rollers, races and innovative split inner ring, is specifically made for the kind of working conditions that happen in a modern racing 2 stroke engine. There are multiple advantages resulting from this design, including:
at least 2 times more load carrying capacity;
bearing life extended from 2 up to 3 times respect the ball bearings normally used;
higher stiffness;
reduced friction;
and in some cases the consequent better mechanical efficiency leads to a measurable performance improvement. If you want to know more about the BC1 bearing you can the official SKF Racing brochure in English. SKF part number: BC1-1442B
Model: F196.6205S
Manufactured by: SKF Racing

Designations	Old spec	Principal Dimensions (mm)				Speed ratings (rpm)		Weight(kg)
		Principal Dimensions (mm)				Speed ratings (rpm)
		d	D	B	Fw	Grease	Oil
		d	D	B	Fw	Grease	Oil
NU 1005	32105	25	47	12	30.5	11000	15000	0.1
NU 1006	32106	30	55	13	36.5	9500	12000	0.12
NU 1007	32107	35	62	14	42	8500	11000	0.16
NU 1008	32108	40	68	15	47	7500	9500	0.22
NU 1009	32109	45	75	16	52.5	6500	8500	0.26
NU 1010	32110	50	80	17	57.5	6300	8000	0.3
NU 1011	32111	55	90	18	64.5	5600	7000	0.45
NU 1012	32112	60	95	18	69.5	5300	6700	0.48
NU 1013	32113	65	100	18	74.5	4800	6000	0.51
NU 1014	32114	70	110	20	80	4800	6000	0.71
NU 1015	32115	75	115	20	85	4300	5600	0.74

NU 202 E	32202 E	15	35	11	19.3	18000	22000	0.047
NU 202	32202	15	35	11	19.3	15000	19000	0.047
NU 203 E	32203 E	17	40	12	22.1	16000	19000	0.068
NU 203	32203	17	40	12	22.9	14000	18000	0.068
NU 204 E	32204 E	20	47	14	26.5	13000	16000	0.11
NU 204	32204	20	47	14	27	13000	16000	0.11
NU 205 E	32205 E	25	52	15	31.5	11000	14000	0.13
NU 205	32205	25	52	15	32	11000	14000	0.13
NU 206 E	32206 E	30	62	16	37.5	9500	12000	0.2
NU 206	32206	30	62	16	38.5	9500	12000	0.2
NU 207 E	32207 E	35	72	17	44	8500	10000	0.3
NU 207	32207	35	72	17	43.8	8500	10000	0.3
NU 208 E	32208 E	40	80	18	49.5	7500	9000	0.37
NU 208	32208	40	80	18	50	7500	9000	0.37
NU 209 E	32209 E	45	85	19	54.5	6700	8000	0.43
NU 209	32209	45	85	19	55	6700	8000	0.43
NU 210 E	32210 E	50	90	20	59.5	6300	7500	0.48
NU 210	33210	50	90	20	60.4	6300	7500	0.48
NU 211 E	33211 E	55	100	21	66	6000	7000	0.66
NU 211	33211	55	100	21	66.5	6000	7000	0.66
NU 212E	33212 E	60	110	22	72	5300	6300	0.81
NU 212	33212	60	110	22	73	5300	6300	0.81
NU 213 E	33213 E	65	120	23	78.5	4800	5600	1.05

Designations	Old spec	Principal Dimensions (mm)				Speed ratings (rpm)		Weight(kg)
		Principal Dimensions (mm)				Speed ratings (rpm)
		d	D	B	Fw	Grease	Oil
		d	D	B	Fw	Grease	Oil
NU 213	33213	65	120	23	79.5	4800	5600	1.05
NU 214 E	33214 E	70	125	24	83.5	1500	5300	1.15
NU 214	33214	70	125	24	84.5	4500	5300	1.15
NU 215 E	33215 E	75	130	25	88.5	4500	5300	1.25
NU 215	33215	75	130	25	88.5	4500	5300	1.25
NU 216 E	33216 E	80	140	26	95.3	4000	4800	1.5
NU 216	33216	80	140	26	95	4000	4800	1.5

NU 2203 E	32503 E	17	40	16	22.1	16000	19000	0.092
NU 2204 E	32504 E	20	47	18	26.5	13000	16000	0.14
NU 2204	32504	20	47	18	27	13000	16000	0.14
NU 2205 E	32505 E	25	52	18	31.5	11000	14000	0.16
NU 2205	32505	25	52	18	32	11000	14000	0.16
NU 2206 E	32506 E	30	62	20	37.5	9500	12000	0.26
NU 2206	32506	30	62	20	38.5	9500	12000	0.26
NU 2207 E	32507 E	35	72	23	44	8500	10000	0.4
NU 2207	32507	35	72	23	43.8	8500	10000	0.4
NU 2208 E	32508 E	40	80	23	49.5	7500	9000	0.49
NU 2208	32508	40	80	23	50	7500	9000	0.49
NU 2209 E	32509 E	45	85	23	54.5	6700	8000	0.52
NU 2209	32509	45	85	33	55	6700	8000	0.52
NU 2210 E	32510 E	50	90	23	59.5	6300	7500	0.56
NU 2210	32510	50	90	23	60.4	6300	7500	0.56
NU 2211 E	32511 E	55	100	25	66	6000	7000	0.79
NU 2211	32511	55	100	25	66.5	6000	7000	0.79
NU 2212 E	32512 E	60	110	28	72	5300	6300	1.1
NU 2212	32512	60	110	28	73	5300	6300	1.1
NU 2213 E	32513 E	65	120	31	78.5	4800	5600	1.4
NU 2213	32513	65	120	31	79.5	4800	5600	1.4
NU 2214 E	32514 E	70	125	31	83.5	4500	5300	1.5
NU 2214	32514	70	125	31	84.5	4500	5300	1.5
NU 2215 E	32515 E	75	130	31	88.5	4500	5300	1.6
NU 2215	32515	75	130	31	88.5	4500	5300	1.6
NU 2216 E	32516 E	80	140	33	95.3	4000	4800	2
NU 2216	32516	80	140	33	95.3	4000	4800	2



Bore Size: 15-80mm
Designations	Old spec	Principal Dimensions (mm)				Speed ratings (rpm)		Weight(kg)
		Principal Dimensions (mm)				Speed ratings (rpm)
		d	D	B	Fw	Grease	Oil
		d	D	B	Fw	Grease	Oil
NU 303 E	32303 E	17	47	14	24.2	14000	17000	0.12
NU 304 E	32304 E	20	52	15	27.5	12000	15000	0.15
NU 304	32304	20	52	15	28.5	12000	15000	0.15
NU 305 E	32305 E	25	62	17	34	9500	12000	0.24
NU 305	32305	25	62	17	35	9500	12000	0.24
NU 306 E	32306 E	30	72	19	40.5	9000	11000	0.36
NU 306	32306	30	72	19	42	9000	11000	0.36
NU 307 E	32307 E	35	80	21	46.2	8000	9500	0.48
NU 307	32307	35	80	21	46.2	8000	9500	0.48
NU 308 E	32308 E	40	90	23	52	6700	8000	0.65
NU 308	32308	40	90	23	53.5	6700	8000	0.65
NU 309 E	32309 E	45	100	25	58.5	6300	7500	0.9
NU 309	32309	45	100	25	58.5	6300	7500	0.9
NU 310 E	32310 E	50	110	27	65	5000	6000	1.15
NU 310	32310	50	110	27	65	5000	6000	1.15
NU 311 E	32311 E	55	120	29	70.5	4800	5600	1.45
NU 311	32311	55	120	29	70.5	4800	5600	1.45
NU 312 E	32312 E	60	130	31	77	4300	5000	1.8
NU 312	32312	60	130	31	77	4300	5000	1.8
NU 313 E	32313 E	65	140	33	82.5	4000	4800	2.25
NU 313	32313	65	140	33	83.5	4000	4800	2.25
NU 2214 E	32314 E	70	150	35	89	3600	4300	2.75
NU 2214	32314	70	150	35	90	3600	4300	2.75
NU 315 E	32315 E	75	160	37	95	3400	4000	3.3
NU 315	32315	75	160	37	95.5	3400	4000	3.3
NU 316 E	32316 E	80	170	39	101	3200	3800	3.95
NU 316	32316	80	170	39	108	3200	3800	3.95

NU 2304 E	32604 E	20	52	21	27.5	11000	14000	0.21
NU 2304	32604	20	52	21	28.5	11000	14000	0.21
NU 2305 E	32605 E	25	62	24	34	9000	11000	0.35
NU 2305	32605	25	62	24	35	9000	11000	0.35
NU 2306 E	32606 E	30	72	27	40.5	8000	9500	0.53
NU 2306	32606	30	72	27	42	8000	9500	0.53
NU 2307 E	32607 E	35	80	31	46.2	7000	8500	0.72



Bore Size: 15-80mm
Designations	Old spec	Principal Dimensions (mm)				Speed ratings (rpm)		Weight(kg)
		Principal Dimensions (mm)				Speed ratings (rpm)
		d	D	B	Fw	Grease	Oil
		d	D	B	Fw	Grease	Oil
NU 2307	32607	35	80	31	46.2	7000	8500	0.72
NU 2308 E	32608 E	40	90	33	52	6300	7500	0.94
NU 2308	32608	40	90	33	53.5	6300	7500	0.94
NU 2309 E	32609 E	45	100	35	58.5	5600	6700	1.3
NU 2309	32609	45	100	35	58.5	5600	6700	1.3
NU 2310 E	32610 E	50	110	40	65	5000	6000	1.7
NU 2310	32610	50	110	40	65	5000	6000	1.7
NU 2311 E	32611 E	55	120	43	70.5	4800	5600	2.2
NU 2311	32611	55	120	43	70.5	4800	5600	2.2
NU 2312 E	32612 E	60	130	46	77	4300	5000	2.75
NU 2312	32612	60	130	46	77	4300	5000	2.75
NU 2313 E	32613 E	65	140	48	82.5	4000	4800	3.3
NU 2313	32613	65	140	48	82.5	4000	4800	3.3
NU 2314 E	32614 E	70	150	51	89	3600	4300	4
NU 2314	32614	70	150	51	90	3600	4300	4
NU 2315 E	32615 E	75	160	55	95	3400	4000	4.9
NU 2315	32615	75	160	55	95.5	3400	4000	4.9
NU 2316 E	32616 E	80	170	58	101	3200	3800	5.85
NU 2316	32616	80	170	58	103	3200	3800	5.85

NU 406	32406	30	90	23	45	7500	9000	0.75
NU 407	32407	35	100	25	53	6700	8000	1
NU 408	32408	40	110	27	58	6000	7000	1.3
NU 409	32409	45	120	29	64.5	5600	6700	1.65
NU 410	32410	50	130	31	70.8	5000	6000	2
NU 411	32411	55	140	33	77.2	4800	5600	2.5
NU 412	32412	60	150	35	83	4300	5000	3
NU 413	32413	65	160	37	89.5	4000	4800	3.6
NU 414	32414	70	170	42	100	3600	4300	5.25
NU 415	32415	75	180	45	104.5	3400	4000	6.25
NU 416	32416	80	190	48	110	3200	3800	7.3

NJ 202 E	42202 E	15	35	11	19.3
NJ 202	42202	15	35	11	19.3
NJ 203 E	42203 E	17	40	12	22.1


Bore Size: 15-80mm
Designations	Old spec	Principal Dimensions (mm)				Speed ratings (rpm)		Weight(kg)
		Principal Dimensions (mm)				Speed ratings (rpm)
		d	D	B	Fw	Grease	Oil
		d	D	B	Fw	Grease	Oil
NJ 203	42203	17	40	12	22.9	16000	19000	0.07
NJ 204 E	42204 E	20	47	14	26.5	13000	16000	0.11
NJ 204	42204	20	47	14	27	13000	16000	0.11
NJ 205 E	42205 E	25	52	15	31.5	11000	14000	0.14
NJ 205	42205	25	52	15	32	11000	14000	0.14
NJ 206 E	42206 E	30	62	16	37.5	9500	12000	0.21
NJ 206	42206	30	62	16	38.5	9500	12000	0.21
NJ 207 E	42207 E	35	72	17	44	8500	10000	0.31
NJ 207	42207	35	72	17	43.8	8500	10000	0.31
NJ 208 E	42208 E	40	80	18	49.5	7500	9000	0.38
NJ 208	42208	40	80	18	50	7500	9000	0.38
NJ 209 E	42209 E	45	85	19	54.5	6700	8000	0.44
NJ 209	42209	45	85	19	55	6700	8000	0.44
NJ 210 E	42210 E	50	90	20	59.5	6300	7500	0.49
NJ 210	42210	50	90	20	60.4	6300	7500	0.49
NJ 211 E	42211 E	55	100	21	66	6000	7000	0.67
NJ 211	42211	55	100	21	66.5	6000	7000	0.67
NJ 212 E	42212 E	60	110	22	72	5300	6300	0.83
NJ 212	42212	60	110	22	73	5300	6300	0.83
NJ 213 E	42213 E	65	120	23	78.5	4800	5600	1.05
NJ 213	42213	65	120	23	79.5	4800	5600	1.05
NJ 214 E	42214 E	70	125	24	83.5	4500	5300	1.15
NJ 214	42214	70	125	24	84.5	4500	5300	1.15
NJ 215 E	42215 E	75	130	25	88.5	4500	4800	1.3
NJ 215	42215	75	130	25	88.5	4500	4800	1.3
NJ 216 E	42216 E	80	140	26	95.3	4000	4500	1.55
NJ 216	42216	80	140	26	95	4000	4500	1.55

NJ 2203 E	42503 E	17	40	16	22.1	16000	19000	0.095
NJ 2203	42503	17	40	16	22.1	16000	19000	0.095
NJ 2204 E	42504 E	20	47	18	26.5	13000	16000	0.14
NJ 2204	42504	20	47	18	27	13000	16000	0.14
NJ 2205 E	42505 E	25	52	18	31.5	11000	14000	0.16
NJ 2205	42505	25	52	18	32	11000	14000	0.16
NJ 2206 E	42506 E	30	62	20	37.5	9500	12000	0.27



Bore Size: 15-80mm
Designations	Old spec	Principal Dimensions (mm)				Speed ratings (rpm)		Weight(kg)
		Principal Dimensions (mm)				Speed ratings (rpm)
		d	D	B	Fw	Grease	Oil
		d	D	B	Fw	Grease	Oil
NJ 2206	42506	30	62	20	38.5	9500	12000	0.27
NJ 2207 E	42507 E	35	72	23	44	8500	10000	0.41
NJ 2207	42507	35	72	23	43.8	8500	10000	0.41
NJ 2208 E	42508 E	40	80	23	49.5	7500	9000	0.5
NJ 2208	42508	40	80	23	50	7500	9000	0.5
NJ 2209 E	42509 E	45	85	23	54.5	6700	8000	0.54
NJ 2209	42509	45	85	23	55	6700	8000	0.54
NJ 2210 E	42510 E	50	90	23	59.5	6300	7500	0.58
NJ 2210	42510	50	90	23	60.4	6300	7500	0.58
NJ 2211 E	42511 E	55	100	25	66	6000	7000	0.81
NJ 2211	42511	55	100	25	66.5	6000	7000	0.81
NJ 2212 E	42512 E	60	110	28	72	5300	6300	1.1
NJ 2212	42512	60	110	28	73	5300	6300	1.1
NJ 2213 E	42513 E	65	120	31	78.5	4800	5600	1.45
NJ 2213	42513	65	120	31	79.5	4800	5600	1.45
NJ 2214 E	42514 E	70	125	31	83.5	4500	5300	1.55
NJ 2214	42514	70	125	31	84.5	4500	5300	1.55
NJ 2215 E	42515 E	75	130	31	88.5	4500	5300	1.6
NJ 2215	42515	75	130	31	88.5	4500	5300	1.6
NJ 2216 E	42516 E	80	140	33	95.3	4000	4800	2.05
NJ 2216	42516	80	140	33	95	4000	4800	2.05

NJ 303 E	42303 E	17	47	14	24.2	14000	17000	0.12
NJ 303	423033	17	52	14	24.2	14000	17000	0.12
NJ 304 E	42304 E	20	52	15	27.5	12000	15000	0.15
NJ 304	42304	20	52	15	28.5	12000	15000	0.15
NJ 305 E	42305 E	25	62	17	34	9500	12000	0.25
NJ 305	42305	25	62	17	35	9500	12000	0.25
NJ 306 E	42306 E	30	72	19	40.5	900	11000	0.37
NJ 306	42306	30	72	19	42	900	11000	0.37
NJ 307 E	42307 E	35	80	21	46.2	8000	9500	0.49
NJ 307	42307	35	80	21	46.2	8000	9500	0.49
NJ 308 E	42308 E	40	90	23	52	6700	8000	0.67
NJ 308	42308	40	90	23	53.5	6700	8000	0.67
NJ 309 E	42309 E	45	100	25	58.5	6300	7500	0.92



Bore Size: 15-80mm
Designations	Old spec	Principal Dimensions (mm)				Speed ratings (rpm)		Weight(kg)
		Principal Dimensions (mm)				Speed ratings (rpm)
		d	D	B	Fw	Grease	Oil
		d	D	B	Fw	Grease	Oil
NJ309	42309	45	100	25	58.5	6300	7500	0.92
NJ 310 E	42310 E	50	110	27	65	5000	6000	1.15
NJ 310	42310	50	110	27	65	5000	6000	1.15
NJ 311 E	42311 E	55	120	29	70.5	4800	5600	1.5
NJ 311	42311	55	120	29	70.5	4800	5600	1.5
NJ 312 E	42312 E	60	130	31	77	4300	5000	1.9
NJ 312	42312	60	130	31	77	4300	5000	1.9
NJ 313 E	42313 E	65	140	33	82.5	4000	4800	2.3
NJ 313	42313	65	140	33	83.5	4000	4800	2.3
NJ 314 E	42314 E	70	150	35	89	3600	4300	2.8
NJ 314	42314	70	150	35	90	3600	4300	2.8
NJ 315 E	42315 E	75	160	37	95	3400	4000	3.35
NJ 315	42315	75	160	37	95.5	3400	4000	3.35
NJ 316 E	42316 E	80	170	39	101	3200	3800	4
NJ 316	42316	80	170	39	103	3200	3800	4

NJ 2304 E	42604 E	20	52	21	27.5	11000	14000	0.22
NJ 2304	42604	20	52	21	28.5	11000	14000	0.22
NJ 2305 E	42605 E	25	62	24	34	9000	11000	0.35
NJ 2305	42605	25	62	24	35	9000	11000	0.35
NJ 2306 E	42606 E	30	72	27	40.5	8000	9500	0.55
NJ 2306	42606	30	72	27	42	8000	9500	0.55
NJ 2307 E	42607 E	35	80	31	46.2	7000	8500	0.73
NJ 2307	42607	35	80	31	46.2	7000	8500	0.73
NJ 2308 E	42608 E	40	90	33	52	6300	7500	0.96
NJ 2308	42608	40	90	33	53.5	6300	7500	0.96
NJ 2309 E	42609 E	45	100	36	58.5	5600	6700	1.3
NJ 2309	42609	45	100	36	58.5	5600	6700	1.3
NJ 2310 E	42610 E	50	110	40	65	5000	6000	1.75
NJ 2310	42610	50	110	40	65	5000	6000	1.75
NJ 2311 E	42611 E	55	120	43	70.5	4800	5600	2.25
NJ 2311	42611	55	120	43	70.5	4800	5600	2.25
NJ 2312 E	42612 E	60	130	46	77	4300	5000	2.8
NJ 2312	42612	60	130	46	77	4300	5000	2.8
NJ 2313 E	42613 E	65	140	48	82.5	4000	4800	3.35
NJ 2313	42613	65	140	48	83.5	4000	4800	3.35



Bore Size: 15-80mm
Designations	Old spec	Principal Dimensions (mm)				Speed ratings (rpm)		Weight(kg)
		Principal Dimensions (mm)				Speed ratings (rpm)
		d	D	B	Fw	Grease	Oil
		d	D	B	Fw	Grease	Oil
NJ 2314 E	42614 E	70	150	51	89	3600	4300	4.05
NJ 2314	42614	70	150	51	90	3600	4300	4.05
NJ 2315 E	42615 E	75	160	55	95	3400	4000	5
NJ 2315	42615	75	160	55	95.5	3400	4000	5
NJ 2316 E	42616 E	80	170	58	101	3200	3800	5.95
NJ 2316	42616	80	170	58	103	3200	3800	5.95

NJ 406	42406	30	90	23	45	7500	9000	0.77
NJ 407	42407	35	100	25	53	6700	8000	1.05
NJ 408	42408	40	110	27	58	6000	7000	1.3
NJ 409	42409	45	120	29	64.5	5600	6700	1.65
NJ 410	42410	50	130	31	70.8	5000	6000	2.05
NJ 411	42411	55	140	33	77.2	4800	5600	2.6
NJ 412	42412	60	150	35	83	4300	5000	3.1
NJ 413	42413	65	160	37	89.5	4000	4800	3.65
NJ 414	42414	70	180	42	100	3600	4300	5.35
NJ 415	42415	75	190	45	104.5	3400	4000	6.4
NJ 416	42416	80	200	48	110	3200	3800	7.45

NUP203 E		17	40	12	22.1	16000	19000	0.073
NUP203	92203	17	40	12	22.9	14000	18000	0.073
NUP204 E		20	47	14	26.5	13000	16000	0.12
NUP204		20	47	14	27	12000	16000	0.117
NUP205 E	92205 E	25	52	15	31.5	11000	14000	0.14
NUP205	92205	25	52	15	32	11000	14000	0.14
NUP206 E	92206 E	30	62	16	37.5	9500	12000	0.22
NUP206	92206	30	62	16	38.5	8500	11000	0.214
NUP207 E	92207 E	35	72	17	44	8500	10000	0.31
NUP207	92207	35	72	17	43.8	7500	9500	0.311
NUP208 E	92208 E	40	80	18	49.5	7500	9000	0.4
NUP208	92208	40	80	18	50	7000	9000	0.394
NUP209 E	92209 E	45	85	19	54.5	6700	8000	0.45
NUP209	92209	45	85	19	55	6300	8000	0.45
NUP210 E	92210 E	50	90	20	59.5	6300	7500	0.51
NUP210	92210	50	90	20	60.4	6000	7500	0.505



Bore Size: 15-80mm
Designations	Old spec	Principal Dimensions (mm)				Speed ratings (rpm)		Weight(kg)
		Principal Dimensions (mm)				Speed ratings (rpm)
		d	D	B	Fw	Grease	Oil
		d	D	B	Fw	Grease	Oil
NUP211 E	92211 E	55	100	21	66	6000	7000	0.69
NUP211	92211	55	100	21	66.5	5000	6300	0.68
NUP212 E	92212 E	60	110	22	72	5300	6300	0.86
NUP212	92212	60	110	22	73	5000	6300	0.86
NUP213 E	92213 E	65	120	23	78.5	4800	5600	1.01
NUP213	92213	65	120	23	79.5	4500	5600	1.08
NUP214 E	92214 E	70	125	24	83.5	4500	5300	1.2
NUP214	92214	70	125	24	84.5	4300	5300	1.2
NUP215 E	92215 E	75	130	25	88.5	4500	5300	1.3
NUP215	92215	75	130	25	88.5	4000	5000	1.32
NUP216 E	92216 E	80	140	26	95.3	4000	4800	1.6
NUP216	92216	80	140	26	95	3800	4800	1.58

NUP2204 E		20	47	18	26.5	12000	16000	0.149
NUP2204		20	47	18	27	12000	16000	0.149
NUP2205 E	92505 E	25	52	18	31.5	11000	14000	0.168
NUP2205	92505	25	52	18	32	11000	14000	0.168
NUP2206 E	92506 E	30	62	20	37.5	8500	11000	0.268
NUP2206	92506	30	62	20	38.5	8500	11000	0.268
NUP2207 E	92507 E	35	72	23	44	7500	9500	0.414
NUP2207	92507	35	72	23	43.8	7500	9500	0.414
NUP2208 E	92508 E	40	80	23	49.5	7000	9000	0.507
NUP2208	92508	40	80	23	50	7000	9000	0.507
NUP2209 E	92509 E	45	85	23	54.5	6300	8000	0.55
NUP2209	92509	45	85	23	55	6300	8000	0.55
NUP2210 E	92510 E	50	90	23	59.5	6000	7500	0.59
NUP2210	92510	50	90	23	60.4	6000	7500	0.59
NUP2211 E	92511 E	55	100	25	66	5300	6700	0.81
NUP2211	92511	55	100	25	66.5	5300	6700	0.81
NUP2212 E	92512 E	60	110	28	72	5000	6300	1.12
NUP2212	92512	60	110	28	73	5000	6300	1.12
NUP2213 E	92513 E	65	120	31	78.5	4500	5600	1.48
NUP2213	92513	65	120	31	79.5	4500	5600	1.48
NUP2214 E	92514 E	70	125	31	83.5	4300	5300	1.56

Bore Size: 15-80mm

DesignationsOld specPrincipal Dimensions (mm)Speed ratings (rpm)Weight(kg)dDBFwGreaseOilNUP211 E92211 E551002166600070000.69NUP21192211551002166.5500063000.68NUP212 E92212 E601102272530063000.86NUP21292212601102273500063000.86NUP213 E92213 E651202378.5480056001.01NUP21392213651202379.5450056001.08NUP214 E92214 E701252483.5450053001.2NUP21492214701252484.5430053001.2NUP215 E92215 E751302588.5450053001.3NUP21592215751302588.5400050001.32NUP216 E92216 E801402695.3400048001.6NUP21692216801402695380048001.58
NUP2204 E
20471826.512000160000.149NUP2204
2047182712000160000.149NUP2205 E92505 E25521831.511000140000.168NUP2205925052552183211000140000.168NUP2206 E92506 E30622037.58500110000.268NUP22069250630622038.58500110000.268NUP2207 E92507 E35722344750095000.414NUP22079250735722343.8750095000.414NUP2208 E92508 E40802349.5700090000.507NUP22089250840802350700090000.507NUP2209 E92509 E45852354.5630080000.55NUP22099250945852355630080000.55NUP2210 E92510 E50902359.5600075000.59NUP22109251050902360.4600075000.59NUP2211 E92511 E551002566530067000.81NUP221192511551002566.5530067000.81NUP2212 E92512 E601102872500063001.12NUP221292512601102873500063001.12NUP2213 E92513 E651203178.5450056001.48NUP221392513651203179.5450056001.48NUP2214 E92514 E701253183.5430053001.56

Prod Model:	BC1-1623 BC1-1442B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Delivery:	Stock
Type:	Motorcycle Engine
Material:	Chrome Steel

IKC MACHINERY Bearing Co., Ltd. One of the largest bearings' Exporters, from China. Sales size diameter in the 5mm-1800mm, SKF Bearing, NSK Bearing, NTN Bearing, NACHI Bearing, IKO Bearing, THK Bearing, TIMKEN bearing. TWB bearing, ZWZ bearing, HRB bearing, FYH bearing, EZO bearing, NMB bearing, GPZ bearing,

Taper roller bearings

Deep groove ball bearings

Pillow block bearings

Spherical roller bearings

Spherical Roller Thrust Bearing

Self-aligning ball bearings

Agricultural bearings

Thrust ball bearings

Cylindrical roller bearings

Angular contact ball bearings

Needle roller bearings

Wheel hub bearings

Conveyor bearing

Spherical plain bearing

Plummer Block

Automotive Clutch Release Bearing

IKC Bearing Co., Ltd was founded in 1998, the registered capital of 2.53 million US dollars. IKC is a high-tech enterprise which is specialized in researching and manufacturing high common bearings. Since 1986, IKC has accumulated 20 years' Bearing innovation and production. During the 20 years, IKC persist with "quality first, innovation win, service first" as purpose; "The pursuit of perfect quality, create first-class brand" as management policy, promoting the brand strategy, continuously improving product quality and brand connotation. IKC always do as customer requirement, insisting on creating excellent products and providing first-calss service for our customers.
