Automotive Wheel Hub Bearings Dac25520037
Price: |
US $ 1-5/Piece |
Min Order: |
50/Piece |
Pay Type: |
L/C,T/T,D/P,Western Union |

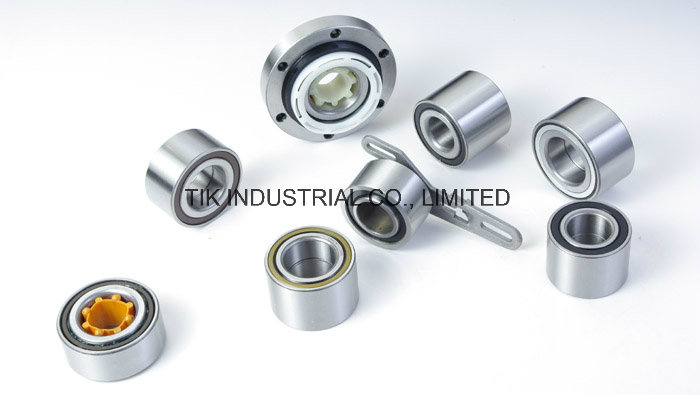

Wheel hub bearings are the key components of auto spare parts. The main function is to carry load and offer accurate guidance to rotation of wheel hubs. This requires that they shall not only carry axial load, but also carry radial load. Traditional wheel hub bearings are composed of two pieces of tapered roller bearings or angular contact ball bearings. The assembling, oiling, sealing and clearance adjusting are all finished at the auto production line. Such structure makes it difficult to assemble in the auto factory, thus with high cost and low reliability. Further, when the car is in maintenance, the bearings need to be washed, oiled and adjusted again. TIK can supply a wide range of wheel hub bearings. The bearings are widely applicable to the following cars: GMC, Volkswagen, Nissan, Opel, Fiat, Buick, Ford, Chevrolet, Oldsmobile, Pontiac, Dodge, Comanche Grand Cherokee, Jeep Grand Cherokee, Cadillac, Acura, BMW, Benz, Hyundai, Honda, Toyota, Mazda, Infiniti, Subaru, Chrysler, Mitsubishi, Isuzu, Daewoo, Kia, Volvo, Jetta, Citroen, Peugeot etc. Bearing No. | Boundary dimensions(mm) | Mass(Kg) |
TIK | SKF | | Other Co. | d | D | B | C | ≈ |
DAC255200206 | 617546A | | | 25 | 52 | 20.6 | 20.6 | 0.19 |
DAC25520037 | 445539A | | 566030 | 25 | 52 | 37 | 37 | 0.31 |
DAC27600050 | | | 513071 | 27 | 60 | 50 | 50 | 0.56 |
IR-8653 |
DAC30500020 | | | DE0678CS12 | 30 | 50 | 20 | 20 | |
DAC30540024 | | | DE0681CS16 | 30 | 54 | 24 | 24 | |
DAC30550030/25 | | | ATV-BB-2 | 30 | 55 | 30 | 25 | |
DAC30600337 | 633313C | 529891AB | B-81 | 30 | 60.03 | 37 | 37 | 0.42 |
545312 |
DAC30640042 | | | | 30 | 64 | 42 | 42 | 0.49 |
DAC34620037 | 309724B | 531910 | IR-8051 | 34 | 62 | 37 | 37 | 0.41 |
311316B | 561447 |
DAC34640037 | 309726 | 532066DE | B-35 | 34 | 64 | 37 | 37 | 0.43 |
540466B |
DAC34660037 | 636114A | 580400CA | IR-8622 | 34 | 66 | 37 | 37 | 0.5 |
DAC35640037 | | | 510014 | 35 | 64 | 37 | 37 | 0.41 |
DAC35650035 | 443952EA | 546238A | IR-8042 | 35 | 65 | 35 | 35 | 0.4 |
DAC35660032 | 445980BA | | IR-8091 | 35 | 66 | 32 | 32 | 0.42 |
DAC35660033 | 633676 | | IR-8089 | 35 | 66 | 33 | 33 | 0.43 |
DAC35660037 | 311309 | 546238 | IR-8065 | 35 | 66 | 37 | 37 | 0.48 |
544307 |
DAC35680037 | 633295 | 567918B | B-33 | 35 | 68 | 37 | 37 | 0.52 |
633528 | 541153A |
633967 | |
DAC35680233/30 | | | DAC3568W-6 | 35 | 68.02 | 33 | 30 | 0.47 |
DAC35720028 | 441832AB | | IR-8028 | 35 | 72 | 28 | 28 | 0.48 |
DAC35720033 | 446762 | 548083 | IR-8055 | 35 | 72 | 33 | 33 | 0.58 |
445535 |
DAC35720034 | | | B36 | 35 | 72 | 34 | 34 | 0.58 |
DAC35720233/31 | | | DAC357233B-1W | 35 | 72.02 | 33 | 31 | 0.56 |
DAC35720433 | 633669 | | IR-8094 | 35 | 72.04 | 33 | 33 | 0.58 |
DAC35720434 | | | | 35 | 72.04 | 34 | 34 | 0.58 |
DAC36720534 | | | B32 | 36 | 72.05 | 34 | 34 | 0.58 |
DAC36760029/27 | | | DE0769 | 36 | 76 | 29 | 27 | |
DAC37720037 | 633541B | 562398A | | 37 | 72 | 37 | 37 | 0.59 |
DAC37720437 | 633028 | 562398 | | 37 | 72.04 | 37 | 37 | 0.59 |
DAC37740045 | 309946AC | 541521C | IR8513IR-8049 | 37 | 74 | 45 | 45 | 0.79 |
DAC38720436/33 | | | 51007 | 37.99 | 72.04 | 36 | 33 | 0.54 |
DAC3872W-3 |
DAC38740236/33 | | | DAC3874W | 37.99 | 74.02 | 36 | 33 | 0.58 |
DAC38700038 | | | 510012 | 38 | 70 | 38 | 38 | 0.55 |
DAC38720440 | | | DE0871 | 38 | 72.04 | 40 | 40 | |
DAC38740036/33 | | | 514002 | 38 | 74 | 36 | 33 | |
DAC38740450 | 559912 | | 51008 | 38 | 74.04 | 50 | 50 | 0.85 |
DAC39680037 | 311315DB | 540733 | B38 | 39 | 68 | 37 | 37 | 0.48 |
309692 | 528810 |
DAC39680637 | 311315BD | | | 39 | 68.06 | 37 | 37 | 0.48 |
DAC39720037 | 311396 | 542186A | B83A | 39 | 72 | 37 | 37 | 0.56 |
309639 |
DAC39720637 | | 542186CA | | 39 | 72.06 | 37 | 37 | 0.56 |
DAC39740039 | | | | 39 | 74 | 39 | 39 | 0.66 |
DAC39/41750037 | 633815A | 567447B | | 39/41 | 75 | 37 | 37 | 0.62 |
DAC40720037 | 311443B | 566719B | | 40 | 72 | 37 | 37 | 0.55 |
DAC40720737 | | | 51004 | 40 | 72.07 | 37 | 37 | 0.55 |
DAC40740036/34 | | | DAC4074BW | 40 | 74 | 36 | 34 | 0.58 |
DAC40740540 | | | DE08A27 | 40 | 74.05 | 40 | 40 | |
DAC40750037 | 633966E | | | 40 | 75 | 37 | 37 | 0.62 |
DAC40760033/28 | 474743 | 539166AB | B39 | 40 | 76 | 33 | 28 | 0.54 |
DAC40760441/38 | | | DE0891 | 40 | 76.04 | 41 | 38 | |
DAC408000302 | 440320H | 523854 | | 40 | 80 | 30.2 | 30.2 | |
565636 |
DAC40800036/34 | | | 513036 | 40 | 80 | 36 | 34 | 0.74 |
DAC40820040 | | | | 40 | 82 | 40 | 40 | |
DAC40840338 | | | IR-8638 | 40 | 84.025 | 38 | 38 | 0.97 |
DAC42750037 | 633457 | 533953 | 513102 | 42 | 75 | 37 | 37 | 0.59 |
311424 | 545495D | 513112 |
309245 | 521771 | 513106 |
633196 | | |
DAC42750737 | 633791 | | | 42 | 75.07 | 37 | 37 | |
DAC42760038/35 | | | IR-8650 | 42 | 76 | 38 | 35 | |
DAC42760039 | | | 513058 | 42 | 76 | 39 | 39 | 0.62 |
DAC42760040/37 | 909042 | 547059A | 513006 | 42 | 76 | 40 | 37 | 0.64 |
309798 |
DAC42800036/34 | | | MV4280 | 42 | 80 | 36 | 34 | 0.72 |
DAC42800045 | | | DAC428045BW | 42 | 80 | 45 | 45 | 0.85 |
DAC42800342 | 309609AD | 527243C | DAC4280B | 42 | 80.03 | 42 | 42 | 0.81 |
305988 |
DAC42820036 | 446047 | 561481 | 513073 | 42 | 82 | 36 | 36 | 0.77 |
588226 |
DAC42820037 | 311413A | 565636 | IR-8090 | 42 | 82 | 37 | 37 | 0.79 |
DAC42840036 | 444090 | 564727 | 513151 | 42 | 84 | 36 | 36 | |
DAC42840039 | 440090 | 543359B | IR-8101 | 42 | 84 | 39 | 39 | 0.93 |
DAC42840236 | 444090AB | | | 42 | 84.02 | 36 | 36 | |
DAC43/45820037 | 633814A | 567519A | IR-8506 | 43/45 | 82 | 37 | 37 | 0.76 |
DAC45800045 | | 564725AB | | 45 | 80 | 45 | 45 | 0.78 |
DAC45840239 | | | 513130 | 45 | 84.02 | 39 | 39 | |
DAC45850041 | | 580191 | | 45 | 85 | 41 | 41 | 0.89 |
DAC49880046 | | | | 49 | 88 | 46 | 46 | |
DAC50900034 | 633007C | 528514 | DE1021 | 50 | 90 | 34 | 34 | 0.82 |
DAC50900035 | | | | 50 | 90 | 35 | 35 | |
Prod Model: |
DAC25520037 |
Type: |
Wheel Hub Bearing |
Material: |
Chrome Steel |
Tolerance: |
P0 |
Certification: |
ISO9001 |
Clearance: |
C0 |
ABS: |
Without ABS |
Brand: |
Tik |
TIK Bearing Manufacturing Co., Ltd (TIK Industrial Co., Limited) is a professional bearing manufacturer in China. Founded in 1995, it is located in Meishan of Sichuan Province, covering an area of more than 30, 000 square meters, with more than 400 workers and technicians. It has a wealth of technical expertise in manufacturing various ball and roller bearings. Its automatic bearing production lines are of most advanced level both home and abroad, and produce 10 million pieces of bearings annually. We inspect bearing's quality to ensure them performing exactly as specified. That is the reason for our continuing growth and success. In 2006 we established our marketing company TIK Industrial Co., Limited. By means of its premium quality and reasonable prices, up to now, our bearings had been exported to more than thirty countries worldwide and are warmly welcomed.
The manufacturing capacity of TIK ranges from small bearings with inner diameter of 2mm to large bearings with outer diameter of 1000mm. In addition to standard products, TIK can also supply non-standard and modified standard products for special application. TIK has its own trade mark "TIK". Meanwhile, it can also provide OEM service.
All producing processes, such as forging, turning, heat treating, grinding, assembly and packing, are finished in our manufactory. That is why we can provide you precision ball and roller bearings at the lowest possible prices and meet delivery on time. As an ISO9001: 2008 certified manufacturer, we had established product traceability system. Besides, TIK has a strong technological team to solve various problems in application and use of our bearings.
