Company IntroductionFounded in 1984, FULONG is a national high-tech enterprise now and ISO9001, TS16949 certified. With national lab and municipal innovation center, we made over ten national and trading standards. What's more, 30,000 square meters were expanded to build several automatic production lines in automotive timing belt and PK belt, which guarantee the OEM quality.
Rubber MaterialBelt uses the Japanese imported high quality synthetic neoprene, and matches in a variety of different USES of rubber materials; Skeleton material for high quality polyester hard cord; Take back attached to different kinds of cloth to do protection.
And Raw-edged V belt compared with wrapped V belt, the bottom profile can reduce quantity of heat accumulation or stress concentration, prolong the belt life, running at high speed in only a small change.
Joint v belt has good integrity, with various stress uniform smooth operation load transmission high use to jitter and turn with suitable for pulsating load and impact vibration.
Note: We can supply belts as clients sample or designated specification.
Product Description | TYPE | SUPPLY CHARACTERISTIC |
Y Z A B C D SPZ SPA SPB SPC 3V(9N) 5V(15N) 8V(25N)
Banded V-Belts:3V 5V 8V | 1. Mold limitation ,is not suitable for many kinds of little batch production.
2. The service life of the product is generally up to 3-50000 kilometers.
3. Single specification minimum order quantity, at least for one sleeve of the number of nature. |

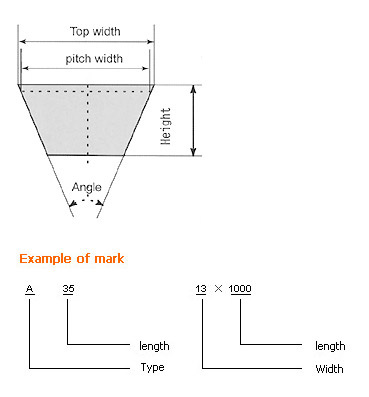

Type | Top Width | Pitch Width | Height | Angle | Common V belt | Y | 6 | 5.3 | 4 | 40 | z | 10 | 8.5 | 6 | 40 | A | 13 | 11 | 8 | 40 | B | 17 | 14 | 11 | 40 | C | 22 | 19 | 14 | 40 | D | 32 | 27 | 19 | 40 | E | 38 | 32 | 23 | 40 | Narrow V belt | SPZ | 10 | 8 | 8 | 40 | SPA | 13 | 11 | 10 | 40 | SPB | 17 | 14 | 14 | 40 | SPC | 22 | 19 | 18 | 40 | 3V(9N) | 9.5 | 8.5 | 8 | 40 | 5V(15N) | 16 | 14.3 | 13.5 | 40 | 8V(25N) | 25.4 | 23.7 | 23 | 40 |
|

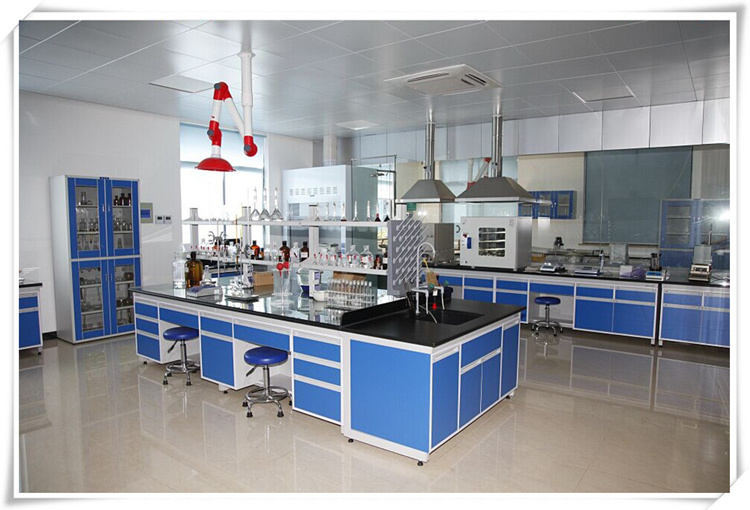

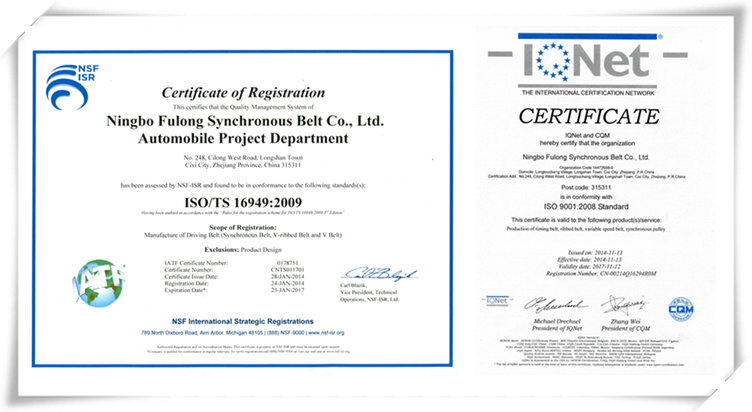

National Lab & Certificate

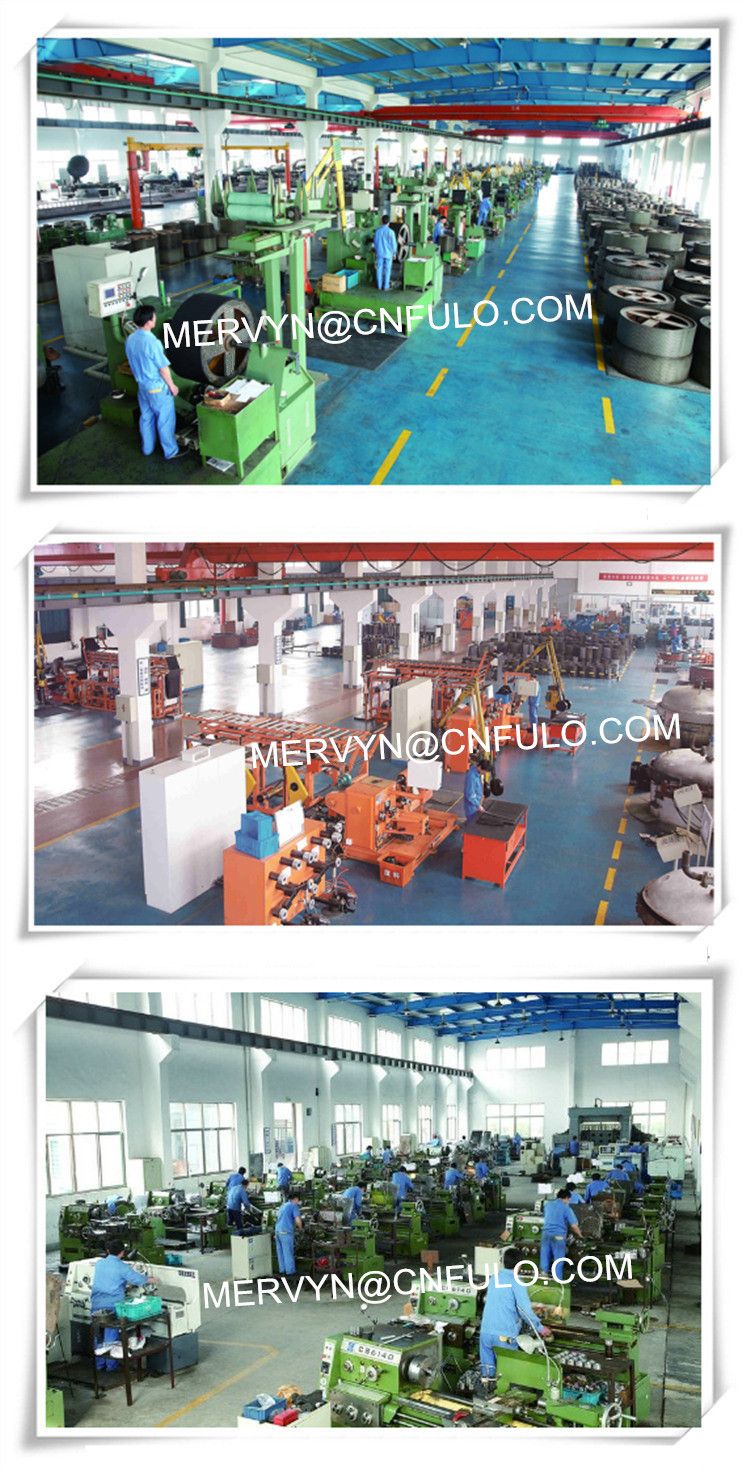

Workshop
Packing and Shipment Service
Contact
Export Department
Sales Manager
Mr. Mervyn CHOU
Web: http://www.cnfulo.com
Tel:0086 (0)574-6378-7729
Fax:0086 (0)574-6378-0109
Ph:0086 135-6606-2254
Add: NO.300, Cilong West rd. Longshan Town, Cixi, Ningbo City, Zhejiang Province, China,315311
Our company was founded in 1984. We have specialized in industrial rubber timing belts, automotive timing belts, variable-speed belts, poly-V belts,
Double-sided timing belts, cutting V-belts, flat belts and pulley with Fulong
Brand. And timing belt and pulley have passed national technical appraisal since 1987. It is currently specialized enterprise in manufacturing timing belt
Series with widest scope, most complete variety and best quality in China.
And yearly production capacity is 8 million all kinds of driving belts and 400 thousand pulley. The products are sold to 30 provinces and thousands of
Companies in domestic, and export to Southeast Asia, Middle East, America,
Japan and other regions. In order to extend our sales and open the marke,
Ningbo Fulong have opened the sales center at Shanghai (Shanghai Fulong Synchronous Belt Co., Ltd) and branched companies at Beijing & Guangzhou
City. We will use Shanghai big city visualize to meet different parts customers
The company covers an area of 45, 000 square meters and the fixed asset is RMB 120million. We have about 500 employee, included 80 technologies and 18 technical experts hired from abroad The company has advanced production equipments, some kinds of testing equipments and instruments. In recent years, we have invested 50 million RMB on a large scale of technical renovation, purchase a number of advanced production and testing equipments and all of
Our main materials are imported from abroad, in order to improve the production capacity, technical level and quality of products.
The company is the national medium-sized enterprise and wins provincial "High-tech Enterprise", "Excellent Enterprise of Technological Progress", "Spark Model Enterprise" and "Management Model Enterprise". Our measuring and archives management are Secondary to the nation, and our credit rating is AAA enterprise.
According to the customers' product technical requirements, our technologies,
On the premise to provide clients with high quality products, we have
Formed a set of perfect and controllable management system from raw materials to finished product output. In order to ensure product quality and long-term stability, we have done the follow works.
