Automobile Turbo Test Bench for Trucks, Cars
| Price: |
US $ 9000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
QZY-2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power: |
380V 50Hz |
| Motor Power: |
7.5kw |
| Update Method: |
by Hard Disk |
| Certification: |
ISO |
Product Description

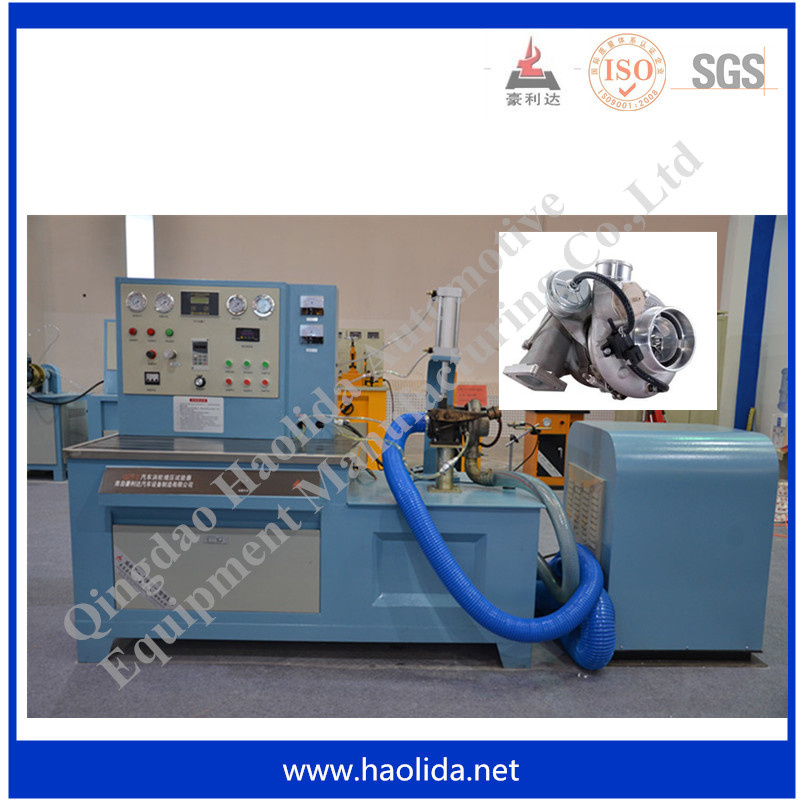

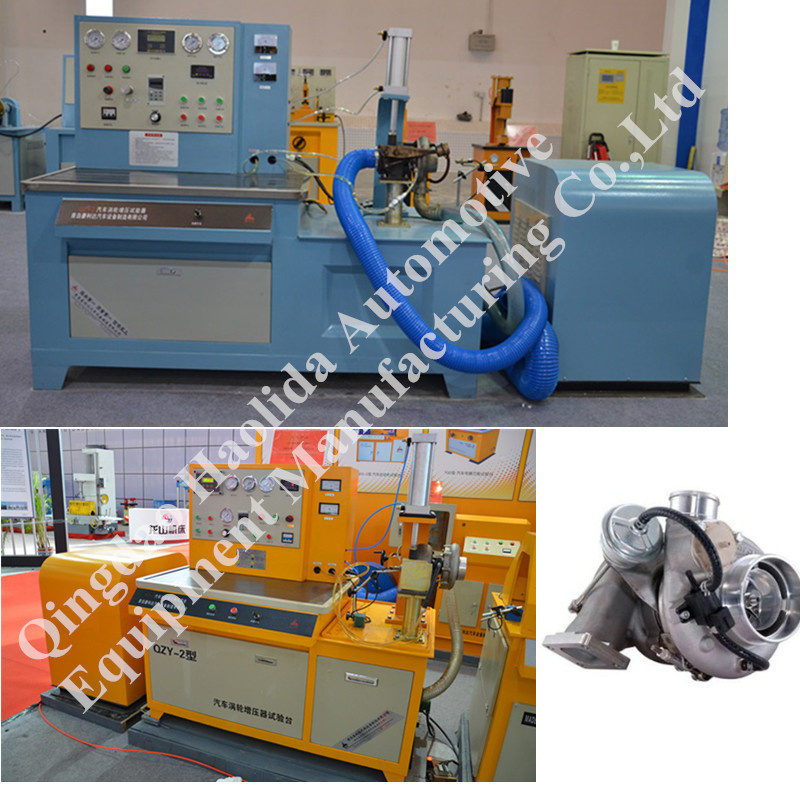

QZY-2 Model Automobile Turbo Test Bench
1.Function Introduction
Automobile turbo test bench is applicable for testing performance of turbocharger on various models truck engines and can carry out dynamic test of boost pressure, air flow and lubrication of turbocharger and display measured data by digital instrument.
This test bench can carry out contrast test of inlet & outlet air pressure difference of various turbochargers and read the values
It can be matched with computer to process data, display on the computer, store & print test results and wave form curve and achieve dynamic test of various models turbochargers.
2.Technical Parameter
Power: AC AC380V 50HZ (made to Measure)
Power of airflow generator: 5.5KW (made to order)
Frequency converter: 7.5KW
RPM of airflow generator: 0--20000r/min(If it requires high speed, it will be customized.)
Maximum air pressure of airflow generator: 5KPa
Maximum flow of of airflow generator: 1500cbm/h
Power of oil pump: 750W
Rated pressure of oil pump: 0.3Mpa
Maximum displacement of oil pump: 15L/min
MOQ: 1 set
Panel: English
Delivery time : 35days
Payment term:
T/T 50% in advance,50% before delivery
Packing size:
Export Plywood case
1850x1050x1600mm=3.11CBM
890x700x1040mm=0.65CBM
Total is 3.76CBM
N.W: 260KGS
G.W: 380KGS
Established in 1984, Qingdao Haolida Automotive Equipment Manufacturing Co., Ltd is a professional manufacturer and exporter that is concerned with the design, development and production of automobile maintenance and test equipment. We obtained tens of national patent on some related products. Our main products are automobile test benches, such as electric universal test bench, alternator/generator test bench, starter test bench, engine test bench, turbocharger test bench, air compressor test bench, braking system test bench, steering gear and power pump test bench, AC compressor test bench, clutch test bench, automatic gearbox/transmission test bench, etc, brake shoe riveting and grinding machines, electric/ manual hydraulic presses, auto pit jack/lift, and so on. We can also design and make specially according to customers' request.
We are located in Qingdao city, Shandong province, with convenient transportation access. Our factory is thirty minutes' drive to Qingdao airport, and two hours' drive to the loading port.
All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world. We have passed the ISO9001-2008 international quality system authentication. We gained many honors in automobile maintenance and repair industry, we are a standing member of the China Automobile Maintenance and Repairing Equipment Trade Association, One of the ten most influential company in automobile maintenance and repair industry, we are also a designated factory by General Armament Department of CPLA.
Our well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfaction. Our sales network covers North America, South America, European, South Africa, Russia, Asia, Middle East, etc.
If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are also sincerely looking for steady and long-term cooperative local agents in different areas. We are looking forward to forming successful business relationships with new clients around the world in the near future.
