Automobile Frame Correcting Equipment

Name: Automobile Frame Correcting Equipment
Brand: ibuyautoparts.com
SKU: 725469942
Availability: InStock
Rating: 4.5 (110 reviews)

Price:	US $ 3388.2352/Piece
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

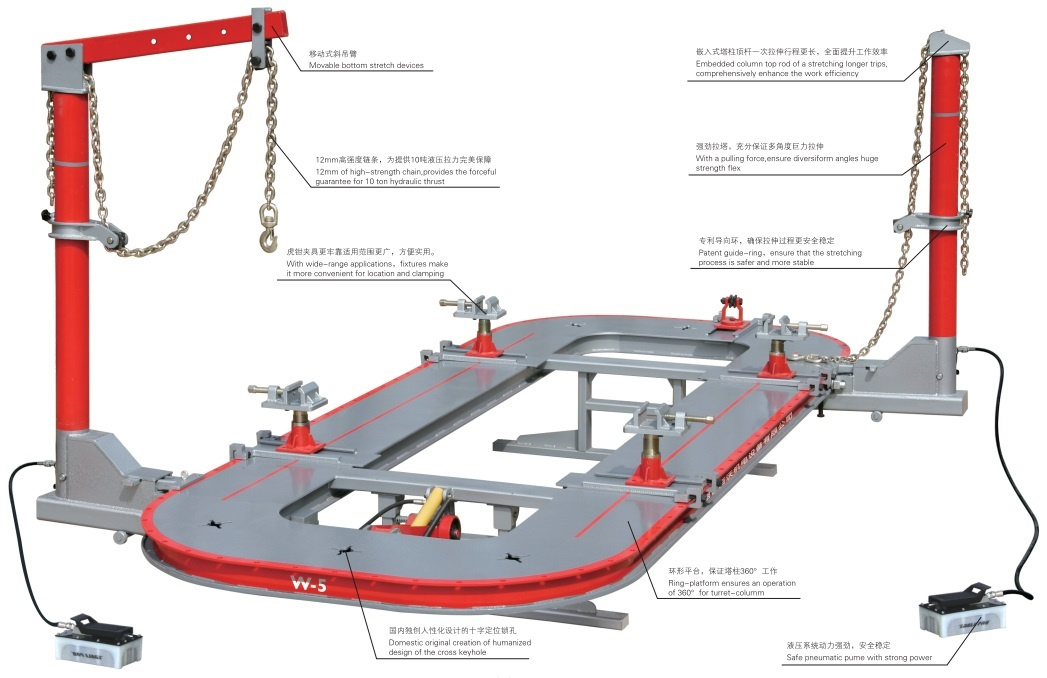

Technical parameters: M-3A
1. Hydraulic tilt lift platform can make any accident car more convenient, get off.
2. Platform by a large CNC process of a molding, between the upper and lower board between the sheet metal to ensure the tensile strength of the platform. Beautiful and generous ring mesh platform, higher flatness, longer life, the best aspect ratio, allowing you to use a wider, more targeted.
3. Double pull tower can be done along the table track 360 ° rotation, the operation more convenient and effort. Double pull tower on the pull strong and efficient.
4. Mechanical streamlined design of the fixture, over forging, heat treatment, high strength and long service life, almost considered any deformation correction.
5. Universal wide mouth clamp, the body of the bottom of the beam and other components can be fixed and clamping the body of the various components of the clamping.
6. Embedded tower stem with a hidden hydraulic jack, powerful, priority to consider the maintenance of the disassembly.
7. A full range of sheet metal tool accessories to consider the deformation of any shape correction, correction can be more in place, more convenient and faster.
8. Hydraulic pump with pneumatic pump or by the United States POWER TEAM company.

Table Length	5400mm
Table Width	2000mm
Table Height	560mm
Hydraulic Pressure	70Mpa
Post Working Range	360°
Post Max.tension	95KN
Max.lifting	3500kg

Prod Model:	FOSTAR-M3A
Certification:	ISO

Zhuhai fostar Machinery Equipment Co., Ltd. is a company engaged in Vienna motor repair testing equipment manufacturing and marketing enterprise, company is equipped with a number of professional and technical class talent, to normal force in the development and production of high-tech products, the establishment of enterprises and improve the management system; And has passed the ISO9001 quality management system certification; Is dedicated to the earliest vehicle diagnosis, detection and maintenance products R & D, production and sales in one of the high-tech enterprises. At present, the main products are brand fushida 3D four wheel aligner, fostar machinery and equipment's has four major brands of 3D four wheel aligner, FOSTAR (fushida) is, ZHZY (hawk), ZHZF (War), ZHTK (tank), and automatic tire dismounting machine, tyre balancing machine series of high-tech products. Products are sold both at home and abroad and at home have good network system of domestic market, products are exported to Russia, Canada, the United States, Australia, Brazil, Germany, Italy, is currently expanding domestic and international markets.
