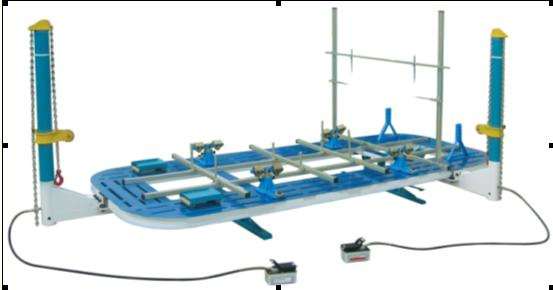

Automobile Collision Repair Equipment (HC1600)

HC1600 is the new generation of advanced type of car body repairing system that the Union company has developed. It adheres and combines the advantages of both the foreign and domestic body repairing systems, making the product easy to be handled and to be high-efficiency. With its good performance and reasonable price, HC1600 has become the first choice of many car repairing factories both the foreign and domestic.

1. High-precision working bench, provides you a multi-use working bench.
2. The working-bench goes from one side, the height is adjustable according to the need for repairing among 300-560mm. It is more convenient for the vehicle to put on the shelf.
3. Movable hydraulic pressure drawing-tower, can work along working bench 360 degree, has powerful pulling force. The unique way of the drawing tower fixture is convenient and reliable.
4. Load adjustable common jigs, three-dimension adjustable, can meet the demand of the fixture of all types of cars that is out of shape.
5. The three-dimension mechanical measuring system can be easily used to accomplish the measuring requirements. The measuring can be accurate to be around 3 millimeters.
6. Mechanics streamline design complementing jigs meets all kinds of repairs for types of automotives.
7. Movable secondary-lifting ensure the getting on the vehicle and repairing more convenient and swifter.
8. Imported hydraulic pump from U. S. A, with its reliable performance, long performance life, allocating top and bottom draw device, in order to realize the omni-direction of drawing and operating for the vehicle.
9. The global simultaneous car-body database, ensure the providing of the latest and fastest car-body data.

Technical parameters:
Platform Length: 5200mm
Platform Width: 2000mm
Platform Height: 560mm
Hydraulic Pressure: 70MPa(10000psi)
Post Max. Tension: 95KN
Post Working Range: 360 degree
Pneumatic Pressure: 0.8MPa
Max. Lifting Weight: 3000kg
Total Weight: 3000kg
