Automative Paint Spray Booth
| Price: |
US $ 13000-14000set |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
1set |
| Pay Type: |
T/T |
| Prod Model: |
BY-6 |
| Brand: |
Baoyues |
| Inside Dimension: |
6900*3900*2650 Mm |
| Function: |
Baking and Painting |
| Design: |
European Design |
| Heating Mode: |
Diesel |
| Certification: |
CE |
Product Description

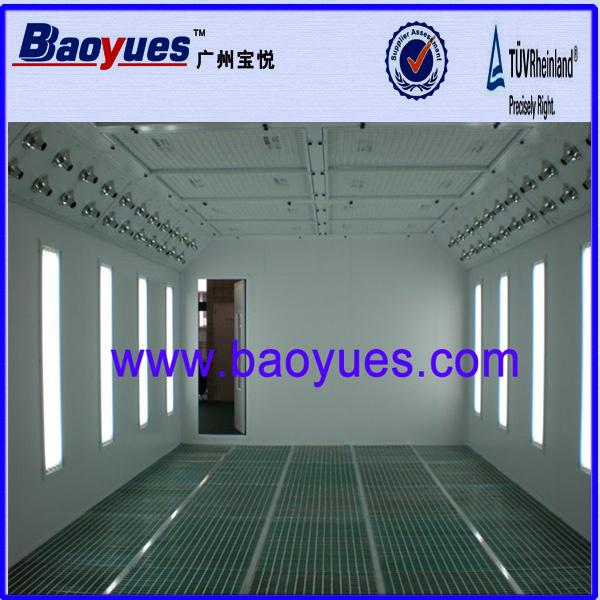

Luxurious Spray Booth BY-6
(1) Unique European designs and competitive prices;
(2) CE approved high quality;
(3) High efficency to save energy and protect enviroment;
(4) Low noise and low pollution;
(5) With water-borne paint system.
Detail show
Manufacturing Process
Certificate
Inside dimension | 6900×3900×2700 mm(L×W×H) |
| Outside dimension | 7000×5600×3500 mm(L×W×H) |
| Front door | Folding door, 3 folds, 3000×2600 mm(W×H), without frame cover, square glass windows, colour : blue |
| Emergency door | 1 unit, 800×2000mm(W×H), colour: white |
| Basement | Galvanized steel assemble, 300mm high, quadrate steel support, with adjustable bolt, full grilles made by flat bar and twisted steel, galvanized. 3 ramps , 900×2000mm/pc. |
| Wall Panels | Thickness:50mm, width:1150mm,tongue and groove structure, 0.476mm colour steel with PU insulation inside, colour: white. |
| Light | Ceiling Lights: 8Units×2Pcs=16Pcs×58W, Side Lights: 10Units×4Pcs=40Pcs×58W, with electronic ballasts, tri-phosphor Philips light tube, Illuminate: ≥1000LUX |
| Generator cabinet | Intake from side upper, exhaust from back upper, aluminium alloy frame; white coated steel covered, filled with heat preservation material inside. |
| Intake and Exhaust system | Inlet: 2×4KW double-intake centrifugalfans, belt drive, model TAE-400H,total air capacity: 25000m 3 /h. |
| Outlet: 1×7.5KW double-intake centrifugalfan, belt drive, model TAE-560H, air capacity: 24000m 3 /h. |
| Heating system | RIELLO RG5S diesel burner, stainless steel heat exchanger, pneumatic damper actuates from spraying to baking cycle. Max. heating productivity: 26000kcal/h, Max temperature: 80 degree. |
| Purification system | Pre-filter, ceiling filter, fibreglass filter, cylindrical activated carbon filter |
| Water-borne paint system | With water-borne paint system on the both sides of ceiling, stainless steel nozzle, 4 units 0.77KW centrifugal fan, total air quantity: 13400 m 3 /h |
| Roof | Galvanized steel |
| Control system | Spraying, heat spraying, time setting, lighting switch, failure indicator, thermostat, power supply switch, water-borne paint system switch, emergency stop, all motors are normal start. |
| Total power | 22.5KW |
Baoyue started since 2011, the company specilize in the design, manufacture and sale for auto spray/backing booth, industry painting equipment, high temperature drying plant, The products with international design standard, latest manufacture technology. The engineer, factory director, manager, sales director etc all engaged in this industry more than 15 year.
As a professional manufacturer, we have rich experience, supply all kinds of good quality spray booth, prep station and car lift etc, with the certificate of CE, ISO, SGS, CCS etc. Factory located Guangzhou, Huadu district, which is modern car industry production park, have convenient transport facilities. The area for working and manufacturing more than 19, 000, staff more than 90, including the techinican team more than 9, after service team more than 10. The workshop including many cutting machine, pumting machine, bending machine, welding machine etc, with water curtain paint booth, powder coating booth, high temperature oven.
We have attended Automechanika Shanghai 2012, 2013, 2014, 2015, 2016, and Beijing exhibition 2012, 2013, 2014, 2015, with large confidence to show our spray booth.
We wish to establish the good cooperation relationship with you, not for once or twice, but for the long term cooperation, looking forward to developing together with you in the near future. The paint booth and widely used for car, bus, truck, machine, furniture and other industry, already exported to EU, Middle East, Asia, Africa, Australia etc, and serviced BMW, Honda, Audi, Nissan, Benz, Honda, Toyota, etc, as well as the air plane company, Army, and bus manufacturer, furniture manufacturer.
