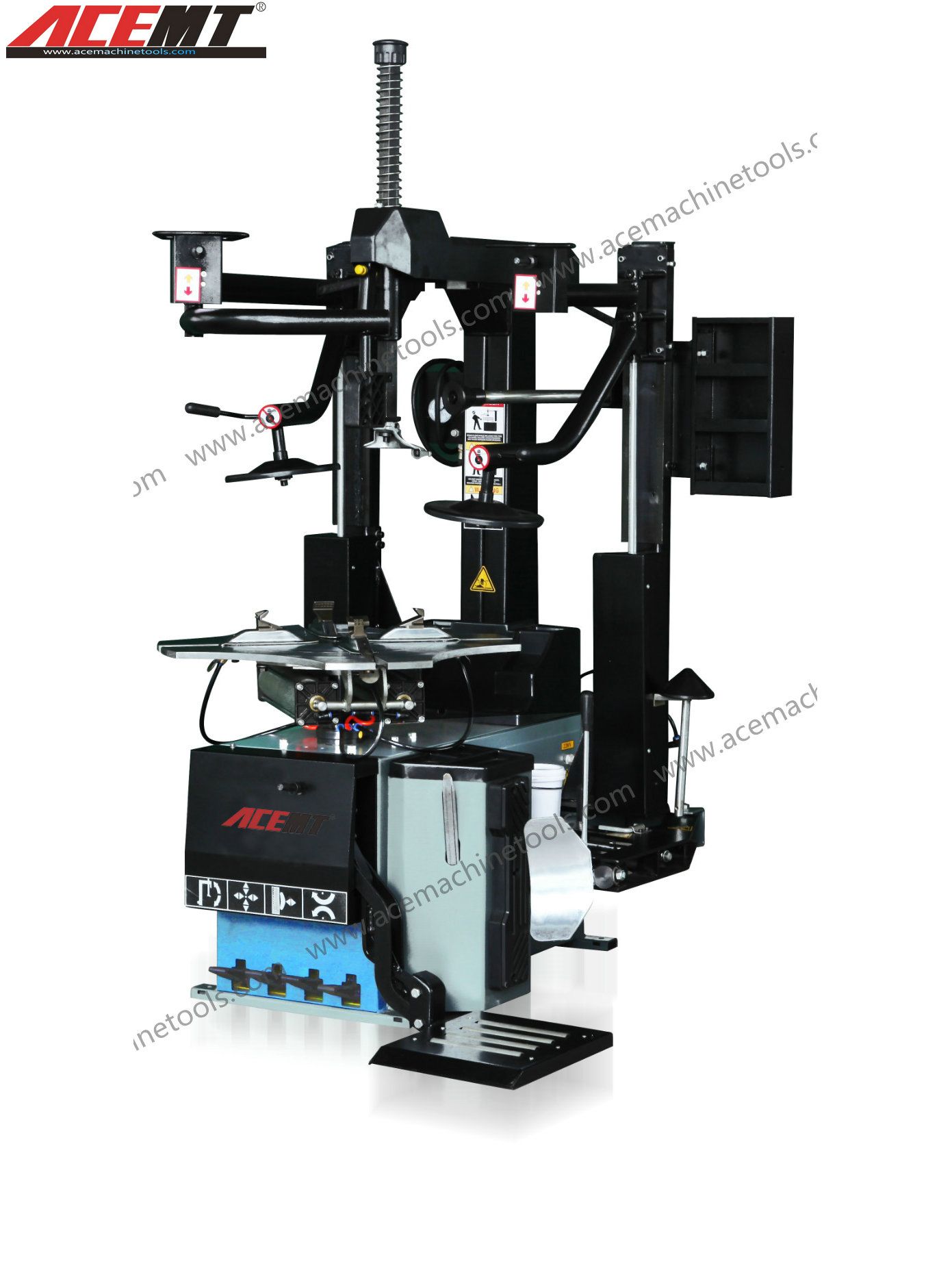

Automatic Racing Tyre Changer(LYT-2824AC+AL410+AR410+WL65)
Automatic Racing Tyre Changer(LYT-2824AC+AL410+AR410+WL65)
Automatic Racing Tyre Changer(LYT-2824AC+AL410+AR410+WL65)
THE PRODUCT:
LYT-2824AC+AL410+AR410+WL65 is the full-automatic tyre changer with luxury configure,push-pull horizontal arm,tilt back vertical arm,equipped with assistant inflating device and double helper AL410+AR410,and TYRE LIFTING DEVICE WL65,make the opreration time saving,safe and easy, it is specially suitable for wide,low-profile,stiff and tubeless tyres.the quality is reliable,suitable for large tyre repair shop.4Sshop,transport team,tyre factory and so on.
FEATURES:
1,Hexangular shaft used S41mm Steel,not easy to distort,ensure the operation of low-profile and stiff tyre more safety.
2,The turetable,use $15mm Steel,the surface of the turnatable is chromeplated,wearable and antisepticised.
3,The mounting head,used alloy material,ensure the intensity.
4,This machine equipped with the protection cover for the mounting head,clamps.lever and bead breaker shoe,to avoid the damage for the aluminum alloy rim.
5,The range for the clamping is large,suitable for the middle and small truck tyres and car tyres.
6,The inflating system adopt gauge box,equipped with rubber inflating hose,ensure long working time and safety operation.
7,This machine woth "C"configure,"C"means tubeless tyre inflating device,make the edge of the tubeless tyre connect tightly with the rim,avoid the leakage when inflating.
8,This model can upgrade,the luxury helper AL410+AR410 with rail-style slideway are optional according to customer's demand,can make the operation easy.
9,Equipped with tyre lifting device WL65,make the operation easy.it is easy to lift and low the tyre,only by pressing the WL65 control button.
10,The wearable steel plae on the turnable can reduce the wear for the turntable during the clamping.prolong the working time for the turntable.
11,The pneumatic bead breaker shoe have two positions,easy for the extra woed tyre.
12,The rotatable bead breaker shoe,suitable for different tyres,with different diameter and different center high.
13,Full-automatic tyre changer with push-pull horizonatal arm and tilt back vertical arm,pneumatic locking,instead of semi-automatic and manual locking method,improve the working efficiency.
| TECHNICAL DATA: | |
| Motor power | 1.1kw/0.75kw |
| Power supply | 100v/110v/200-3ph/220v/230v/389v-3ph/415v-3ph |
| Operation pressure | 8-10bar |
| Max.wheel dia | 47"(1200mm) |
| Max.wheel width | 16"(410mm) |
| Rim clamping from outside | 13"-24" |
| Rim clamping from inside | 15"-28" |
| Balancing cycle | 2500kg |
| Noise | <70db |
