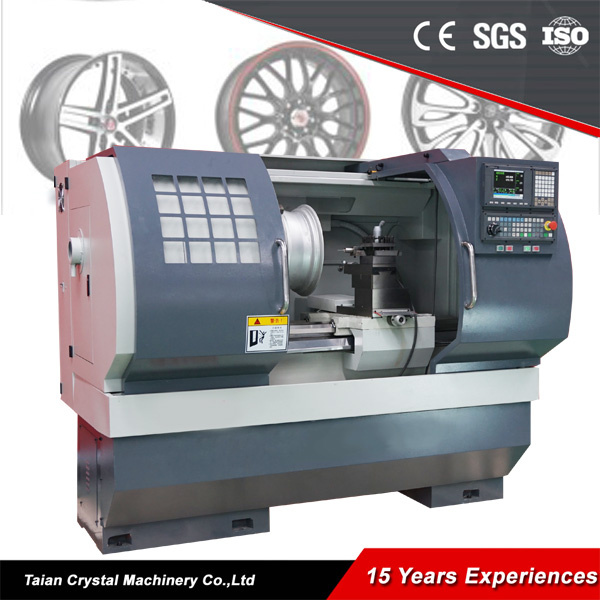

Automatic Probe Large Diameter Alloy Wheel Repair Equipment Price (AWR2840)

Name: Automatic Probe Large Diameter Alloy Wheel Repair Equipment Price (AWR2840)
Brand: ibuyautoparts.com
SKU: 698331202
Availability: InStock
Rating: 4.8 (21 reviews)

Price:	US $ 15000/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Automatic Probe Large Diameter Alloy Wheel Repair Equipment Price (AWR2840 )

Specification:

Supply repairing Alloy wheel up to Max 27"
Automated self plotting Digitization by Probe System
Easy Operate
CE Certification
Free Training video
7x24 hours email or telephone technology supply

Standard Configuration:

SYNTEC 6TA CNC control system
Touch Probe system
Automatic electronic pump lubrication
Manual 3-jaw soft chuck of 10'

ITEMS	AWR2840
Max. swig over bed (mm)(inch)	Φ720(28')
Max. Size of alloy wheel (inch)	27'
Max. swig over cross slide (mm)	Φ540
Cross slide travel (mm)	350
Width of the rail (mm)	330
Length of the rail (mm)	1320
Size of the three-jaw chuck (inch)	12'
Range of spindle speed (RPM)	50~2000
Spindle speed control	Automatic
Spindle bore (mm)	Φ60
Taper of spindle bore	MT6
Taper of spindle nose	A2-6
Max. size of tool post	25×25mm
Stations of tool carrier	4 position
Min. setting unit of motor	(Z) long 0.001mm, (X) cross 0.001mm
Moving speed of post	(Z) long 8m/min, (X) cross 6m/min
Motor power	7.5KW
Machine base	Whole cast iron base
Machine size(L×W×H) (mm³)	2300×1750×1950
Net weight	2600kg

Prod Model:	AWR2840
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
CNC System:	Syntec
Repairing Alloy Wheel:	Max 27"
Max. Swig Over Bed:	720mm
Max. Swig Over Cross Slide:	540mm
Cross Slide Travel:	350mm
Size Of The Three-Jaw Chuck:	10'
Range Of Spindle Speed:	50-2000rpm
Spindle Bore:	60mm
Stations Of Tool Carrier:	4 Position
Net Weight:	1850kgs

Taian Crystal Machinery Co., Ltd., is a modern and high- tech company which is a professional manufacturer of CNC machining Center, CNC Lathe Machine, Wheel Lathe machine With 5, 000sqm workshops and offices, we have more than 15 years experiences in CNC machine research and production. Our machines have been exported more than 40 countries. We welcome all customers and friends to come to our company!

Our team have great experience on manufacturing and exporting. Our service department has experienced technicians that can offer you answers to your technical questions, and in many cases, solve your problem effectively over the phone.

We are dedicated to provide customers with the best, highly value added machines. We have earned a strong reputation in design and manufacturing of a wide variety of CNC machine tools. We continuously improve the performance level of our machines, strengthen our quality control system, and offer worldwide support services. Our dedication to the global marketplace will create a new era of CNC machine tools.

Furthermore, we are serious about quality, customer input, and reacting to market demands. Our fully equipped quality control department performs the final inspection of the machine and in process inspection of parts. Our quality control personnel are well trained to conduct rigorous inspections by using precision, sophisticated instruments. We deeply believe that quality is the life of our company and customer service is the power that drives our company forward. We are also looking for cooperation with professional dealers in the world. This would make us to create a new opportunity in certain area and offer top service quality as we have in China.
